Level Measurement For Machinery, Hydraulic Oil And Coolant Tanks
Machinery and industrial equipment require reliable level measurement for hydraulic oil tanks, lubricating oil systems, coolant tanks, compressor oil tanks, cooling water vessels and process fluid reservoirs. SHAO provides level measurement solutions for equipment protection, pump control, low-level alarm, overflow prevention and stable machine operation.
Why Level Measurement Matters In Machinery And Equipment
Hydraulic oil, lubricating oil and coolant levels directly affect equipment safety, production stability and maintenance cost. Low fluid level may cause pump dry running, overheating, unstable pressure, poor lubrication or machine shutdown. Overfilling may lead to leakage, contamination and unnecessary material loss. A suitable level measurement solution helps operators monitor tank status, protect equipment and maintain stable operation.
Typical Media And Equipment Conditions
SHAO level measurement solutions can support hydraulic systems, lubrication stations, machine tool coolant tanks, compressor systems, cooling equipment and industrial process machinery.

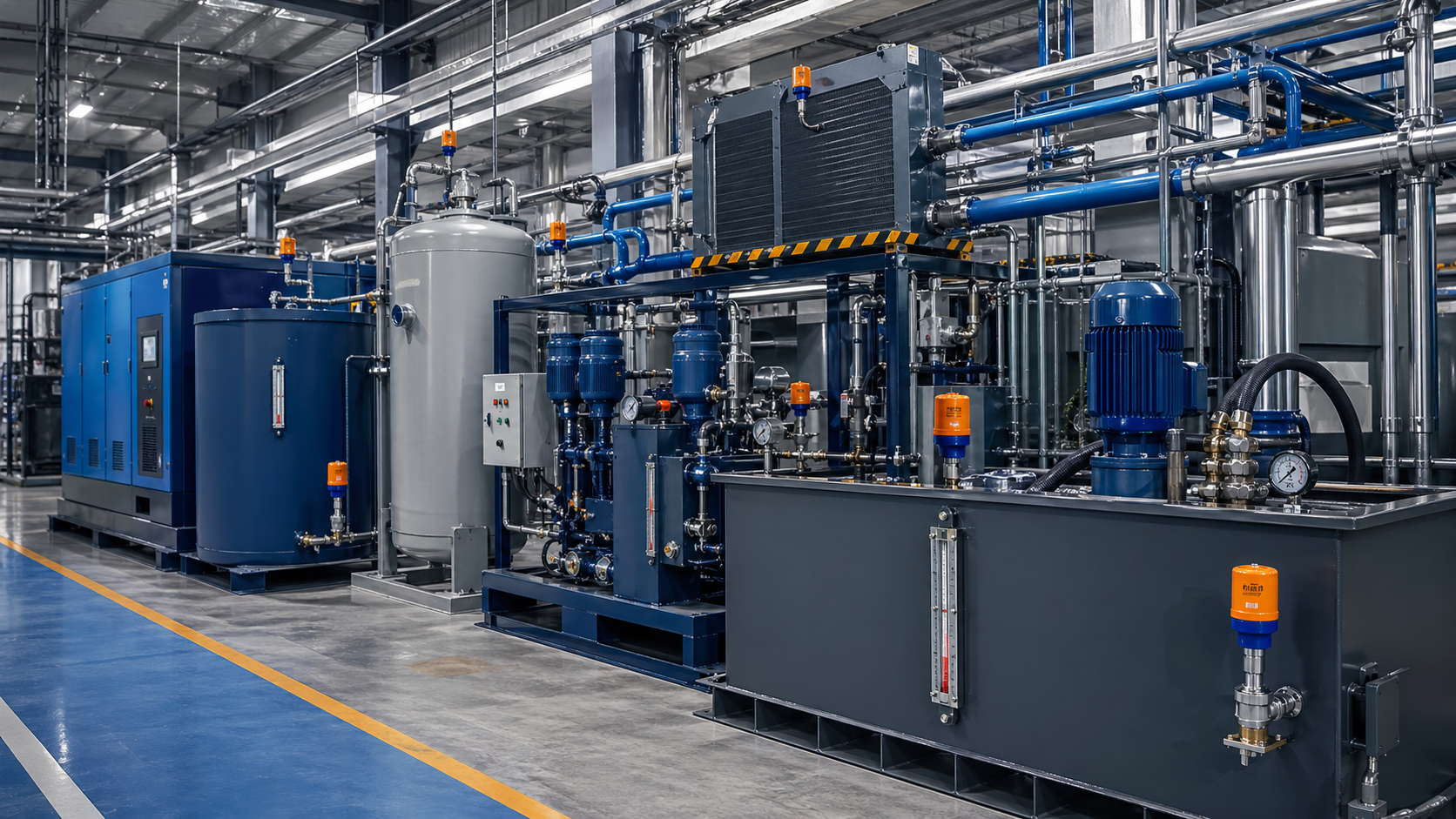

Hydraulic Oil Tanks
Level monitoring for hydraulic power units, hydraulic stations, presses, machine tools and heavy equipment.
Lubricating Oil Systems
Measurement for lubricating oil, thin oil stations, compressor oil tanks and machine lubrication reservoirs.
Coolant Tanks
Level control for machine coolant, cutting fluid, cooling water, engine coolant and process cooling liquids.
Cooling Equipment
Level measurement for cooling tanks, condensate tanks, refrigeration systems and industrial cooling units.
Compressor And Engine Systems
Monitoring for compressor oil, engine coolant, machine reservoirs and auxiliary fluid tanks.
Automatic Control Systems
Level signal support for low-level alarm, high-level alarm, pump start-stop and equipment protection.
Main Challenges In Machinery Level Measurement
Equipment tanks are often smaller than process storage tanks, but they require reliable and fast level signals to protect key machinery.
Low oil level may cause poor lubrication or hydraulic pressure loss.
Coolant shortage may lead to overheating or unstable machining.
Small tanks may have limited installation space and blind zone requirements.
Oil viscosity and temperature changes may affect measurement selection.
Vibration and machine operation may influence signal stability.
Automation systems require clear alarm or continuous output signals.
Selection Focus For Machinery Applications
Recommended Solutions By Application
| Application | Medium Type | Main Challenge | Suggested Solution |
|---|---|---|---|
| Hydraulic Oil Tank | Hydraulic oil | Low-level protection, vibration | Level switch or pressure level transmitter |
| Lubricating Oil Station | Lubricating oil, thin oil | Machine protection, stable oil supply | Level transmitter or level switch |
| Coolant Tank | Coolant, cutting fluid, cooling liquid | Foam, contamination, low-level alarm | Compact level sensor or level switch |
| Compressor Oil Tank | Compressor oil | Oil level alarm and equipment safety | Level switch or pressure level sensor |
| Cooling Water Tank | Cooling water, process water | Pump protection and continuous monitoring | Radar, ultrasonic or pressure level transmitter |
| Machine Reservoir | Oil, coolant, process fluid | Small tank and limited installation space | Compact level sensor or level switch |
Suitable Level Measurement Technologies
Level Switch
Suitable for high-level alarm, low-level alarm, pump protection and equipment interlock control.
Pressure Level Transmitter
Used for hydraulic oil tanks, coolant tanks and liquid reservoirs where pressure measurement is suitable.
Radar Level Meter
Suitable for larger oil tanks, cooling water tanks and process fluid vessels requiring non-contact measurement.
Monitoring System
Supports machine protection, fluid inventory, alarm output, pump control and equipment automation.
What Information Is Needed Before Selection?
Machinery applications usually require compact installation and stable alarm output. The following information helps SHAO recommend a suitable solution.
Application Areas In Machinery And Equipment
Hydraulic Equipment
Level monitoring for hydraulic stations, hydraulic presses, heavy machinery and power units.
Lubrication Systems
Level control for thin oil stations, lubricating oil tanks, compressor oil and machine lubrication systems.
Machine Tool Coolant
Measurement for coolant tanks, cutting fluid reservoirs, machining centers and cooling circuits.
Cooling And Refrigeration
Monitoring for cooling tanks, condensate tanks, cooling water vessels and refrigeration equipment.
Compressors And Engines
Level measurement for compressor oil, engine coolant and auxiliary equipment tanks.
Equipment Protection
Supports low-level alarm, high-level alarm, pump dry-run protection and machine safety interlock.
Frequently Asked Questions
What level sensor is suitable for hydraulic oil tanks?
Level switches or pressure level transmitters are commonly used, depending on tank size, installation space, output signal and whether continuous level measurement is needed.
Why is low-level alarm important for machinery?
Low oil or coolant level may cause pump dry running, poor lubrication, overheating or equipment shutdown. Low-level alarm helps protect the machine before failure occurs.
Can level sensors be used for coolant tanks?
Yes. Coolant tanks can use compact level sensors, level switches, ultrasonic sensors or pressure transmitters depending on tank size, foam, contamination and installation position.
Which solution is suitable for lubricating oil systems?
Lubricating oil systems may use level transmitters or level switches to monitor oil supply, provide alarm signals and protect equipment operation.
What information should I provide before requesting a quotation?
Please provide medium type, tank size, installation space, temperature, vibration condition, required output signal and whether continuous measurement or point alarm is needed.
