Level Measurement For Paper Mills And Pulp Processing

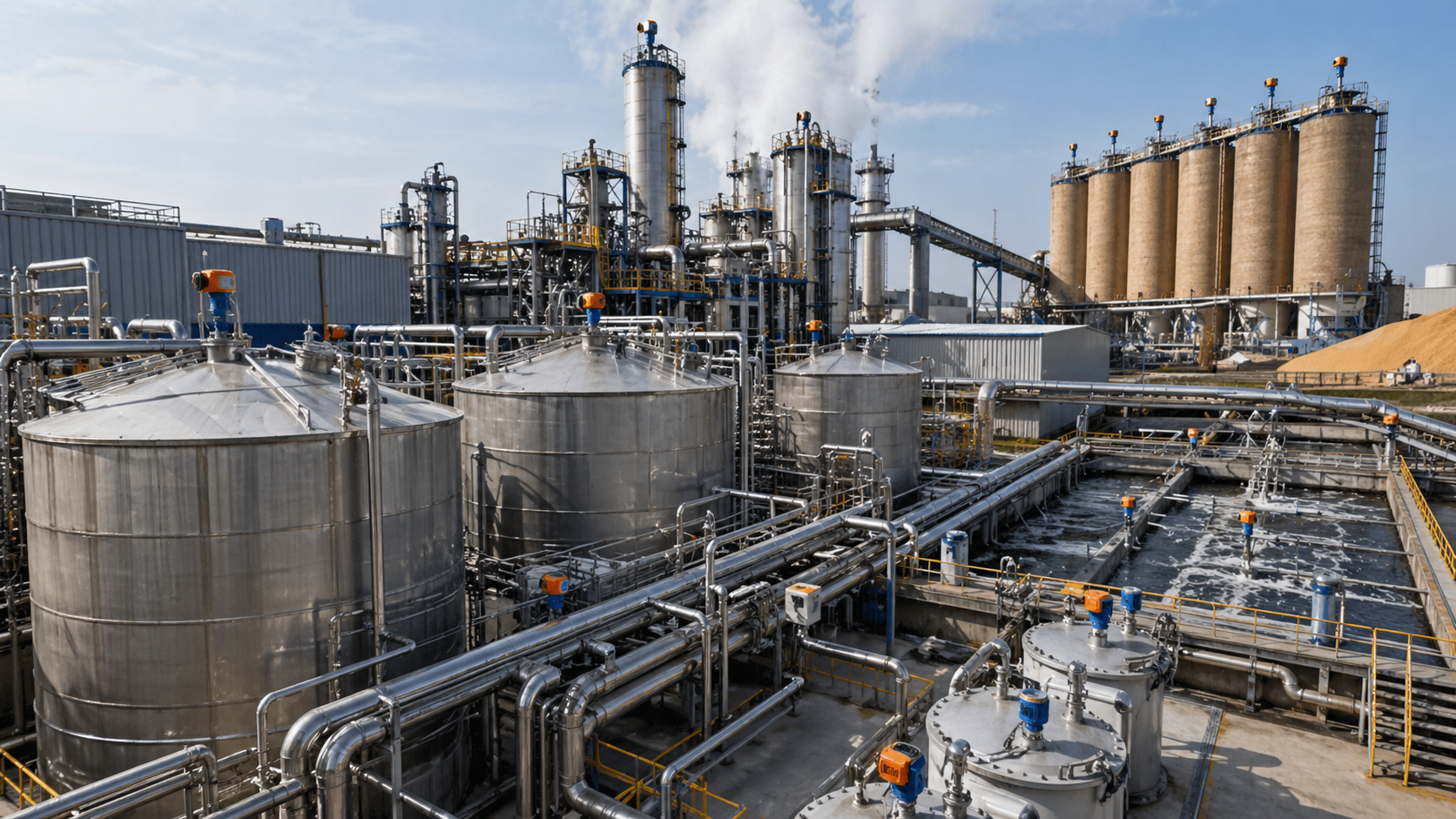

Paper mills and pulp processing plants require reliable level measurement for pulp tanks, wood chip silos, bleaching tanks, wastewater basins, chemical dosing tanks, slurry vessels and process storage systems. SHAO provides level measurement solutions for pulp, paper slurry, fiber materials, process liquids and wastewater treatment applications.
Why Paper Mill Level Measurement Requires Reliable Process Control
Paper mills handle both solid materials and liquid process media. Wood chips, fiber powder and pulp behave differently from clean liquids. Pulp tanks and slurry vessels may contain foam, suspended fibers, agitation and buildup, while wastewater basins may include sludge, chemicals and fluctuating liquid levels. A suitable level measurement solution should consider material type, tank structure, process temperature, foam, viscosity, installation position and control purpose.
Typical Materials And Process Conditions
SHAO level measurement solutions can support pulp processing, paper production, raw material storage, chemical dosing and wastewater treatment systems.
Pulp And Paper Slurry
Level measurement for pulp tanks, slurry vessels, mixing tanks and paper stock preparation systems.
Wood Chips And Fibers
Level control for wood chip silos, fiber storage, cellulose powder and raw material feeding systems.
Bleached Pulp Storage
Monitoring for bleached pulp tanks, intermediate pulp storage and process buffer tanks.
Chemical Dosing Tanks
Level monitoring for bleaching chemicals, process additives, treatment chemicals and dosing systems.
Wastewater And Sludge
Level control for effluent basins, wastewater tanks, sludge tanks and treatment process vessels.
Process Storage Tanks
Inventory and process level monitoring for water tanks, additives, slurry tanks and process vessels.
Main Challenges In Paper Mill Level Measurement
Paper production environments often involve pulp, foam, fibers, slurry, chemicals and wastewater. These conditions can affect measurement stability and sensor lifetime.
Pulp and slurry may be viscous and contain suspended fibers.
Foam and agitation may affect signal stability.
Wood chips and fibers may form uneven material surfaces.
Process chemicals require material compatibility consideration.
Wastewater basins may contain sludge, foam and floating materials.
Production lines need reliable output signals for automation control.
Selection Focus For Paper And Pulp Applications
Recommended Solutions By Application
| Application | Medium Type | Main Challenge | Suggested Solution |
|---|---|---|---|
| Pulp Tank | Pulp, paper slurry, fiber suspension | Foam, viscosity, agitation | Radar level meter or pressure level transmitter |
| Wood Chip Silo | Wood chips, shavings, fiber materials | Uneven surface, bridging, dust | Radar level meter or solid level switch |
| Bleaching Chemical Tank | Chemical liquid, additive, reagent | Corrosion and process safety | Radar level meter or corrosion-resistant transmitter |
| Wastewater Basin | Effluent, sludge, wastewater | Foam, floating materials, sludge | Non-contact radar or ultrasonic level sensor |
| Process Water Tank | Clean water, process water, recycled water | Continuous monitoring and pump control | Radar or pressure level transmitter |
| Sludge Tank | Sludge, thick liquid, suspended solids | Buildup, foam, unstable surface | Radar level measurement or suitable pressure transmitter |
Suitable Level Measurement Technologies
Radar Level Meter
Suitable for pulp tanks, slurry vessels, wastewater basins, chemical tanks and wood chip silos.
Pressure Level Transmitter
Used for process water tanks, pulp tanks and liquid storage vessels where pressure measurement is suitable.
Solid Level Switch
Suitable for high-level and low-level alarm in wood chip silos and fiber material bins.
Level Control System
Supports tank inventory, pump protection, dosing control, high-level alarm and process automation.
What Information Is Needed Before Selection?
Paper mill applications include many different process points. The following information helps SHAO recommend a suitable level measurement solution.
Application Areas In Paper Mills
Raw Material Handling
Level measurement for wood chips, shavings, fibers, cellulose powder and raw material silos.
Pulp Preparation
Level monitoring for pulp tanks, slurry vessels, mixing tanks and process storage tanks.
Bleaching And Chemical Dosing
Level control for chemical tanks, bleaching additives and dosing systems in paper production.
Process Water Systems
Measurement for process water tanks, recycled water, storage tanks and pump protection systems.
Wastewater Treatment
Level monitoring for effluent basins, wastewater tanks, sludge tanks and treatment pools.
Inventory And Alarm Control
Supports overflow prevention, shortage warning, pump control and continuous production operation.
Frequently Asked Questions
What level sensor is suitable for pulp tanks?
Radar level meters or pressure level transmitters can be considered depending on foam, viscosity, agitation, tank size and installation condition.
Can radar level meters measure paper slurry?
Yes. Radar level meters can be used for many slurry and pulp applications because they provide non-contact measurement. Foam and agitation conditions should be confirmed before selection.
Which solution is suitable for wood chip silos?
Wood chip silos may use radar level meters for continuous measurement or solid level switches for high-level and low-level alarm.
How does foam affect pulp tank level measurement?
Foam may weaken or disturb the measurement signal. The correct sensor type, installation position and signal processing should be selected based on the foam condition.
What information should I provide before requesting a quotation?
Please provide medium type, tank or silo size, measuring range, foam or agitation condition, installation method, output signal requirement and site photos if available.
