Working Principle

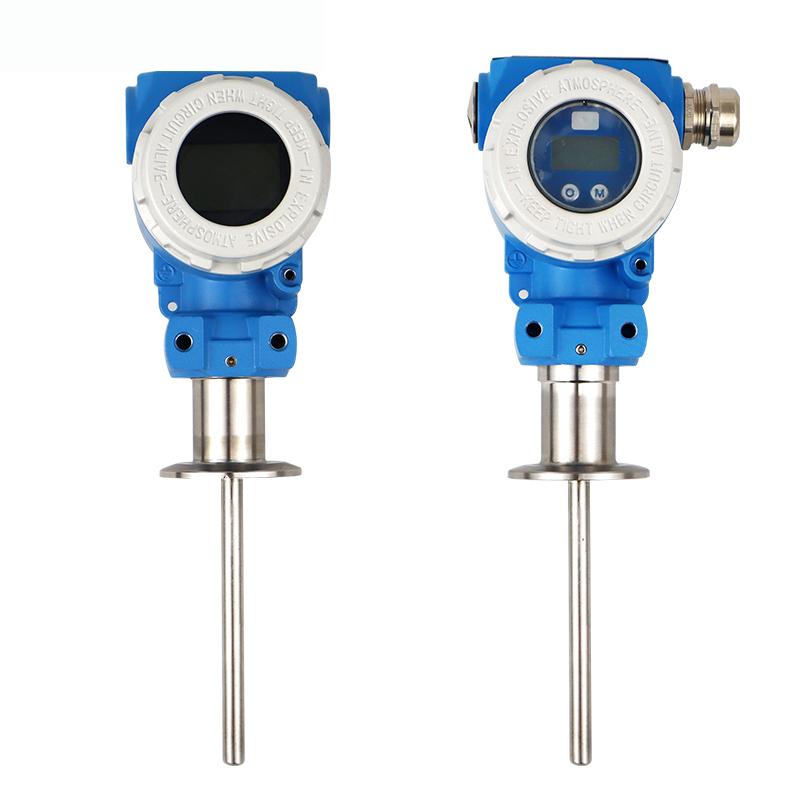

The SHW Series Temperature Transmitter converts a physical temperature signal or a conventional electrical signal into a standardized electrical output signal that can be transmitted through a communication protocol. It is mainly used for measuring and controlling temperature parameters in industrial processes.
The transmitter converts the sensor signal into a current output signal and continuously sends the standard signal to the receiving device. It can also be connected to a secondary instrument to display the corresponding temperature value, making it suitable for industrial temperature monitoring and process control applications.
Technical Characteristics
Resistant to high and low temperature conditions.
Anti-corrosion structure for industrial environments.

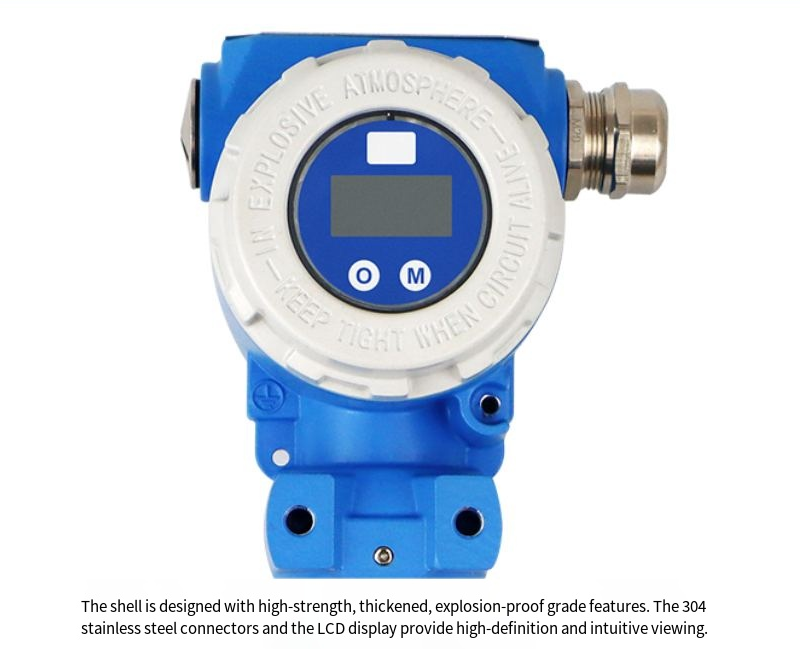

Explosion-proof design for safer operation.
High precision and strong reliability.
No mechanical moving parts and less maintenance.
Technical Parameter
| Power Supply Voltage | 24VDC |

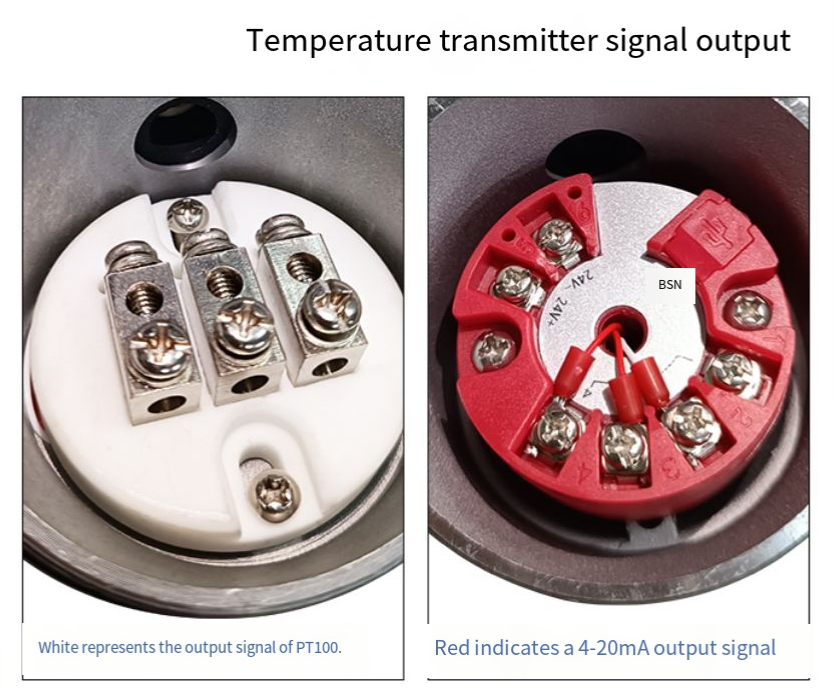

| Signal Output | PT100, 4-20mA |
| Temperature Range | -300~+500°C |
| Range Customizable | |
| Working Pressure | 1.0MPa |
| Electrical Interface | M20*1.5 |
| Junction Box Material | Aluminum Alloy Paint |
Typical Application
Industrial Automation Control Systems
Chemical Industry
Petroleum Industry
Electric Power Industry
Environmental Monitoring
Aerospace Applications
Medical Instruments
Production Process Temperature Monitoring

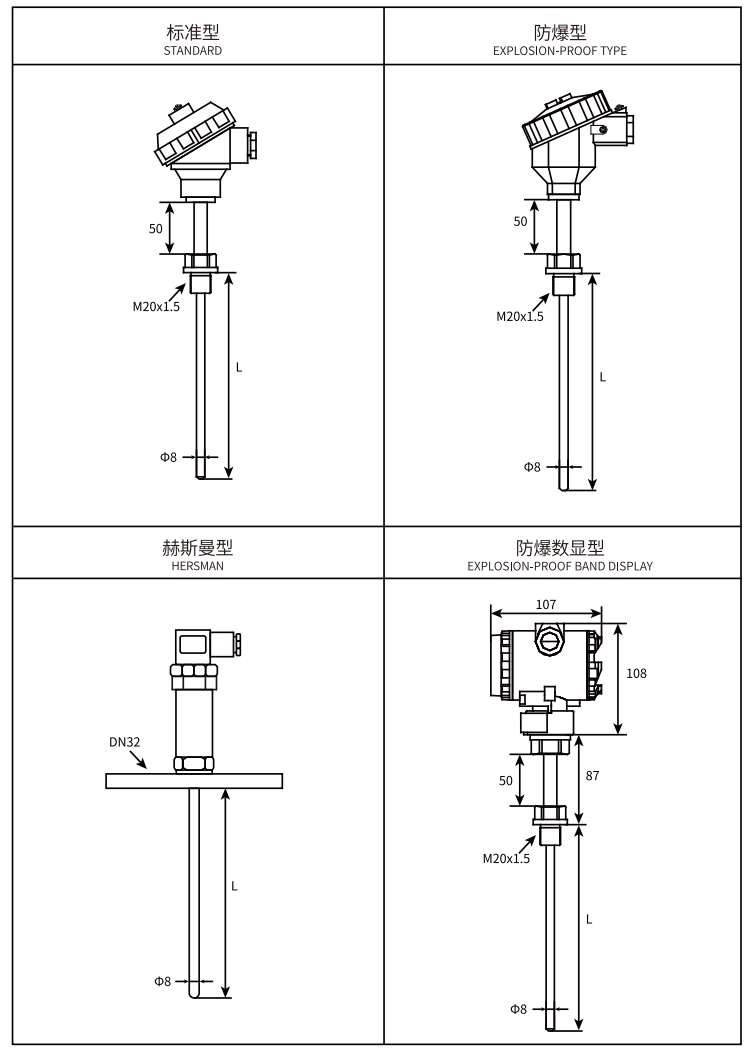

Product Type

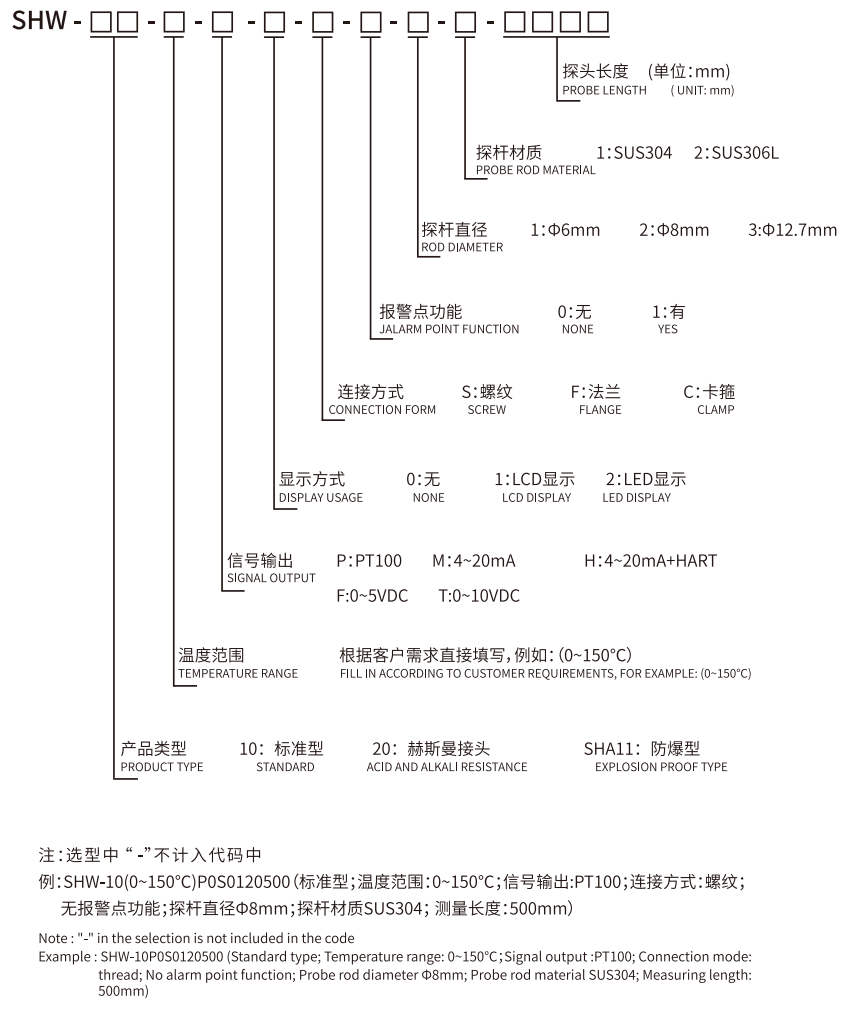

Product Selectiom Table
