Avoiding Cement Silo Overfill: Key Tips For High-Level Alarm Installation

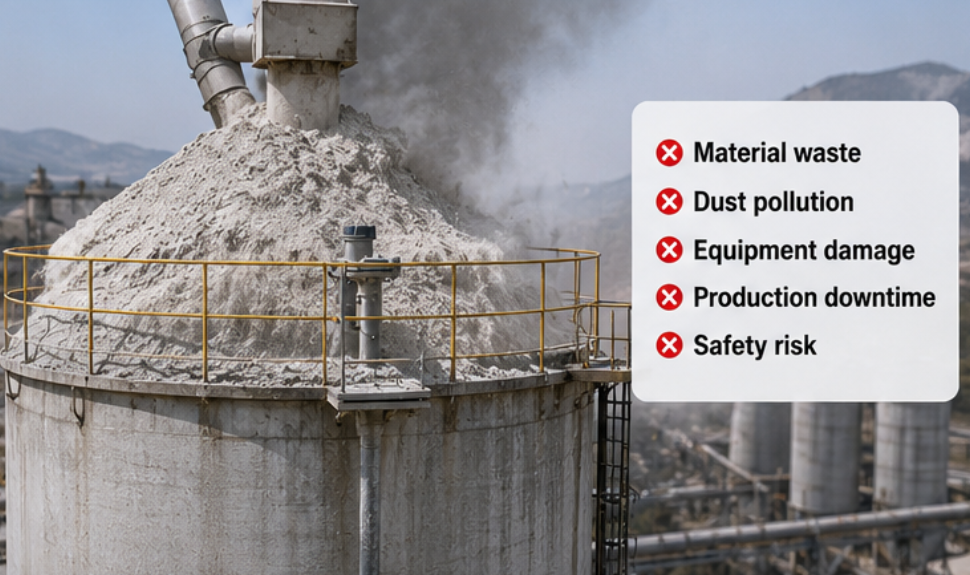

Cement silo overfill can cause material waste, equipment damage, dust pollution, and safety hazards. Installing a reliable high-level alarm correctly is essential for preventing overfill and ensuring smooth operation in cement powder storage systems.

Get Quote

Why High-Level Alarm Installation Matters

Cement powder is dusty, fine, and abrasive. Without a properly installed high-level alarm, silos can overfill, leading to excessive dust, spillage, clogged filters, and downtime. A correctly positioned level switch helps detect maximum safe levels and triggers automated alarms or feeding stops.

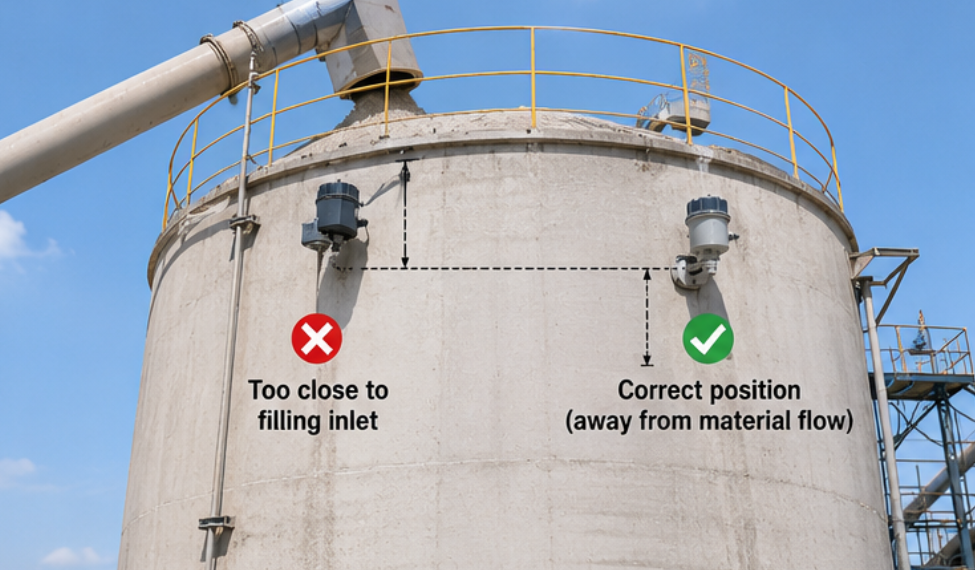

1. Position The Sensor Correctly

Installing the sensor directly under the filling pipe or near the discharge outlet can create false alarms due to material impact or cavities. Always place the high-level alarm:

Away from direct material stream
Near the maximum safe level
Avoiding wall areas prone to dust buildup or bridging
With protective baffles if necessary

2. Choose The Right Level Switch Type

Cement silos require durable and dust-resistant level switches. Options include:

Rotary Paddle Level Switch – economical and common; may wear faster in dusty environments
Vibrating Fork Level Switch – compact and no moving parts; suitable for smaller hoppers
RF Admittance Level Switch – best for sticky, humid, or buildup-prone cement powders

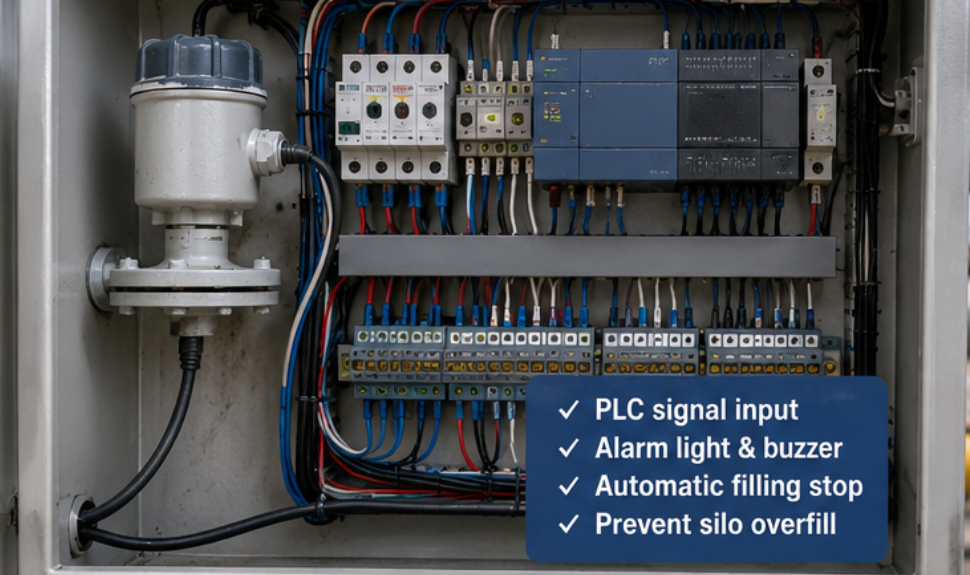

3. Integrate The Alarm With Control Systems

Connecting the high-level alarm to PLC or control cabinet ensures automatic feeding stops and operator alerts. Adding short signal delays can filter temporary false readings caused by material impact or dust clouds.

Alarm light and buzzer for operators
PLC input for automatic stop
Signal delay or filter for short-term dust interference
Routine testing and inspection before production

4. Regular Inspection And Maintenance

Dust buildup on the sensor or housing can reduce reliability. Regular maintenance includes:

Cleaning the probe, paddle, or fork
Checking housing seals and cable entry points
Testing signal output stability
Inspecting protective baffles and mounting brackets

Need Help Installing High-Level Alarms In Cement Silos?

Send us your silo size, filling method, and powder type. Shao Level can recommend the best high-level alarm solution to prevent overfill and ensure reliable operation.
