How To Choose A Level Switch For Chemical Powder Applications
Chemical powder applications often involve dust, corrosion, buildup, explosion-proof requirements and difficult flow conditions. Choosing the right level switch can help prevent false alarms, material overflow, empty running and unsafe operation in chemical processing systems.
Get Quote
Why Chemical Powder Level Detection Is Different
Chemical powders can be more difficult to detect than ordinary dry bulk solids. Some chemical powders are fine and dusty, some are corrosive, some easily absorb moisture, and some may create buildup on probes or paddles. In hazardous areas, explosion-proof requirements may also need to be considered.
A level switch used in chemical powder applications must match both the material behavior and the safety requirements of the process. Choosing the wrong type may lead to false signals, unstable alarms, short service life or installation failure.
1. Confirm The Chemical Powder Characteristics
Before choosing a level switch, buyers should first understand the powder properties. This is the most important step for correct model selection.
Dust level: fine chemical powder may affect signal stability and sealing.
Corrosion: corrosive powder may require stainless steel or coated contact parts.
Moisture absorption: humid powder may create buildup or bridging.
Bulk density: low-density powder may require higher sensitivity.
Explosion risk: combustible dust may require explosion-proof models.

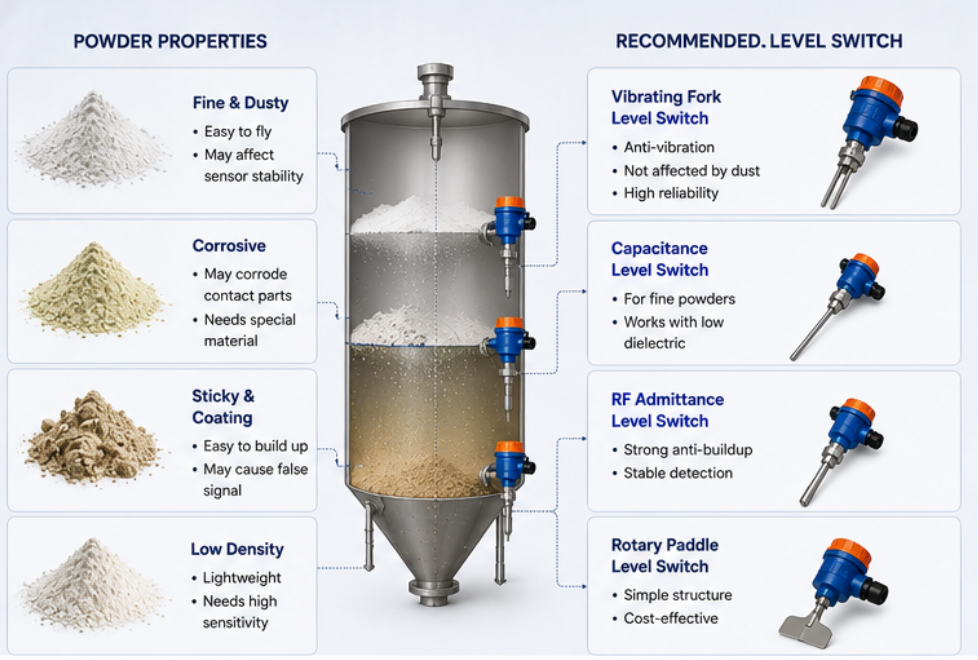

2. Choose The Right Level Switch Type
Different level switch technologies are suitable for different chemical powder conditions. Buyers should choose based on dust, buildup, corrosion and installation requirements.
| Level Switch Type | Suitable Chemical Powder Condition | Main Advantage |
|---|---|---|
| Rotary Paddle Level Switch | Dry, free-flowing chemical powder | Economical and simple for high/low alarm |
| Vibrating Fork Level Switch | Powder hoppers and compact bins | No rotating parts and compact structure |
| RF Admittance Level Switch | Sticky, dusty or coating chemical powder | Better anti-buildup and false signal resistance |
| Capacitance Level Switch | General powder or mixed process media | Flexible for different materials |
3. Pay Attention To Corrosion And Contact Materials

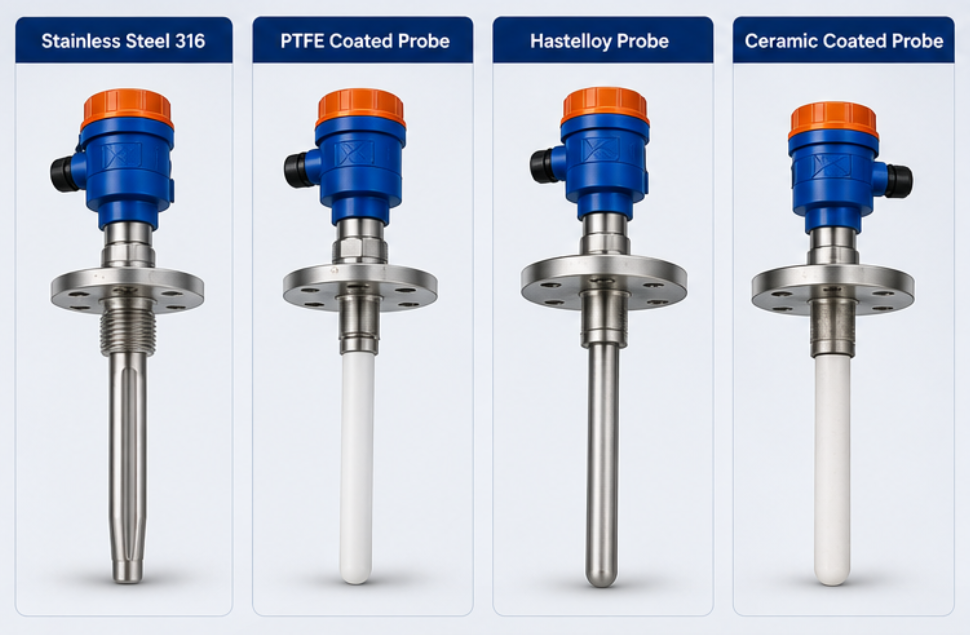

Chemical powder may be corrosive or reactive. The probe, fork, paddle, shaft, housing and process connection should be compatible with the material. Stainless steel contact parts are commonly used, but some applications may need coated probes or special material selection.
If the powder is corrosive, buyers should provide the chemical name, concentration, temperature and moisture condition before quotation. This helps avoid wrong material selection and premature sensor failure.
4. Confirm Explosion-Proof And Safety Requirements
Some chemical powder applications may involve combustible dust or hazardous areas. In these cases, buyers should confirm whether explosion-proof level switches are required before ordering.
The required certification, protection grade, cable entry and grounding method should match the project specification. Do not use standard level switches in hazardous dust areas without technical confirmation.
Chemical Powder Level Switch Checklist
Confirm chemical powder name and material characteristics.
Check dust level, bulk density, particle size and flowability.
Confirm whether the powder is corrosive, sticky or moisture-absorbing.
Choose suitable contact material or coated probe if needed.
Confirm explosion-proof requirements for hazardous dust areas.
Avoid direct material impact and heavy buildup zones.
Match process connection, voltage and output signal.
Provide drawings or application photos before quotation.
What Buyers Should Provide Before Quotation
To recommend the right level switch for chemical powder applications, buyers should provide the chemical powder name, bulk density, particle size, dust level, corrosion condition, moisture condition, silo or hopper size, installation position, temperature, pressure, process connection, power supply and output signal.
If the application is in a hazardous area, buyers should also provide the required explosion-proof specification or project safety standard.
Final Recommendation
Chemical powder applications require more careful selection than standard powder silo projects. The right level switch should match the powder characteristics, corrosion condition, dust level, safety requirements and control system.
Shao Level provides rotary paddle level switches, vibrating fork level switches, RF admittance level switches, capacitance level switches and other industrial level measurement products for chemical powder silos, hoppers and process automation systems.
