How To Choose A Rotary Paddle Level Switch For Cement Silos
Cement silos are dusty, abrasive and often affected by material impact during filling. Choosing the right rotary paddle level switch can help prevent overflow, empty running, false alarms and unnecessary downtime in cement storage and batching systems.
Get Quote

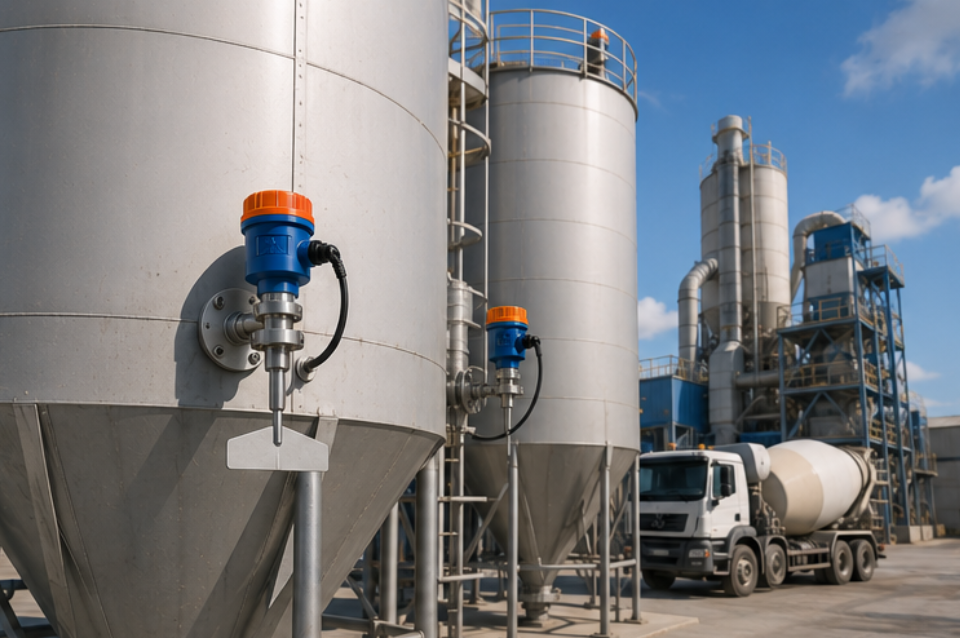

Why Rotary Paddle Level Switches Are Used In Cement Silos
A rotary paddle level switch is a common point level detection device for cement silos. Its working principle is simple: the motor drives the paddle to rotate. When cement powder reaches the paddle, the rotation is blocked, and the switch outputs a level signal to the control system.

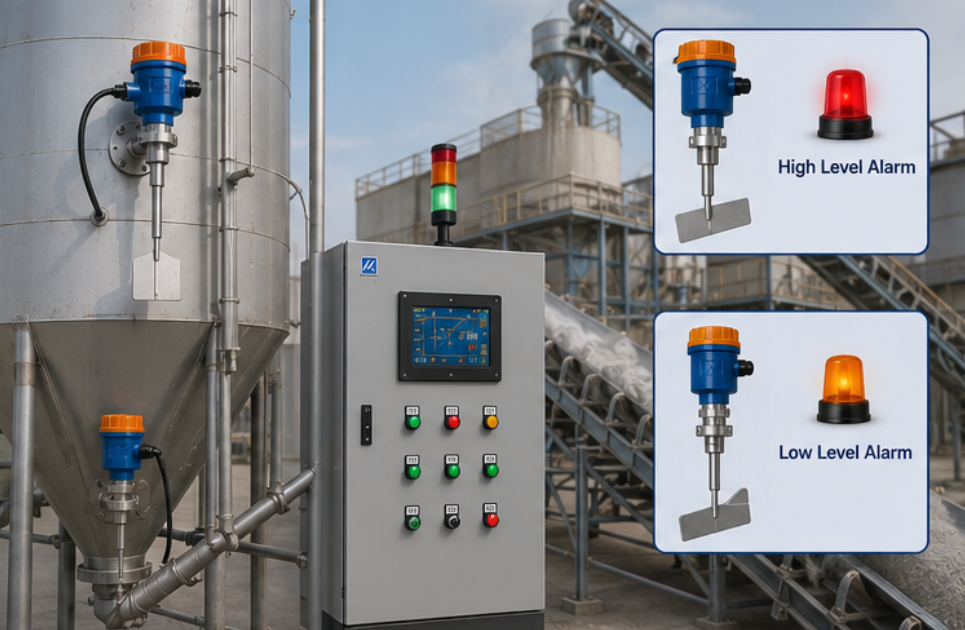

For cement plants, concrete batching plants and bulk powder storage systems, rotary paddle level switches are often used for high-level alarm and low-level alarm. They are economical, easy to install and suitable for many dry powder applications.

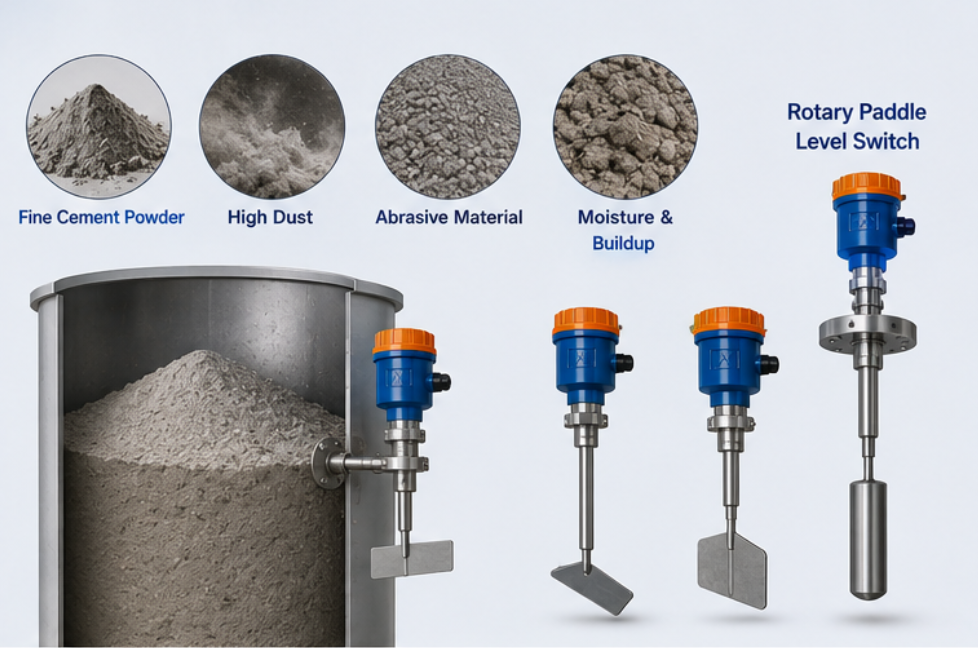

1. Confirm Cement Powder Conditions
Cement powder is fine, dusty and abrasive. During pneumatic conveying or truck loading, dust clouds and material impact may affect level detection. Before selecting a rotary paddle level switch, buyers should confirm the actual cement silo working condition.
Dust level: high dust requires reliable sealing and housing protection.
Bulk density: affects paddle sensitivity and torque selection.
Humidity: humid cement may create buildup around the paddle or shaft.
Temperature: high-temperature cement storage may require a special model.
Material impact: falling cement powder may damage the paddle if installed incorrectly.
2. Choose The Right Paddle Type
The paddle type should match the cement powder condition and silo structure. For normal cement powder, a standard paddle is usually suitable. For heavy material pressure or harsh working conditions, a stronger paddle structure may be needed.
| Selection Item | Recommendation For Cement Silos |
|---|---|
| Paddle Type | Standard or heavy-duty paddle depending on silo condition |
| Contact Material | Durable metal contact parts for abrasive powder |
| Shaft Length | Choose according to silo wall thickness and installation depth |
| Sealing Design | Important for dusty cement environments |

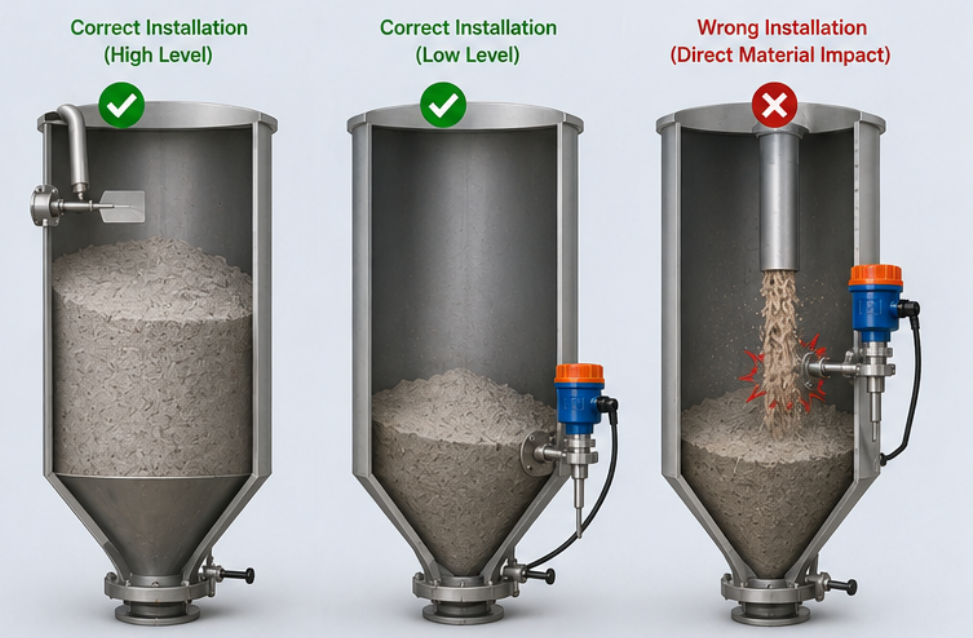

3. Select The Correct Installation Position
Installation position is one of the most important factors for cement silo level detection. For high-level alarm, the switch should be installed near the upper control point of the silo. For low-level alarm, it should be installed near the lower control point but away from unstable discharge flow.
Do not install the rotary paddle level switch directly under the cement filling pipe. Falling cement powder may hit the paddle and cause false signals or mechanical damage. If direct material impact cannot be avoided, a protective baffle should be considered.
4. Check Sealing, Motor Protection And Housing
Cement silo environments are usually dusty. If powder enters the housing or shaft area, it may affect the motor and mechanical movement. A reliable rotary paddle level switch should have proper sealing and motor protection.
Outdoor cement silos may also require weather resistance. Buyers should confirm enclosure protection, cable entry, housing material and wiring method before ordering.
Rotary Paddle Level Switch Checklist For Cement Silos
Confirm cement powder density, dust level and humidity.
Choose suitable paddle type and shaft length.
Confirm high-level alarm or low-level alarm purpose.
Avoid installation directly under the filling pipe.
Check sealing, motor protection and housing protection.
Confirm thread, flange or customized connection.
Match power supply and output signal with the control cabinet.
Consider explosion-proof requirements if used in hazardous dust areas.
What Buyers Should Provide Before Quotation
To recommend a suitable rotary paddle level switch for cement silos, buyers should provide silo height, silo diameter, wall thickness, installation position, cement powder condition, high-level or low-level purpose, power supply, output signal and process connection.
If possible, provide silo drawings or photos of the installation area. This helps avoid wrong model selection and makes the quotation more accurate.
Final Recommendation
A rotary paddle level switch is a practical and cost-effective choice for cement silo high-level and low-level alarms. However, the final model should be selected according to cement powder conditions, silo structure, installation position and control system requirements.
