How To Choose An Explosion Proof Level Switch For Dusty Industrial Areas
Dusty industrial areas such as cement plants, flour mills, grain storage, chemical powder handling and fly ash silos may involve explosion risks. Choosing the right explosion proof level switch helps improve safety, reduce false alarms and protect production systems.
Get Quote
Why Dusty Areas Need Explosion Proof Level Switches
Fine dust from cement, flour, grain, coal, fly ash or chemical powder can become hazardous when it mixes with air under certain conditions. If the working area has combustible dust or strict safety requirements, ordinary level switches may not be suitable.
An explosion proof level switch is designed for safer operation in hazardous environments. It should match the material, dust level, installation zone, electrical system and required certification.

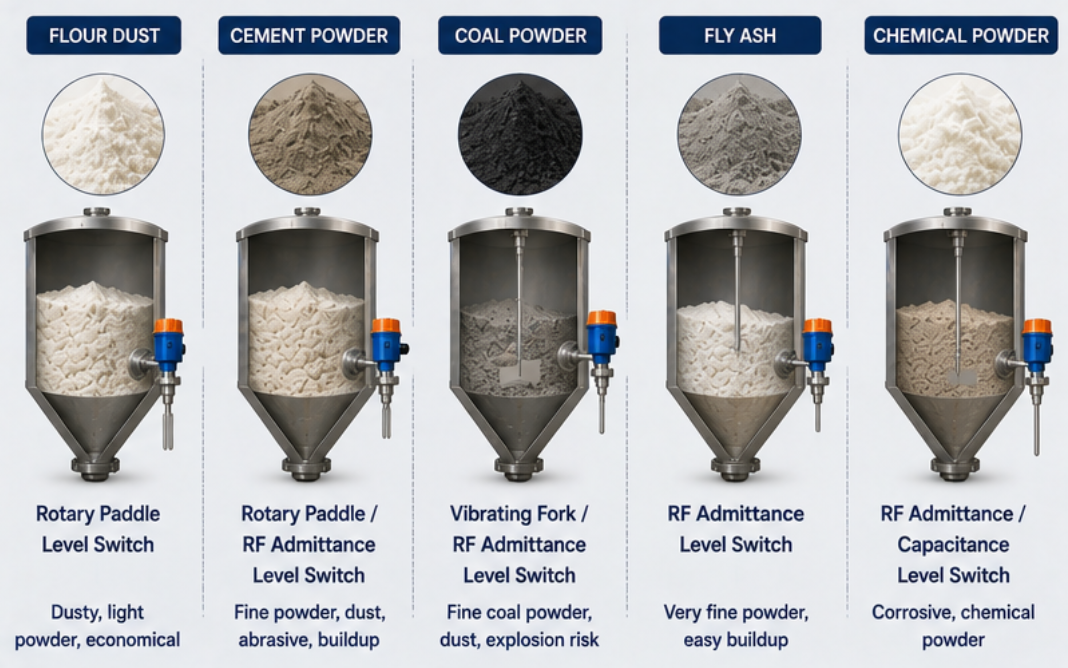

1. Confirm The Dust Type And Hazard Level
Before choosing a level switch, buyers should confirm whether the dust is combustible, conductive, corrosive or abrasive. Different dust types may require different housing protection, sealing design and certification levels.
Cement powder and lime powder
Flour, starch, sugar powder and grain dust
Coal powder and fly ash
Chemical powder and plastic powder
Metal powder or conductive dust

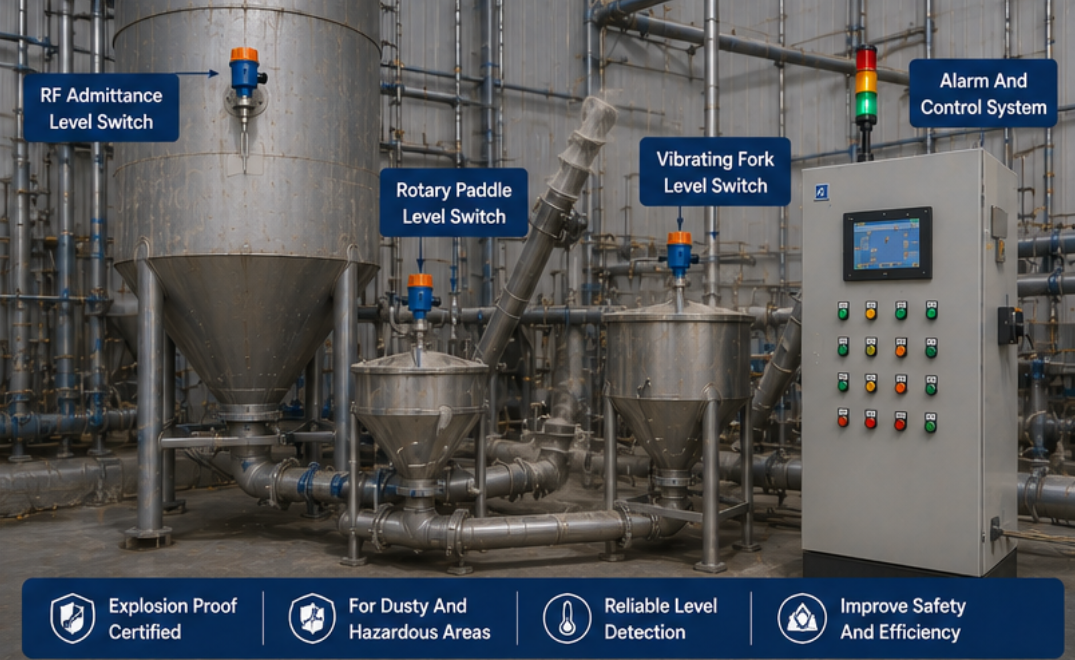

2. Choose The Right Level Switch Technology
Dusty industrial applications may use different level switch types depending on material behavior, buildup risk and installation position.
| Level Switch Type | Suitable Dusty Applications | Selection Note |
|---|---|---|
| Explosion Proof Rotary Paddle Level Switch | Dry powder silos and bulk solids | Economical for high/low level alarms |
| Explosion Proof Vibrating Fork Level Switch | Powder, granules and compact bins | No rotating paddle, stable point detection |
| Explosion Proof RF Admittance Level Switch | Dusty, sticky or buildup-prone materials | Better resistance to coating and false signals |
| Explosion Proof Capacitance Level Switch | General powder or liquid applications | Check buildup and material dielectric properties |
3. Check Certification And Area Classification
Explosion proof requirements vary by country, project and working environment. Buyers should confirm whether the project requires ATEX, IECEx, Ex d, Ex tD, dust explosion proof design or other local standards.
The required protection level should be confirmed with the plant safety engineer or project specification before ordering. Do not replace an explosion proof model with a standard model in hazardous dust areas.

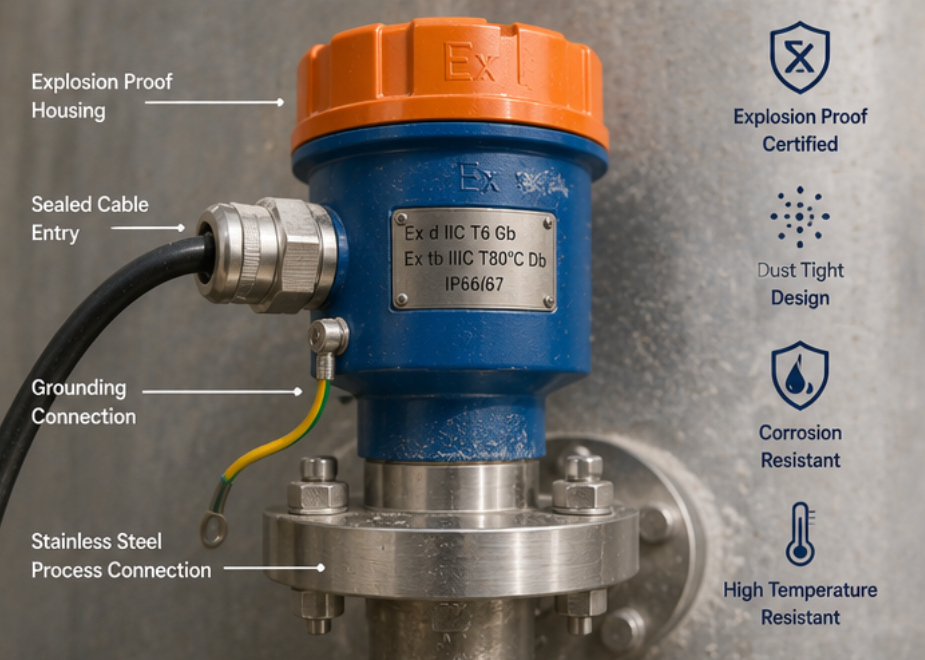

4. Pay Attention To Sealing, Housing And Cable Entry
In dusty industrial areas, dust may enter weak housing structures or cable entries. A reliable explosion proof level switch should have strong sealing, suitable protection grade and correct cable gland installation.
Buyers should check the enclosure material, process connection, cable entry size, grounding requirement and wiring method. For outdoor silos, weather resistance should also be considered.
Explosion Proof Level Switch Checklist
Confirm dust type, combustible risk and working environment.
Confirm hazardous area classification and required certification.
Choose the correct switch type for material density and buildup risk.
Check housing sealing, cable entry and grounding requirements.
Avoid direct material impact and filling stream during installation.
Confirm power supply, output signal and control cabinet compatibility.
Provide silo drawings and project safety requirements before quotation.
What Buyers Should Provide Before Quotation
To select the right explosion proof level switch, buyers should provide material name, dust condition, hazardous area classification, required certification, silo or tank size, installation position, temperature, pressure, power supply, output signal and process connection.
If the project has strict safety requirements, provide the technical specification or explosion proof marking requirement before ordering. This helps avoid wrong model selection and project approval problems.
Final Recommendation
For dusty industrial areas, the best level switch is not only the one that detects material reliably, but also the one that meets safety requirements. Rotary paddle, vibrating fork, RF admittance and capacitance level switches can all be used, but the final choice depends on dust type, material behavior and explosion proof requirements.
Shao Level provides industrial level switches and level measurement products for powder silos, tanks, hoppers and automation systems. For dusty or hazardous area projects, buyers should confirm explosion proof requirements before placing an order.
