Rotary Paddle Level Switch Buying Guide For Powder Silo Projects
Rotary paddle level switches are widely used for high-level and low-level detection in powder silos, hoppers and bulk material storage systems. Before ordering, buyers should confirm the powder characteristics, silo structure, paddle type, installation position and electrical requirements.

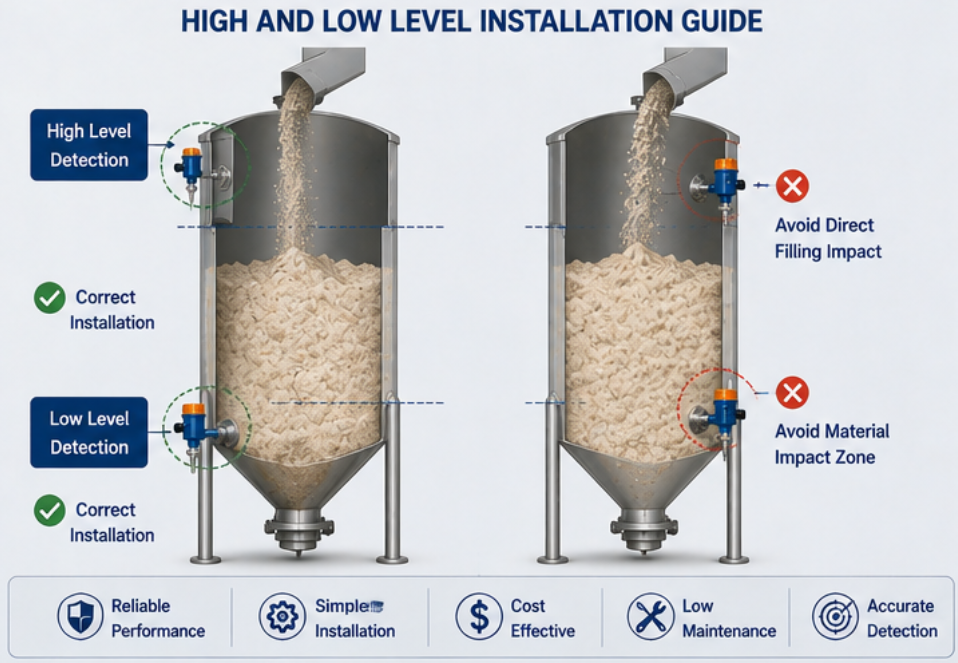

Get QuoteA rotary paddle level switch uses a motor-driven paddle to detect material presence. When powder or bulk solids reach the paddle, the paddle rotation is blocked and the internal mechanism outputs a level signal. This type of level switch is simple, economical and practical for many powder silo projects. It is commonly used for cement powder, flour, feed, plastic granules, lime powder, fly ash, mineral powder, chemical powder and other dry bulk solids. Different powders have different density, flowability and buildup characteristics. The same rotary paddle level switch may perform differently in cement powder, flour, plastic pellets or fly ash. Light powder: may need a larger or more sensitive paddle. Heavy powder: requires stronger mechanical structure. Sticky powder: may cause buildup around the paddle or shaft. Dusty powder: requires better sealing and housing protection. High-temperature powder: may need a high-temperature model. The paddle is the contact part that directly detects powder. Buyers should choose the paddle according to material density, silo size and installation space. For high-level alarm, the rotary paddle level switch is usually installed near the upper side of the silo to prevent overflow. For low-level alarm, it is installed near the lower side of the silo to prevent empty running or feeding interruption. The switch should not be installed directly under the filling pipe. Falling powder may hit the paddle and cause false signals or mechanical damage. In strong impact areas, a protective baffle is recommended. Powder silo environments are often dusty. A good rotary paddle level switch should have reliable sealing, stable motor protection and a durable mechanical structure. When material blocks the paddle, the motor should be protected from damage. For cement, lime powder, fly ash and other dusty applications, sealing quality is especially important. Before ordering, buyers should confirm whether the silo requires threaded connection, flange connection or customized mounting. The power supply and output signal must also match the control cabinet. Thread size or flange size Side mounting or top mounting AC or DC power supply Relay output or other signal type Cable entry and wiring requirement Explosion-proof requirement if used in hazardous areas Material name and bulk density Powder temperature, humidity and dust level High-level alarm or low-level alarm purpose Silo height, diameter and wall thickness Installation position and filling direction Paddle type and shaft length requirement Thread, flange or custom connection Power supply and output signal Explosion-proof or high-temperature requirement Choosing only by price without confirming powder density. Using a standard paddle for very light or heavy materials. Installing the switch directly in the material impact zone. Ignoring dust sealing and motor protection. Not confirming voltage, output and connection size before ordering. Not providing silo drawings for customized projects. A rotary paddle level switch is a cost-effective and reliable choice for many powder silo projects. However, correct model selection depends on powder properties, silo structure, paddle design, installation position and control system requirements. Shao Level provides rotary paddle level switches and other industrial level measurement products for powder silos, hoppers and bulk solid handling systems. Buyers can provide material details and silo drawings to receive a more accurate model recommendation. Send us your powder type, silo size, installation position and control requirements. Shao Level can help recommend a suitable rotary paddle level switch solution.

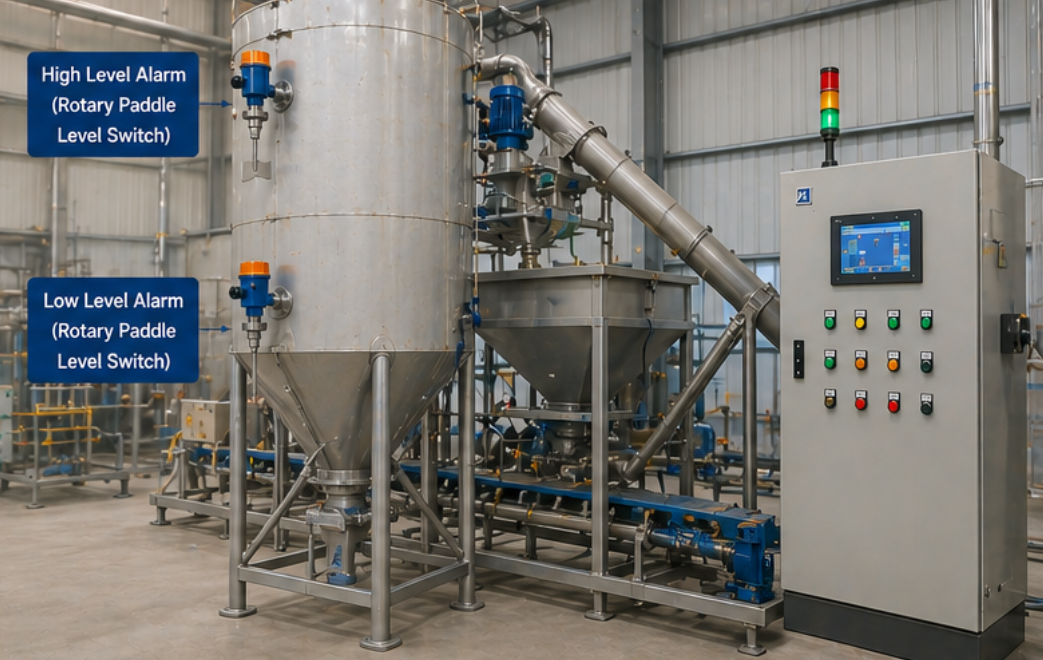

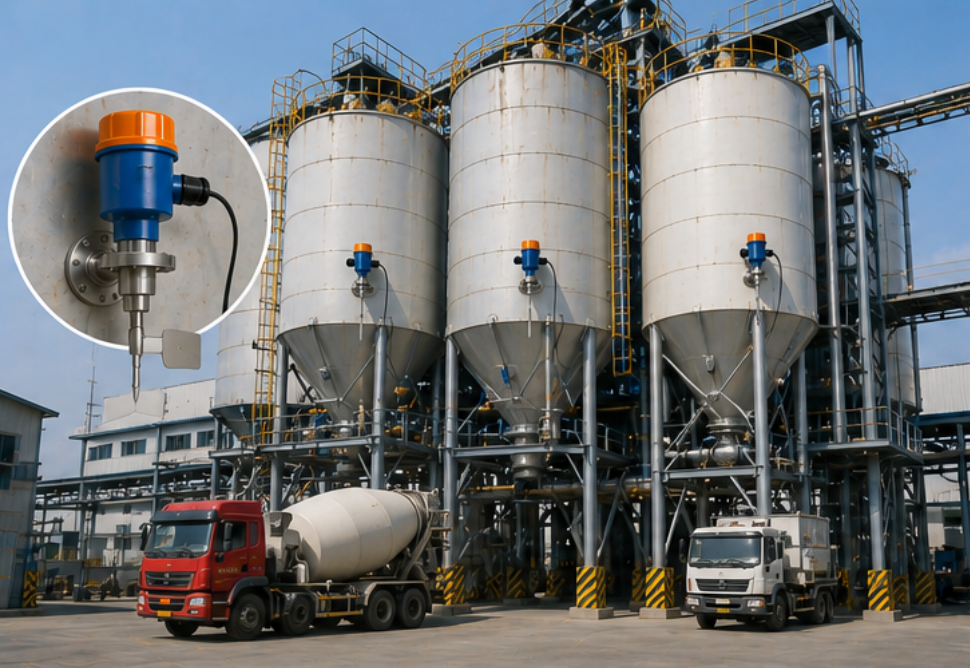

Why Rotary Paddle Level Switches Are Used In Powder Silos
1. Confirm The Powder Type Before Buying

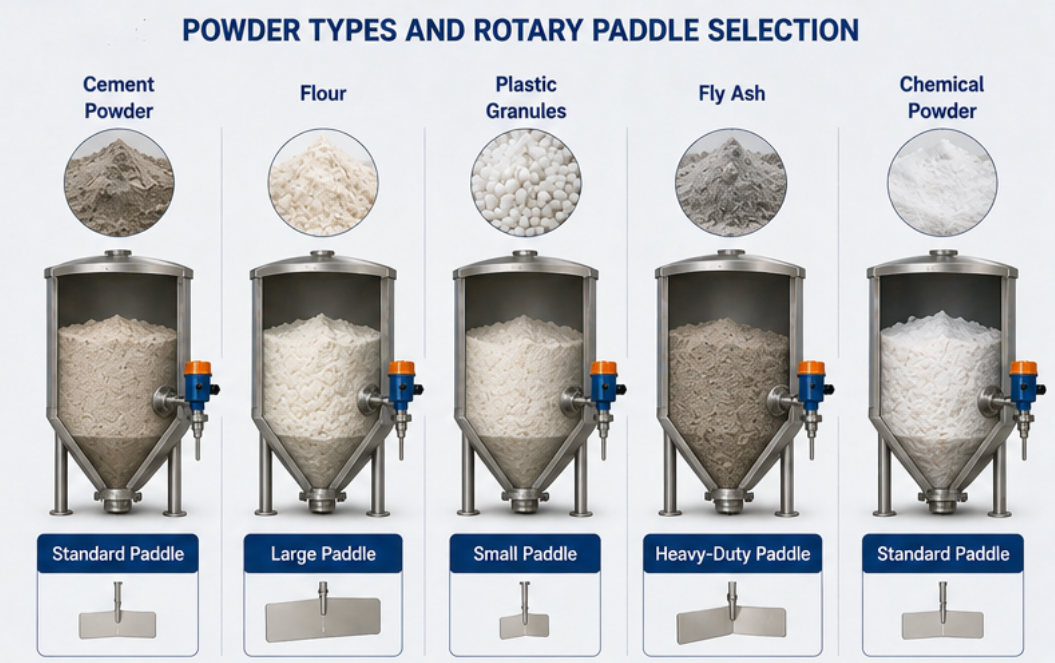

2. Choose The Right Paddle Type
Paddle Type Suitable Application Selection Note Standard Paddle General powder and granules Common choice for normal silo projects Large Paddle Low-density powder Improves sensitivity for light material Small Paddle Limited installation space Useful for compact hoppers or small bins Heavy-Duty Paddle Heavy or abrasive bulk solids Better strength for harsh applications 3. Select The Correct Installation Position
4. Check Motor Protection And Sealing
5. Confirm Connection, Voltage And Output Signal
Rotary Paddle Level Switch Buying Checklist
Common Buying Mistakes To Avoid
Final Recommendation
Need A Rotary Paddle Level Switch For Your Powder Silo Project?
