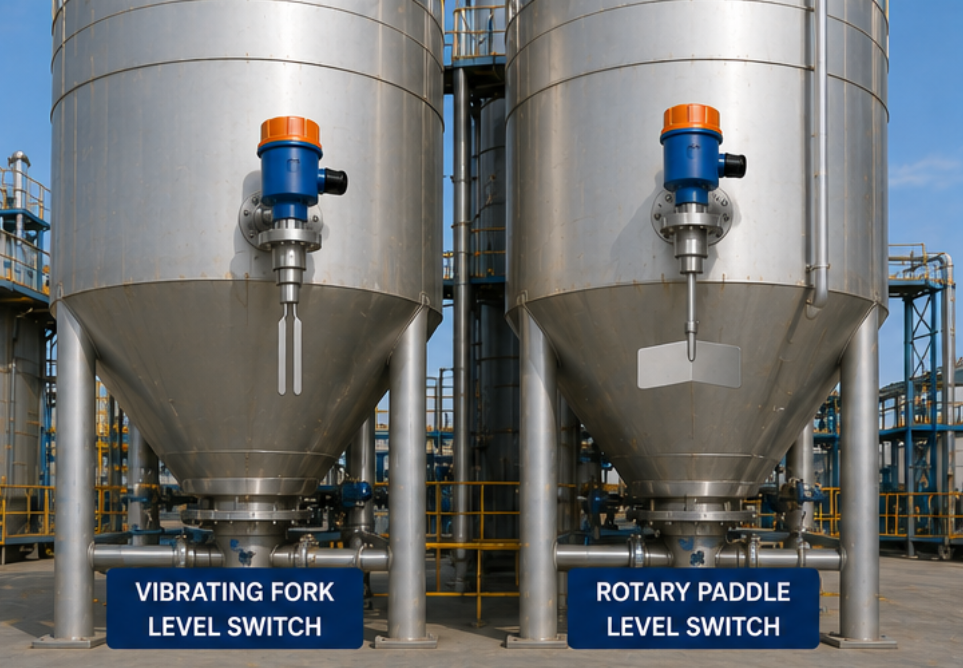

Vibrating Fork Level Switch vs Rotary Paddle Level Switch: Which Is Better?
Vibrating fork level switches and rotary paddle level switches are both widely used for point level detection in silos, hoppers and tanks. The better choice depends on material type, density, installation space, mechanical wear, dust, buildup risk and project budget.
Get Quote

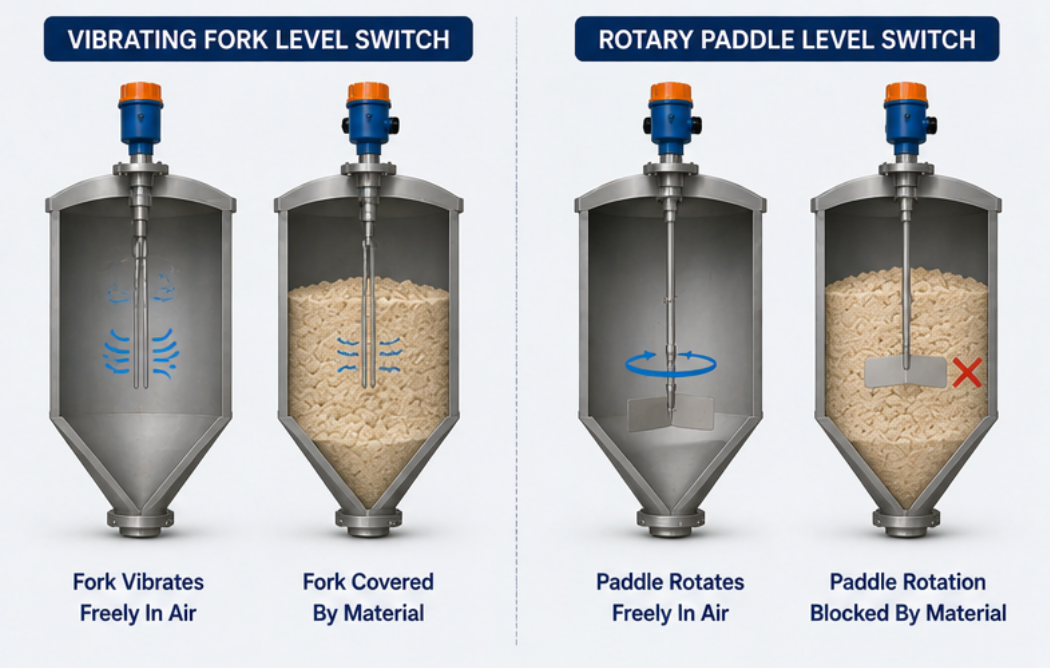

What Is A Vibrating Fork Level Switch?
A vibrating fork level switch uses a fork-shaped probe that vibrates at a fixed frequency. When powder, granules or liquid covers the fork, the vibration changes, and the switch outputs a level signal to the control system.
Because it has no rotating paddle, it is often selected for compact installations, lower mechanical wear and stable point level detection in both solids and liquids.
What Is A Rotary Paddle Level Switch?
A rotary paddle level switch uses a small motor to drive a paddle. When powder or bulk solid material reaches the paddle, the rotation is blocked and the internal mechanism sends a switching signal.
It is widely used in powder silos and bulk solid storage systems because it is simple, economical and easy to understand.
Key Differences Between Vibrating Fork And Rotary Paddle
| Comparison Item | Vibrating Fork Level Switch | Rotary Paddle Level Switch |
|---|---|---|
| Working Principle | Detects vibration frequency change | Detects blocked paddle rotation |
| Suitable Media | Powders, granules and liquids | Dry powders, granules and bulk solids |
| Mechanical Structure | No rotating paddle | Motor and rotating paddle |
| Cost | Usually higher | Usually more economical |
| Best Use | Compact tanks, low-wear applications, solids and liquids | Powder silos, hoppers and cost-sensitive bulk solid projects |

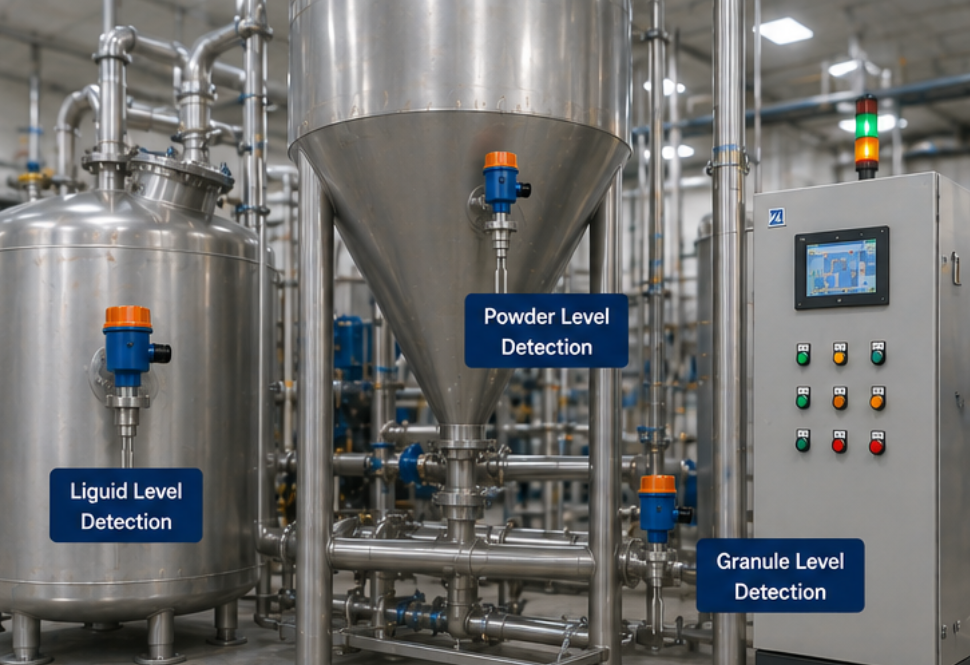

When Is Vibrating Fork Better?
A vibrating fork level switch is better when the application needs compact installation, no rotating parts, stable signal output and lower mechanical wear. It is suitable for many powder, granule and liquid applications.
Compact tanks or hoppers with limited installation space
Applications where rotating mechanical parts are not preferred
Point level detection for both solids and liquids
Projects requiring stable signal output and lower mechanical wear

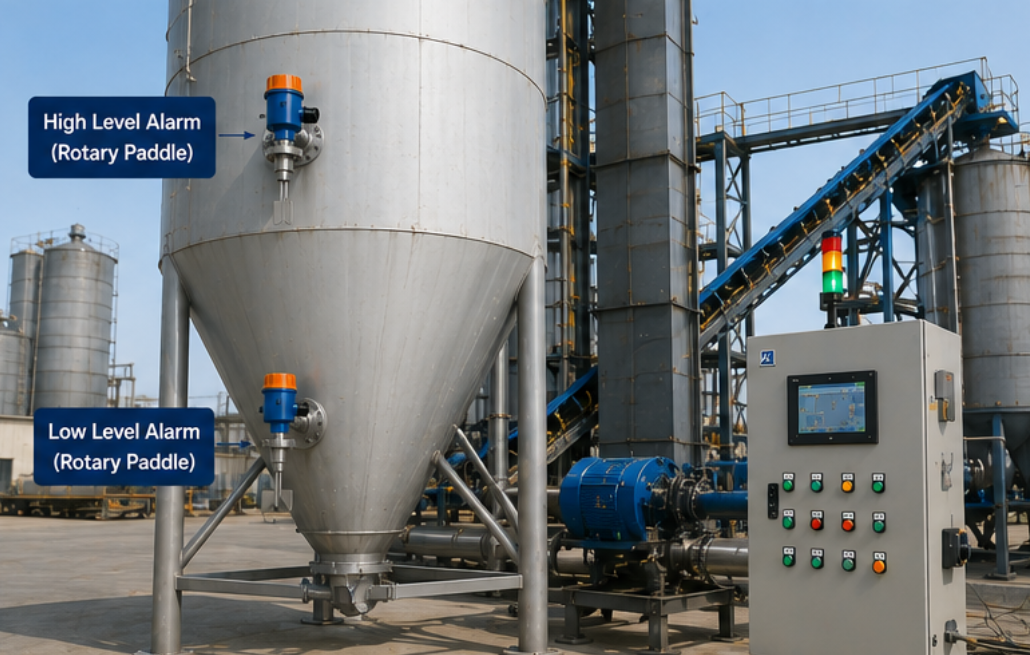

When Is Rotary Paddle Better?
A rotary paddle level switch is better when the project involves dry powder, granules or bulk solids, and the buyer needs an economical and proven solution for silo high-level or low-level alarm.
Cement silos, flour silos and feed storage bins
Plastic granule hoppers and bulk material systems
Simple high-level or low-level alarm applications
Cost-sensitive powder silo projects
Simple Selection Recommendation
Choose vibrating fork if the application includes liquids or compact installation.
Choose vibrating fork if lower mechanical wear is important.
Choose rotary paddle for general dry powder silo level detection.
Choose rotary paddle if the project needs a cost-effective high/low alarm.
For sticky, dusty or buildup-prone materials, also compare RF admittance level switches.
What Buyers Should Confirm Before Ordering
Before choosing between vibrating fork and rotary paddle level switches, buyers should confirm material name, bulk density, particle size, silo or tank size, installation position, temperature, pressure, power supply, output signal and process connection.
If the material is sticky, dusty, humid or easy to build up, buyers should provide more details or application photos so the manufacturer can recommend a more reliable solution.
Final Recommendation
Neither vibrating fork nor rotary paddle is always better. Vibrating fork level switches are more suitable for compact, low-wear and mixed solid-liquid applications. Rotary paddle level switches are more suitable for economical dry powder silo level detection.
Shao Level provides vibrating fork level switches, rotary paddle level switches, RF admittance level switches and other industrial level measurement products for tanks, silos, hoppers and automation systems. Correct selection can reduce false alarms, improve reliability and lower maintenance costs.
Need Help Choosing Between Vibrating Fork And Rotary Paddle?
Send us your material type, tank or silo structure and working conditions. Shao Level can help recommend the most suitable level switch solution for your project.
Contact Us / Get Quote
