What Is An RF Admittance Level Switch And When Should You Use It?

RF admittance level switches are widely used in industrial level measurement, especially in applications involving powder, sticky materials, high dust or buildup conditions. Compared with traditional capacitance level switches, RF admittance technology provides more stable detection and better resistance to material coating.

What Is An RF Admittance Level Switch?

An RF admittance level switch is an advanced level detection device based on capacitance measurement technology. It uses radio frequency signals to detect changes in admittance between the probe and the vessel wall.

Unlike standard capacitance level switches, RF admittance sensors can distinguish between actual material level and unwanted buildup or coating on the probe. This makes them more reliable in challenging industrial environments.

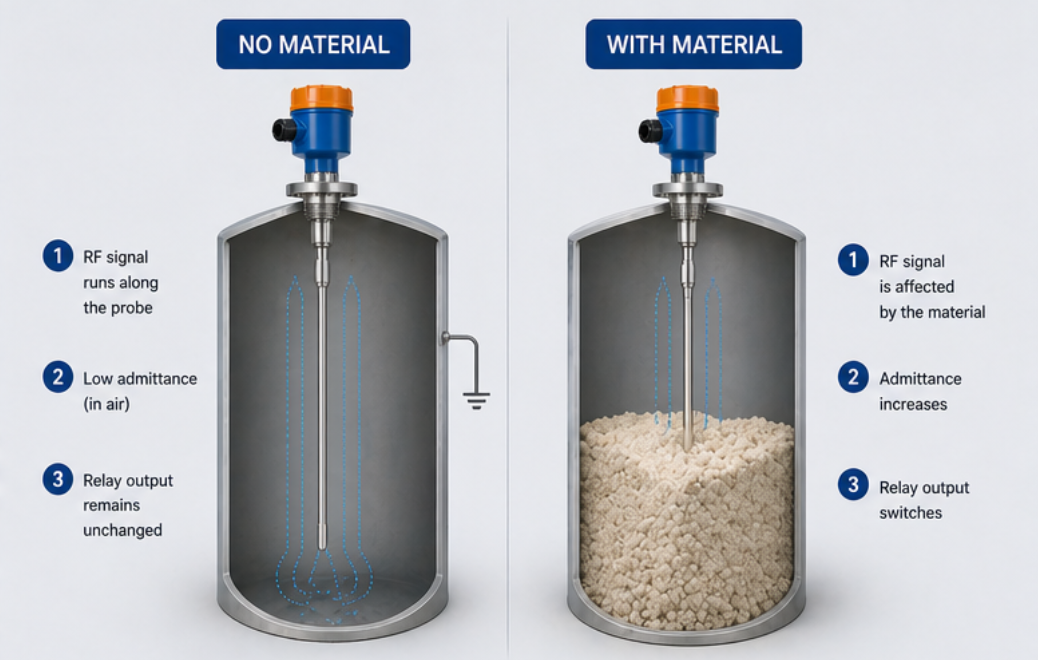

How Does It Work?

The RF admittance level switch continuously sends a radio frequency signal through the probe. When material comes into contact with the probe, the electrical admittance changes. The device detects this change and outputs a signal.

The key advantage is its ability to ignore buildup on the probe surface. Even if powder or sticky material coats the probe, the sensor can still accurately detect the actual material level.

When Should You Use An RF Admittance Level Switch?

RF admittance level switches are not always necessary for every application. However, they are highly recommended in the following conditions:

• Sticky or coating materials such as sludge, slurry or wet powder

• High dust environments like cement plants or fly ash silos

• Materials that easily build up on sensor surfaces

• Applications requiring stable and reliable detection

• Harsh industrial environments with vibration or temperature changes

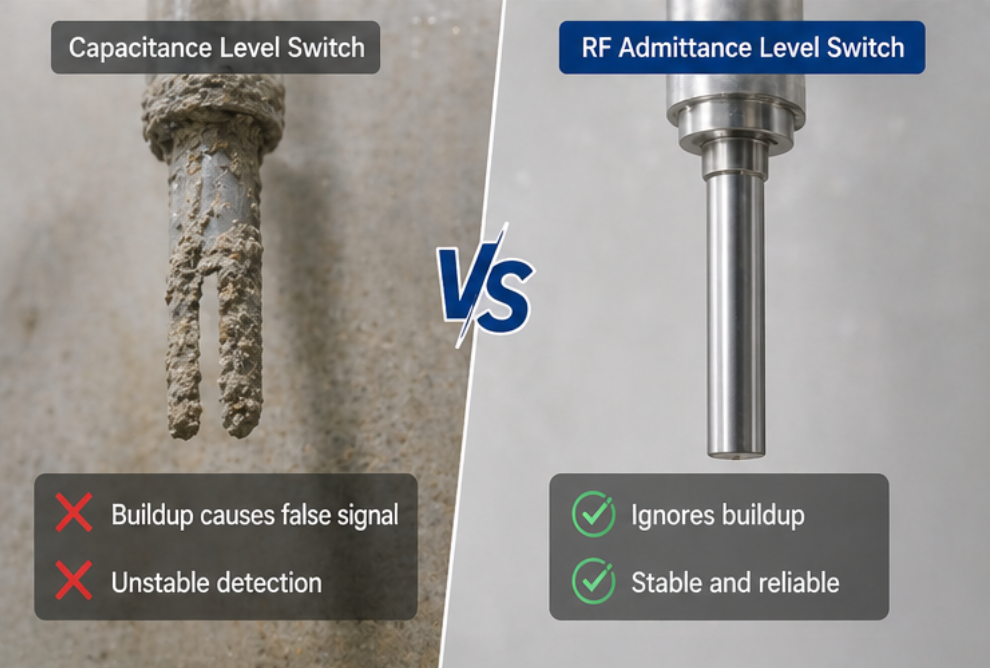

RF Admittance vs Capacitance Level Switch

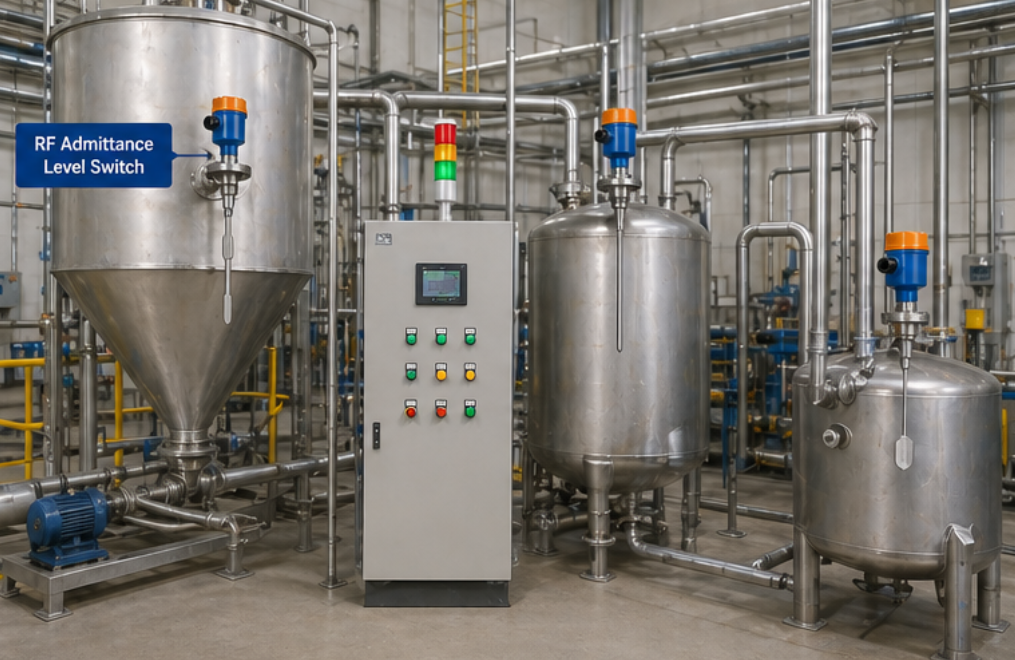

Typical Applications

RF admittance level switches are widely used in industries such as cement, chemical processing, food production, power plants and wastewater treatment.

Typical applications include powder silos, ash storage tanks, slurry tanks, grain storage bins, chemical reactors and mixing tanks where material buildup or coating is common.

Final Recommendation

If your application involves clean and dry materials, a standard capacitance or rotary paddle level switch may be sufficient. However, if your process includes sticky materials, dust, coating or unstable conditions, an RF admittance level switch is a more reliable choice.

Choosing the correct level switch can significantly improve system stability, reduce maintenance and prevent false alarms in industrial processes.
