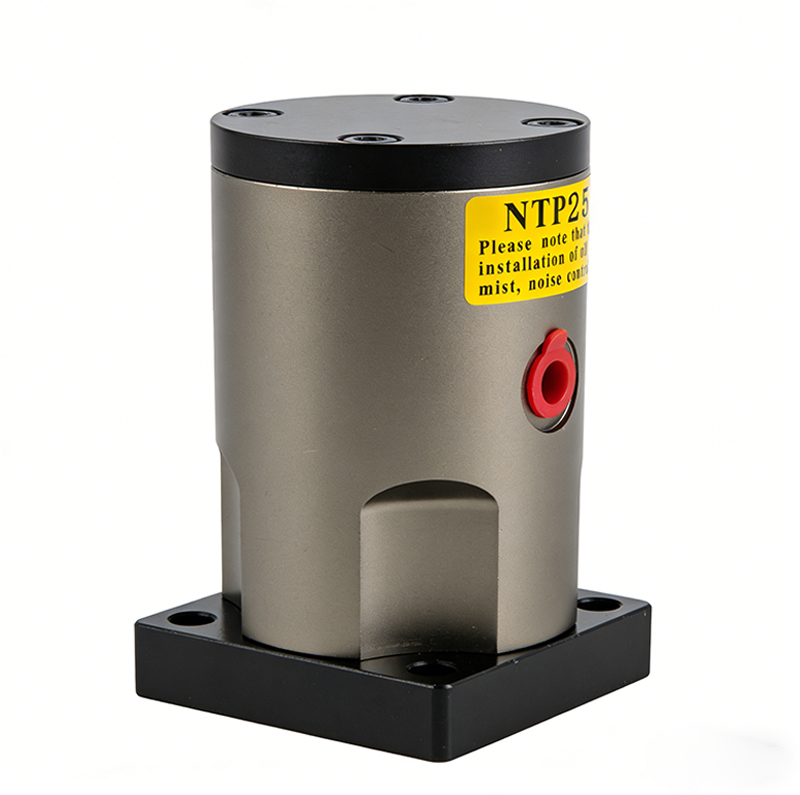

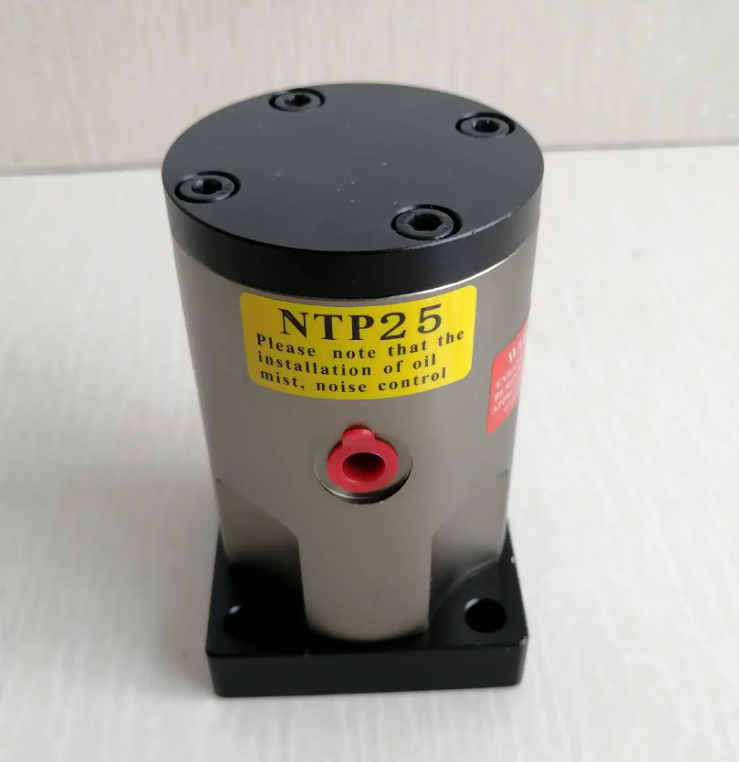

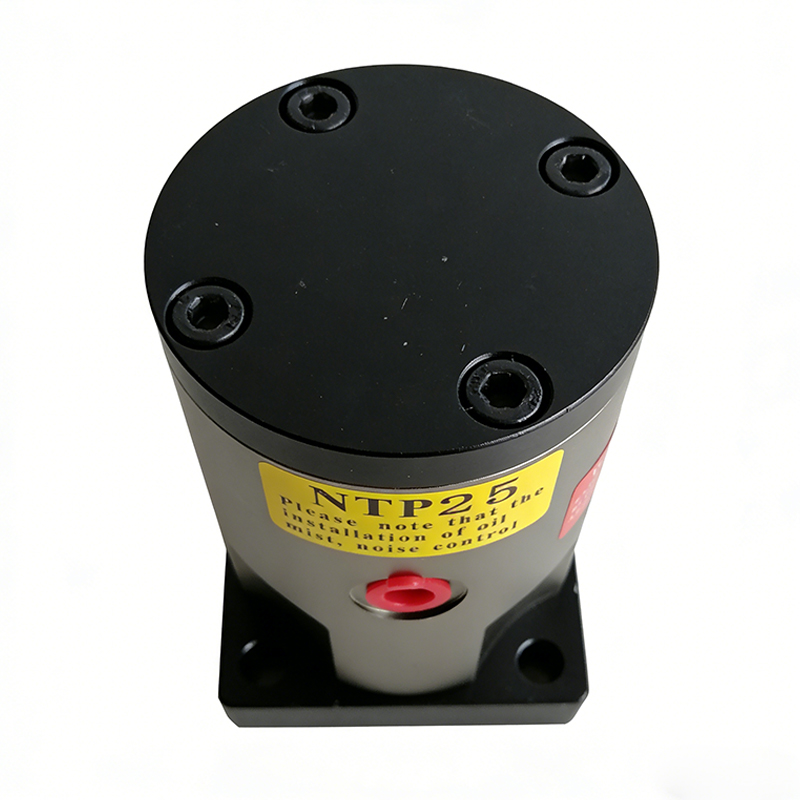

Working Principle
The NTP Series Pneumatic Piston Vibrator generates vibration through the reciprocating movement of an internal piston driven by compressed air. Inside the aluminum housing, the piston moves back and forth continuously to produce stable impact force, which is then transmitted to the mounted equipment surface. By adjusting the air pressure, users can regulate vibration frequency and amplitude to match different working conditions.
This structure is especially suitable for applications where direct impact vibration is needed to improve bulk material movement. It helps break material buildup, reduce wall adhesion, and support smoother discharge in bins, hoppers, silos, and vibrating equipment. With its compact body, corrosion-resistant aluminum housing, and long-life internal grease design, the NTP Series is a practical solution for continuous industrial use.
Technical Characteristics
High power output with compact piston structure.
Low lubrication demand and quiet running performance.
Nominal frequency range: 43–146 times/sec.
Vibration force range: 150–2039 N.
Frequency and amplitude can be adjusted continuously.
Aluminum body offers corrosion resistance and long service life.
Filled with special grease for durable operation.
Maximum standard operating temperature is 150°C.
Custom high-temperature version up to 200°C is available.
Suitable for extremely harsh industrial environments.
Typical Applications
Suitable for vibrating tables and compact vibration platforms.
Used for silo emptying and hopper discharge assistance.
Applied to bulk material dispersion and flow improvement.
Helps prevent buildup and sticking on pipe walls.
Suitable for patting and loosening bulk material in vessels.
Can be used on bins, chutes, and discharge points.
Ideal for industries handling powders and granular materials.

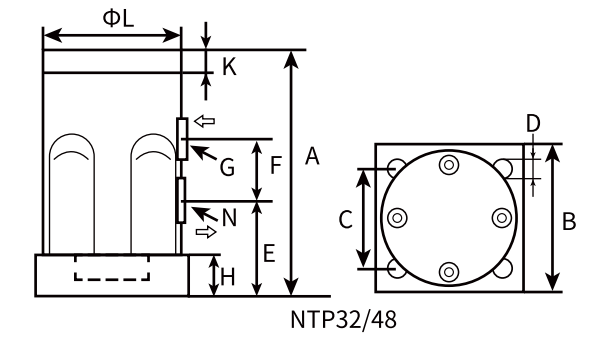

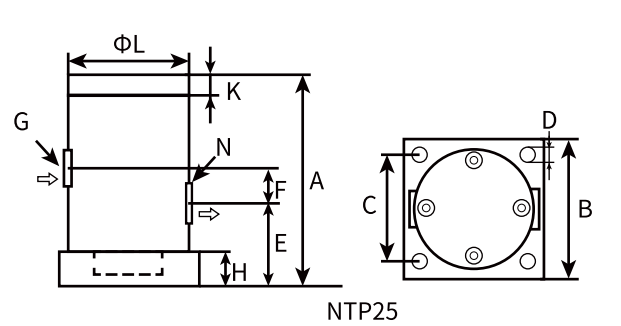

Outline Size Table
| Type | A | B | C | D | E | F | G | H | K | L | N | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NTP-25 | 90 | 60 | 46 | 6.5 | 36 | 14.5 | G1/8 | 15 | 8 | 51 | G1/8 | 0.85 |
| NTP-32 | 140 | 75 | 51 | 11 | 48 | 32 | G1/4 | 20 | 10 | 70 | G1/4 | 1.65 |
| NTP-48 | 194 | 100 | 78 | 13 | 60 | 51 | G3/8 | 25 | 15 | 95 | G3/8 | 4.30 |
Performance Parameter
| Type | Frequency (V.P.M.) 0.2MPa | Frequency (V.P.M.) 0.4MPa | Frequency (V.P.M.) 0.6MPa | Vibration Power (N) 0.2MPa | Vibration Power (N) 0.4MPa | Vibration Power (N) 0.6MPa | Air Consumption (l/min) 0.2MPa~0.4MPa |
|---|---|---|---|---|---|---|---|
| NTP-25 | 5848 | 7000 | 8784 | 269 | 438 | 830 | 68–82 |
| NTP-32 | 2959 | 4080 | 5040 | 289 | 607 | 926 | 71–86 |
| NTP-48 | 2618 | 3456 | 4320 | 782 | 1305 | 2039 | 78–90 |
