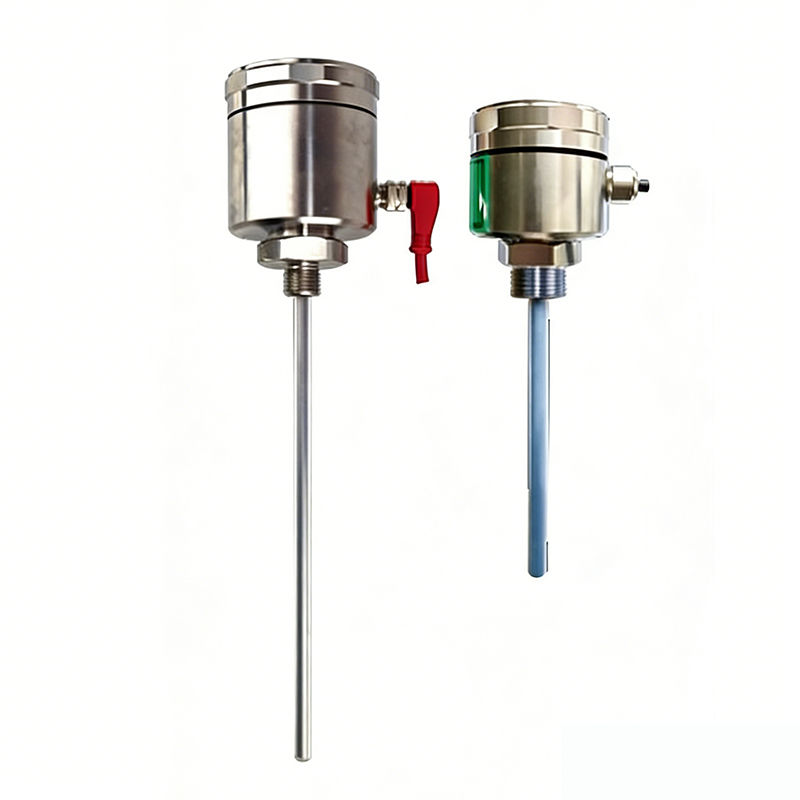

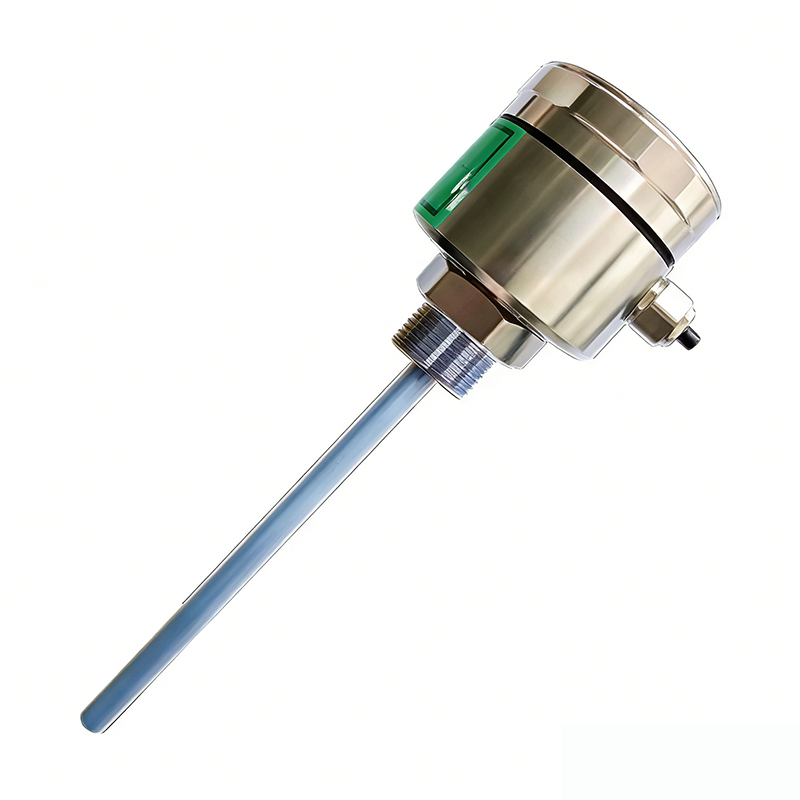

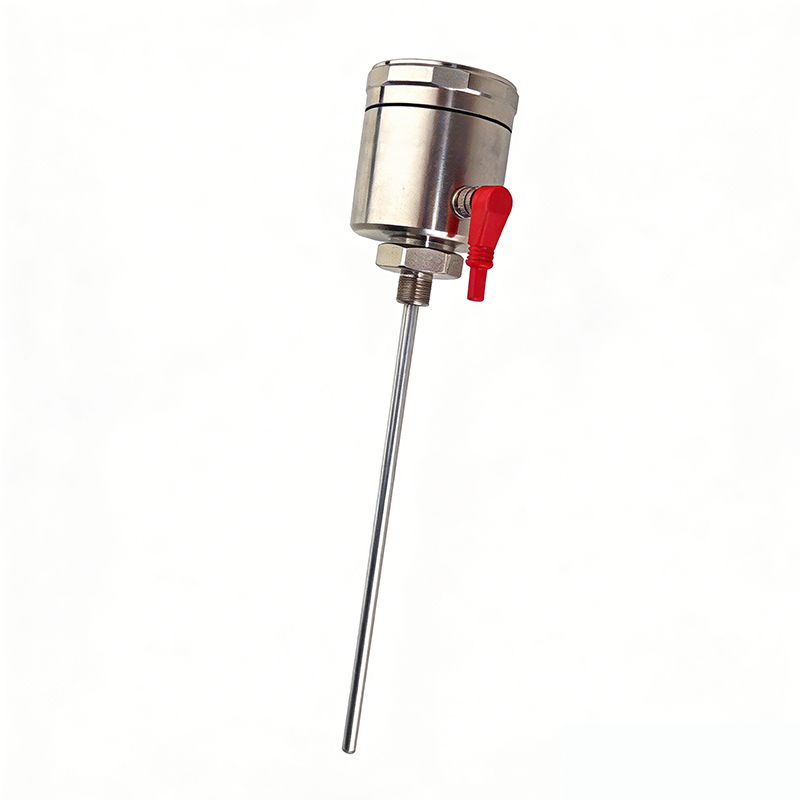

Working Principle
The SH-DR Series Capacitive Level / Liquid Level Meter is a high-performance capacitive level transmitter based on HART communication protocol. The instrument measures the level of medium inside the container by detecting the change of capacitance.
Inside the container, a capacitor is formed by the electrode rod and the container wall or another reference electrode. When the dielectric constant of the measured medium remains unchanged, a fixed frequency measurement voltage is applied to the electrode. The current flowing through the capacitor changes according to the height of the medium between the electrodes. This change is proportional to the liquid or material level and can be converted into a standard output signal for level monitoring.
Technical Characteristics
High precision measurement and wide application range.
High reliability with simple installation and maintenance.
Strong anti-interference ability and long-term stability.
Suitable for high temperature and high pressure vessels.
Measurement not affected by liquid temperature or density.
Measurement not affected by container shape or pressure.
Technical Parameter
| Power Supply Voltage | 24VDC |
| Signal Output | 4~20mA |
| Operating Temperature | -20~200°C |
| Working Pressure | 1.6MPa |
| Electrical Interface | M12*1 4-Core Connector 2m |
| Junction Box Material | SUS304 |
| Liquid Material | Stainless Steel Sleeve PTFE |
Typical Application
Acid And Alkali Liquid Measurement
Salt And Chemical Liquid Monitoring
Water And Sewage Treatment Systems
Chemical Raw Material Tanks
Feed And Grain Storage Measurement
Cement And Powder Level Monitoring
Coal Ash And Granular Solid Detection

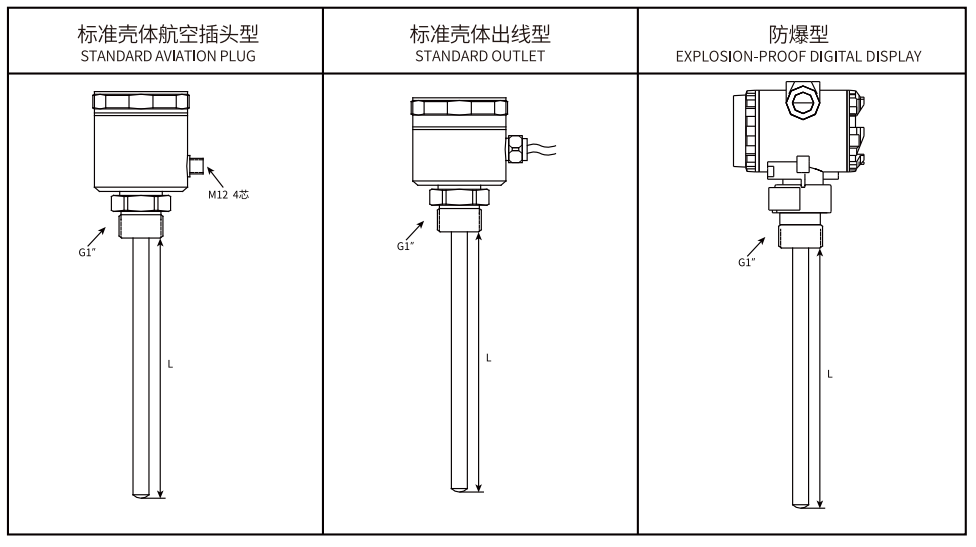

Product Type

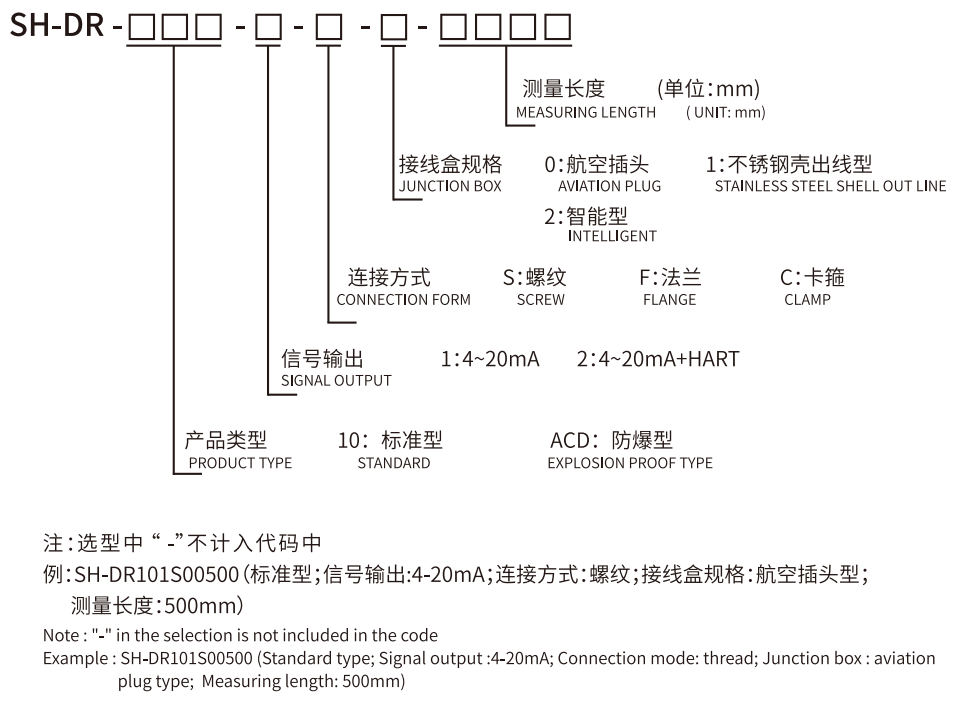

Product Selectiom Table
