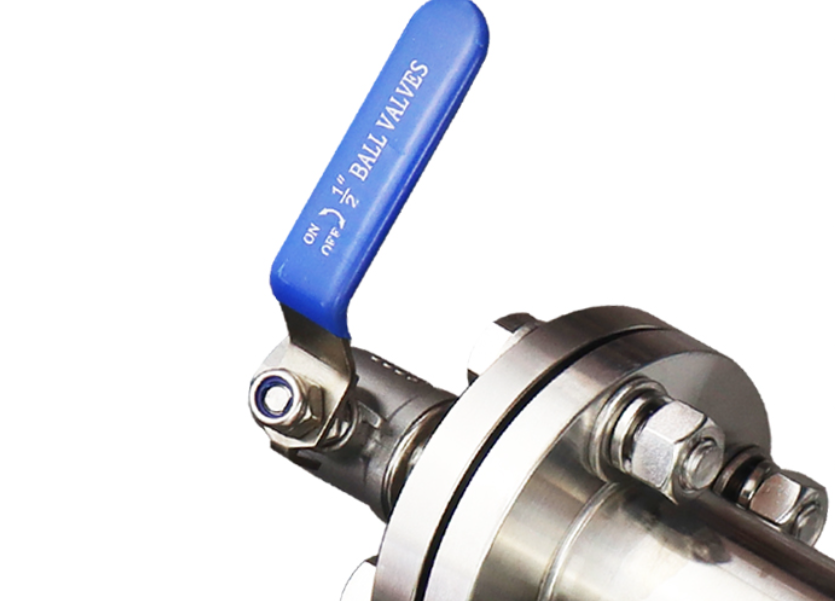

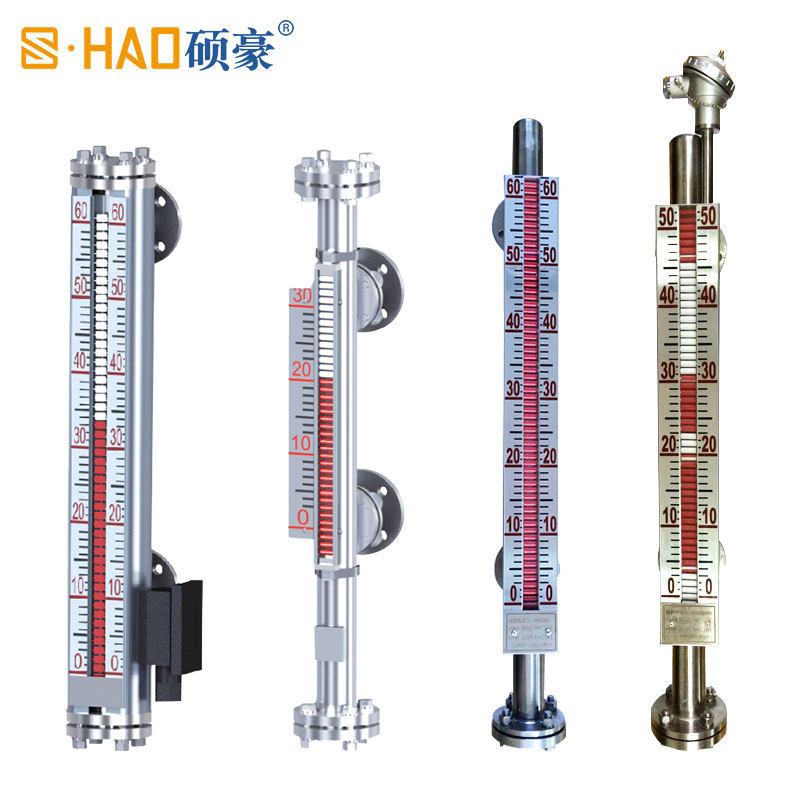

Working Principle
Magnetic flap level meter is the use of bulk tube and tank (or container equipment) to form a communicating device, so that the level of the two is the same. Under the action of liquid buoyancy, when the liquid level rises or falls, the float in the liquid surface rises or falls accordingly. The permanent magnetic steel in the float, under the action of magnetic coupling, drives the magnetic red and white flip beads to rotate 180°.

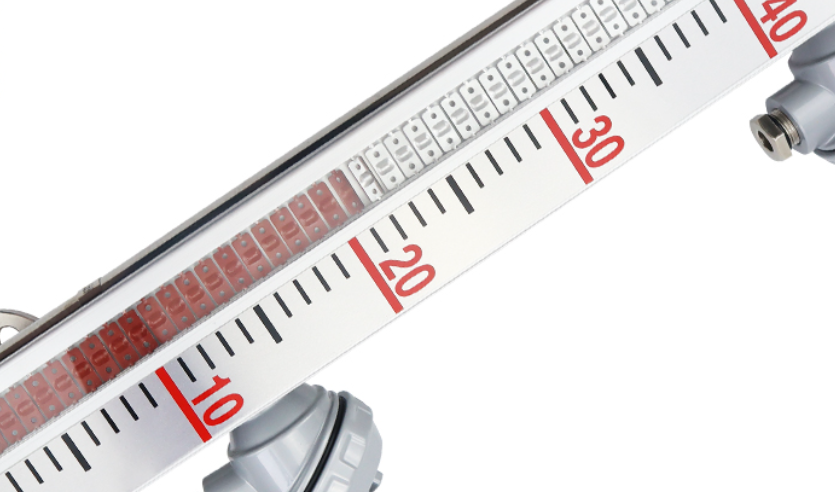

Through this process, the liquid level height can be clearly and intuitively indicated by the scale and the red-white dividing line on the panel. When equipped with a remote transmitter and magnetic switch, the instrument can also output 4-20mA signal or switch signal, making it suitable for remote monitoring and control applications.
Technical Characteristics
Suitable for high temperature, high pressure, strong acid and strong alkali conditions.
Simple structure, reliable performance and durable service life.
Can be equipped with a variety of optional accessories for easier control.
Can be fitted with liquid level transmitter and magnetic switch.
Accessories can be installed or adjusted without stopping operation.
Even if power supply is interrupted, the field magnetic switch is not affected.
Technical Parameter
Remote Power Supply: 24VDC
Signal Output: 4-20mA, SPST
Body Tube Material: SUS304
Color Material: Normal Temperature PP
High Temperature Color Material: Aluminum Alloy
Operating Temperature: -20~80°C
High Temperature Max.: 350°C
Working Pressure: 1.6MPa
Typical Application
Cloth Dyeing And Finishing Equipment
Wastewater Treatment
Power Plant
Chemical Equipment
Heat Medium Oil Boiler
Petrochemical Industry

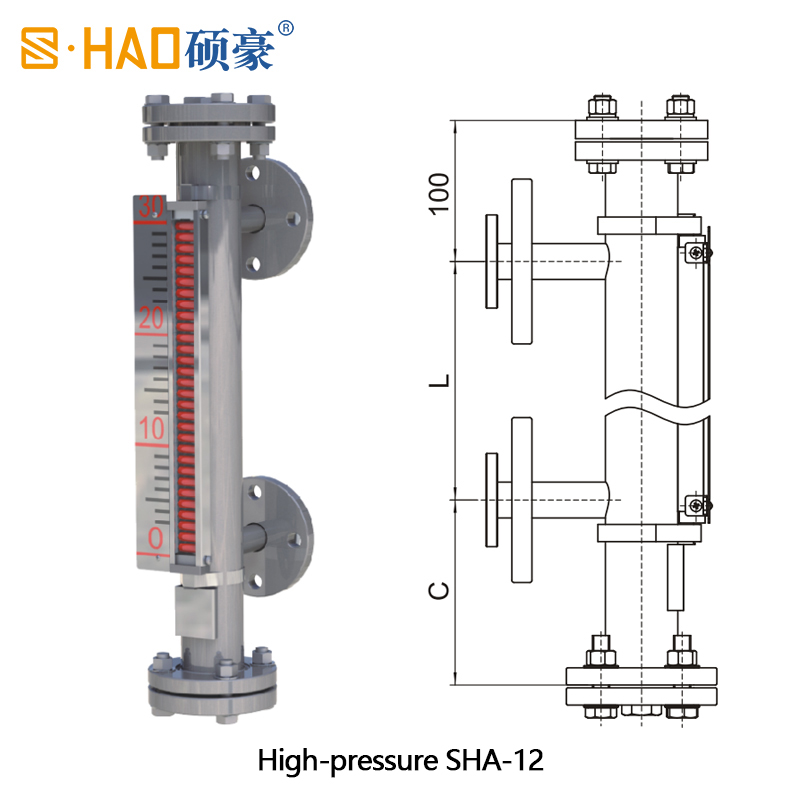

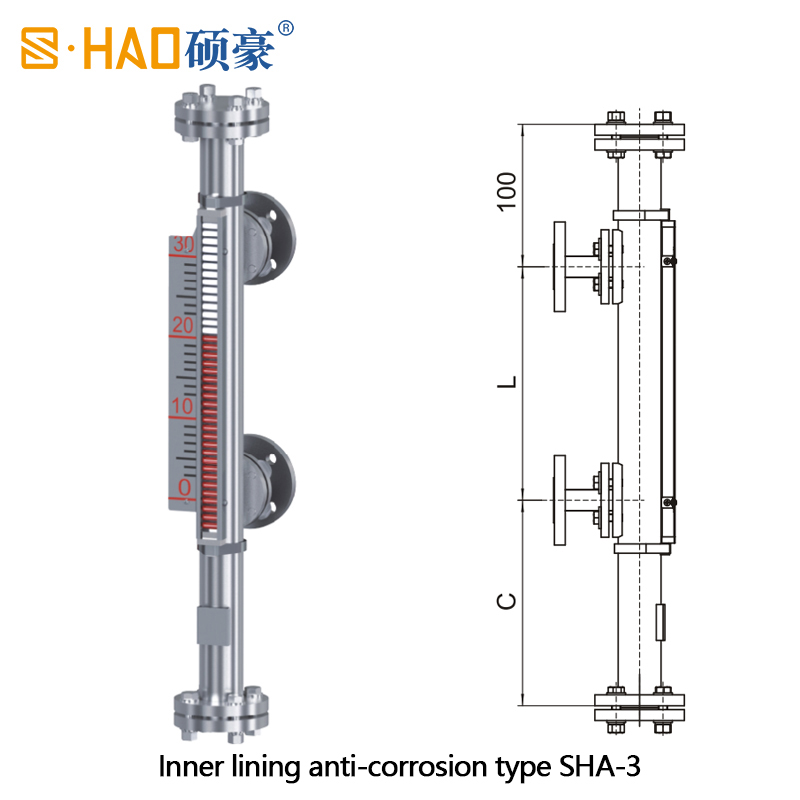

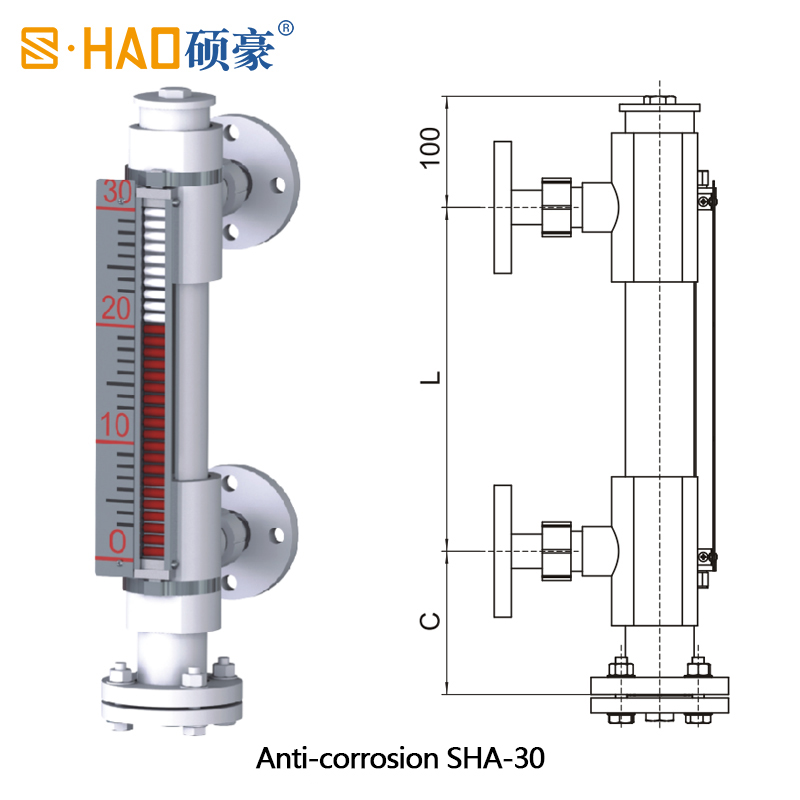

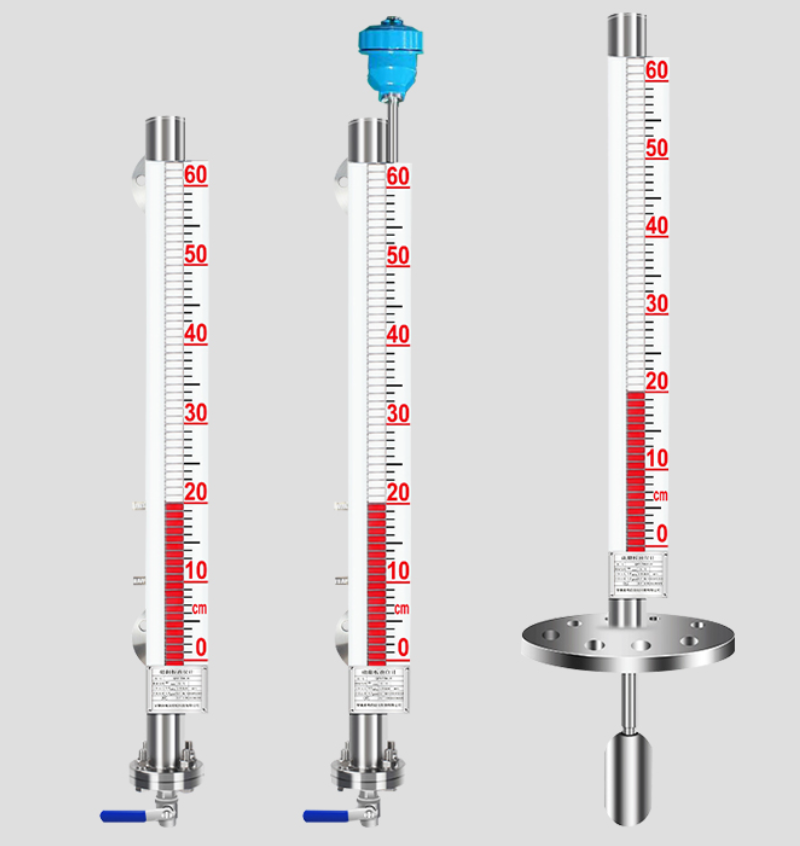

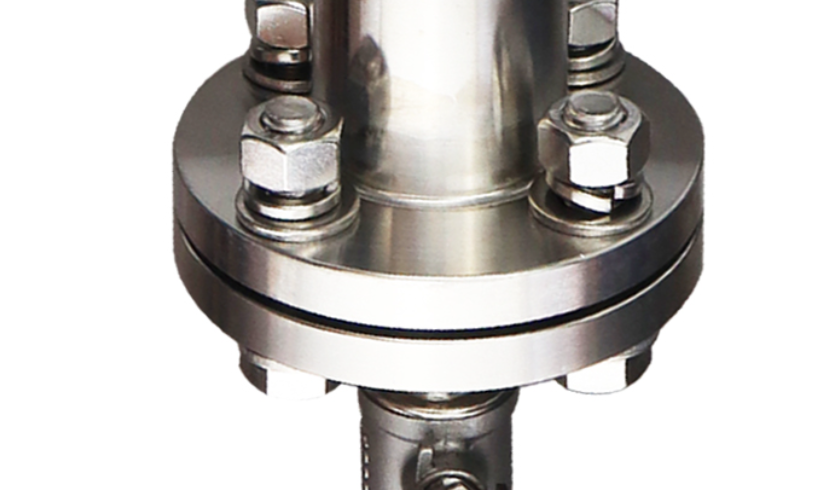

Product Type

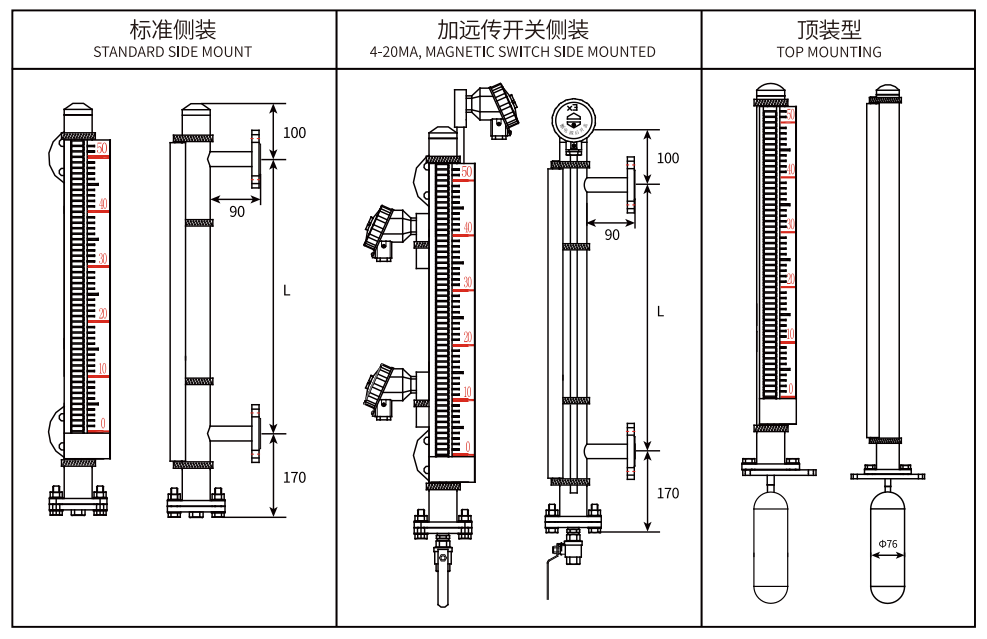

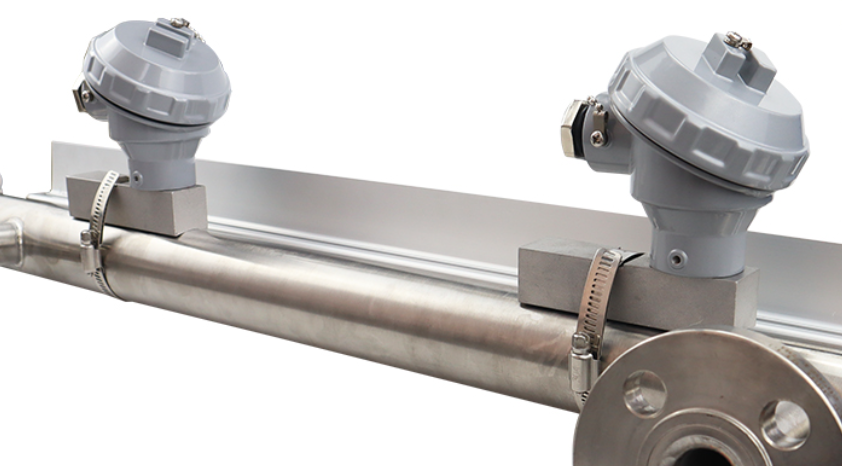

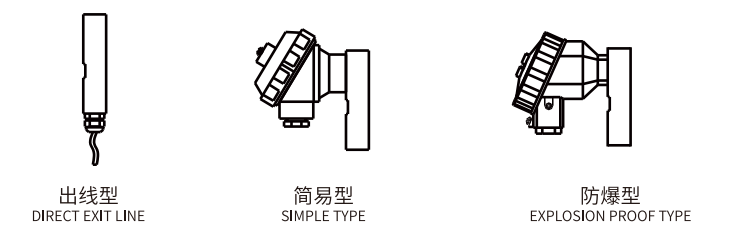

Magnet Switch Specification

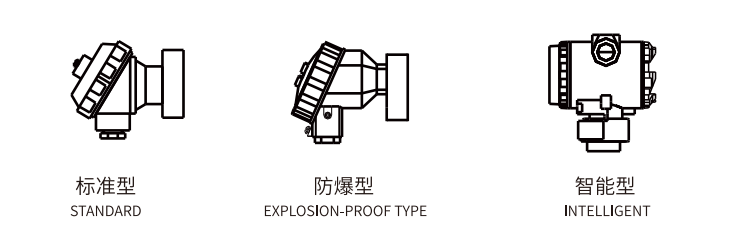

4-20ma Remote Transmission Specifications

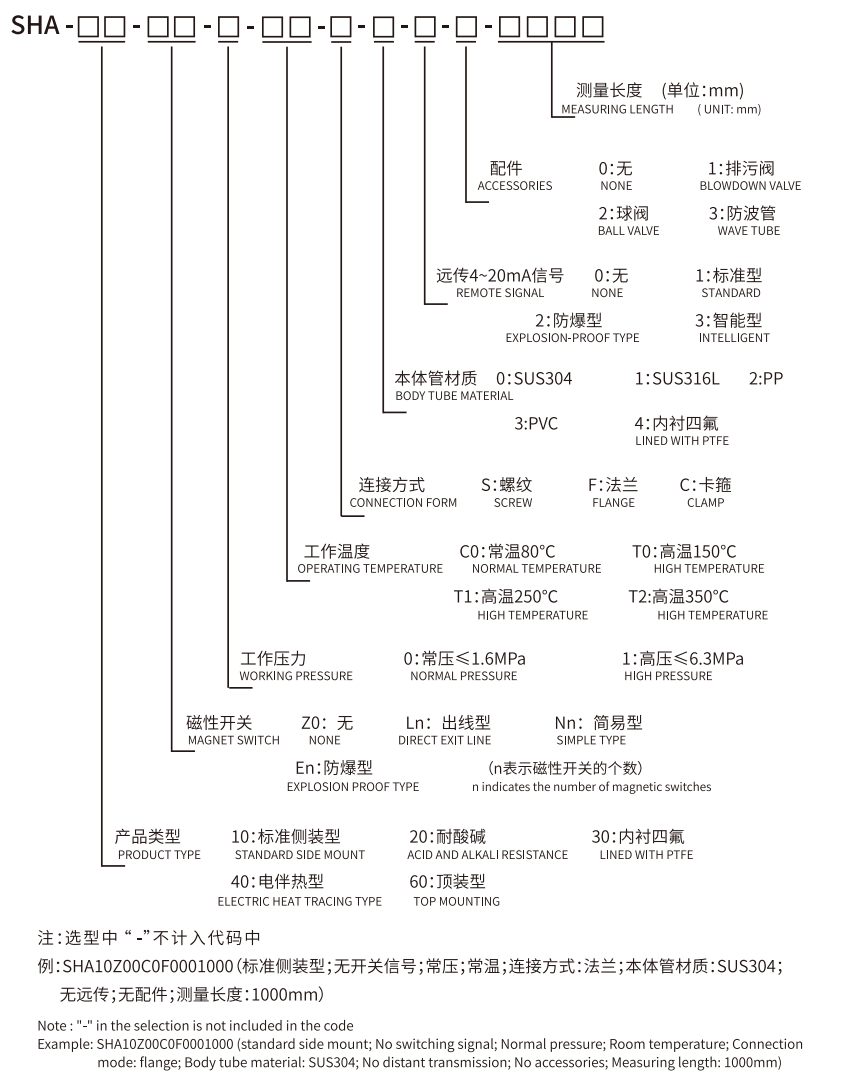

Product Selectiom Table
