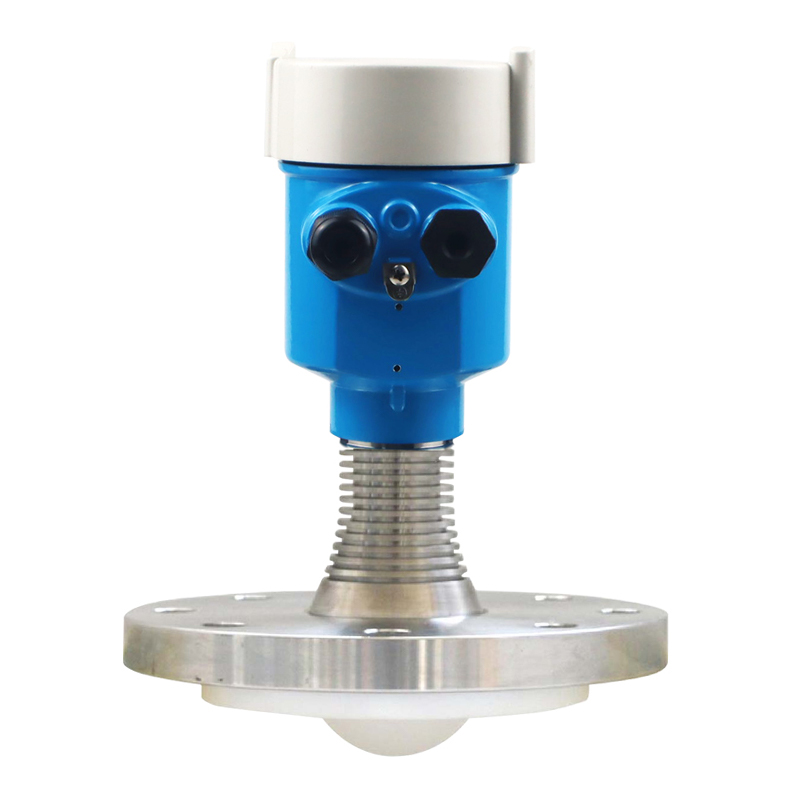

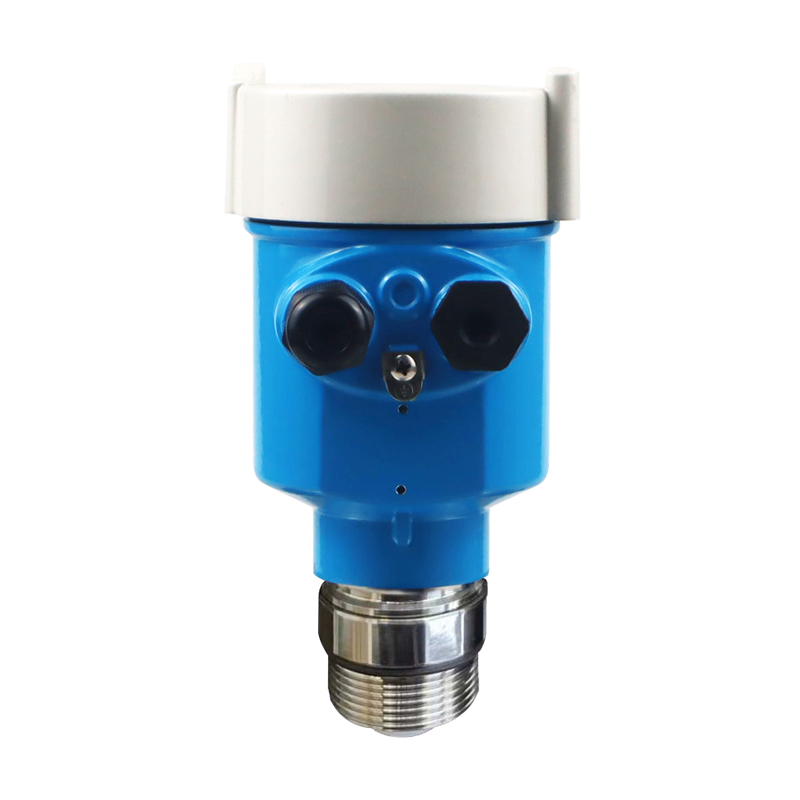

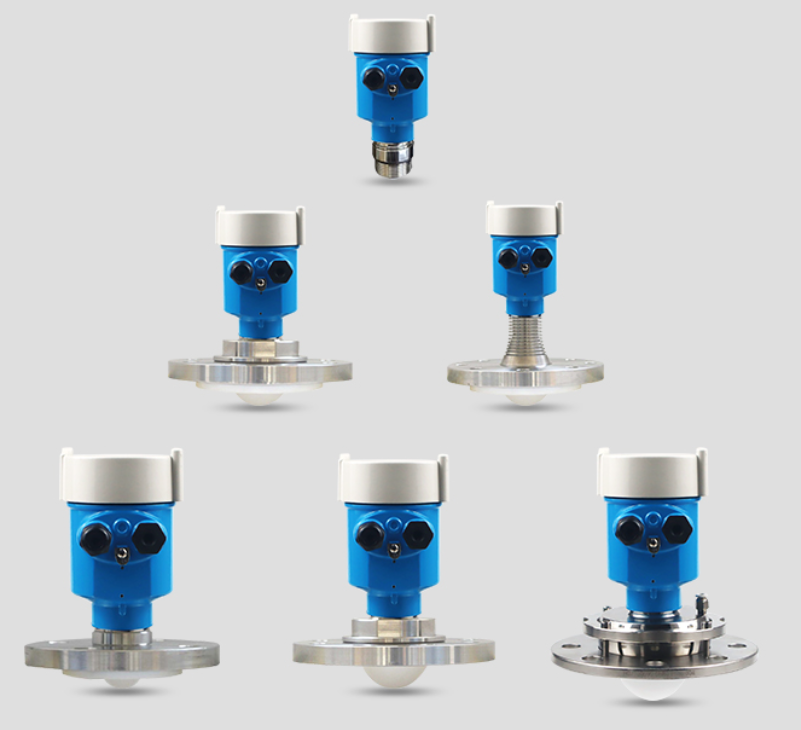

Working Principle
The SHR Series Radar Wave Solid / Liquid Level Gauge adopts 80GHz frequency modulated continuous wave (FMCW) radar technology. The radar transmits electromagnetic waves toward the measured medium, and the reflected signal is received and processed to calculate the distance between the sensor and the medium surface. Based on this distance, the instrument realizes continuous level measurement for solids and liquids. Due to its high operating frequency and shorter wavelength, the product provides better focusing ability and stable detection performance, especially in demanding industrial environments.
Technical Characteristics
Based on self-developed CMOS millimeter wave RF chip.
More compact RF architecture with smaller blind area.
5GHz working bandwidth provides high measurement resolution.

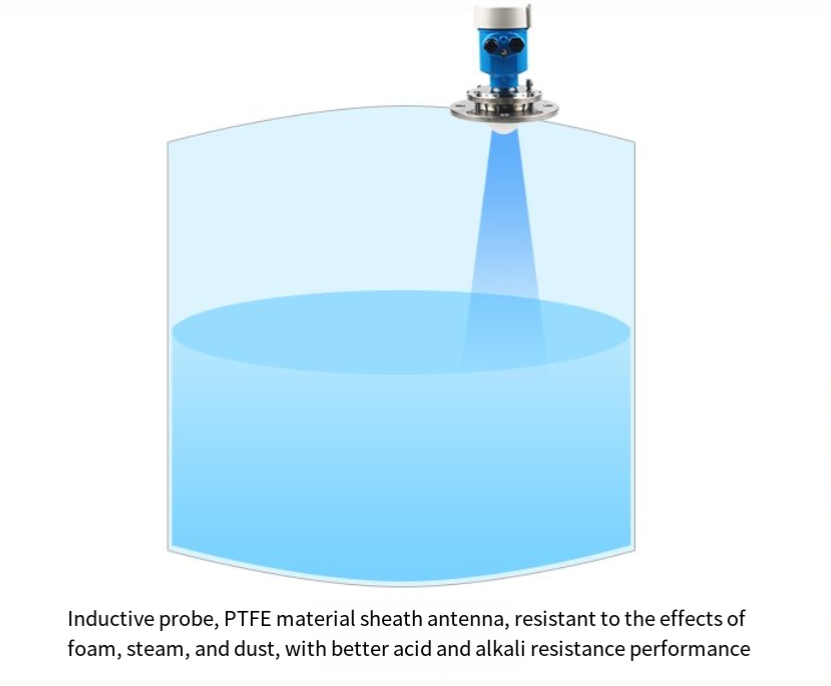

Narrow 3° beam angle reduces meter interference.
Shorter wavelength offers better reflection on solid surfaces.
Supports remote debugging to improve working efficiency.
Optional mobile phone Bluetooth debugging is available.

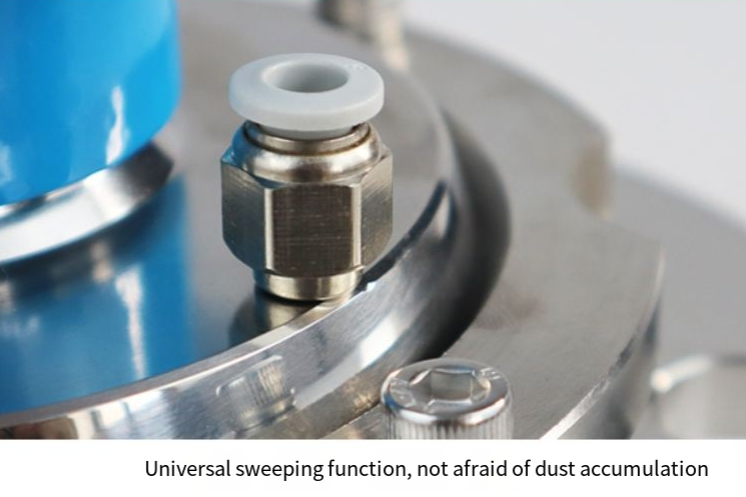

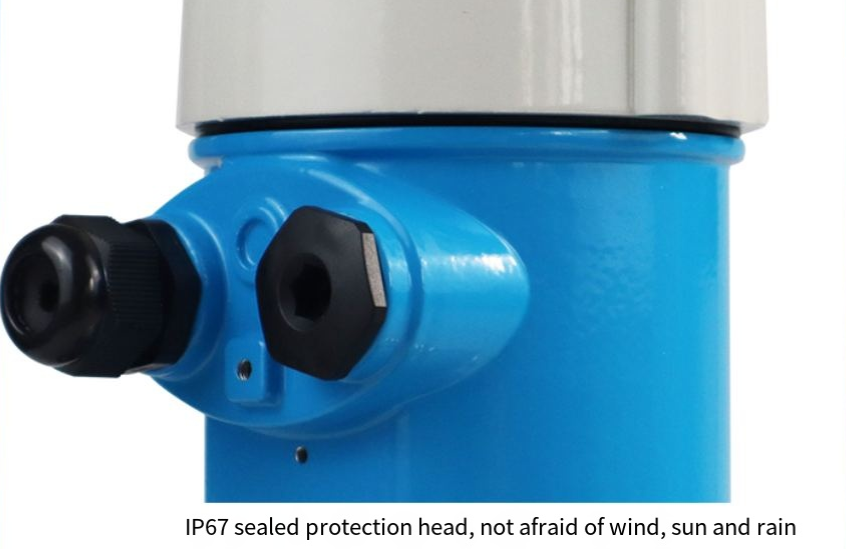

Suitable for dust and harsh high temperature environments.

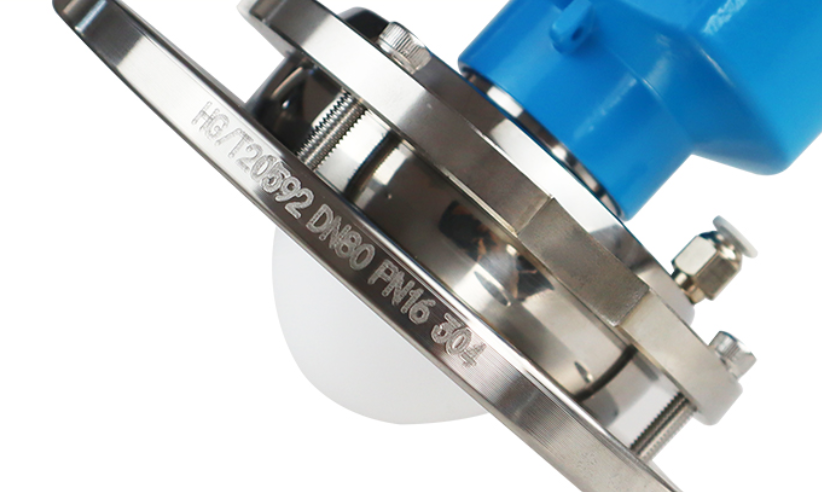

Technical Parameter
| Power Supply Voltage | 220VAC, 24VDC |
| Signal Output | 4~20mA, HART, RS485 |
| Measuring Range | 10~120m |
| Operating Temperature | -40~120°C |
| High Temperature Max. 220°C | |
| Working Pressure | -0.1~2.0MPa |
| Measurement Accuracy | ±1mm |
| Explosion-Proof Class | ExibIIC T6 Gb |
Communication And Debugging

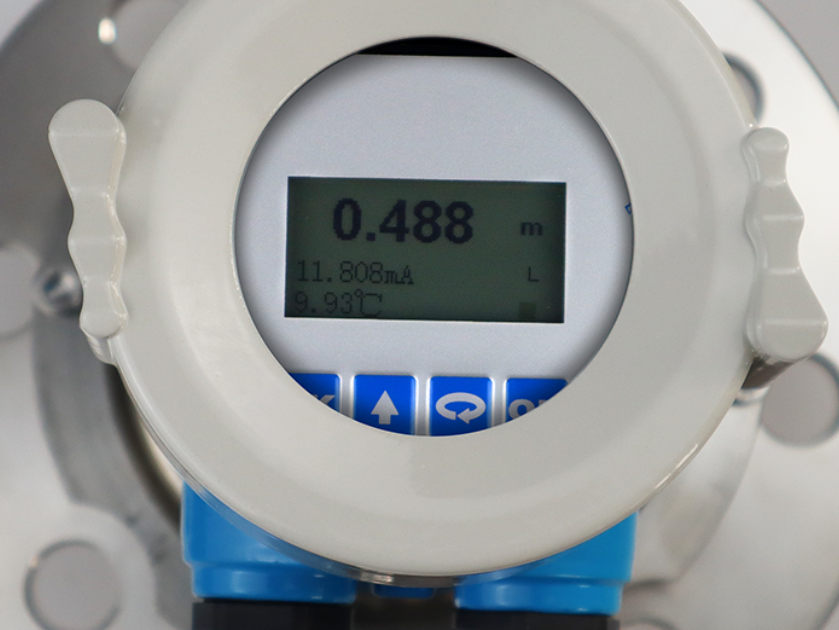

Instrument debugging can be carried out on site through an LCD display or on a PC using the optional upper computer software.
80GHz SHR series products communicate with PCs in the following ways:
USB To RS485 Serial Cable (Four-Wire System)
USB To TTL Serial Cable (Two-Wire System)
USB To Hart-Modem (Two-Wire System) For CommunicationBluetooth Debugging Through The Optional Bluetooth Module, Making Field Debugging Safer And More Convenient
Remote Debugging Through The Optional Remote Module Via The 4G Network
Typical Application
Chemical Industry
Petroleum Industry
Pharmaceutical Industry
Papermaking Industry
High Temperature Liquid Monitoring
Strong Corrosive Liquid Monitoring
Stirring Tank Level Measurement
Water Vapor Condensation Applications

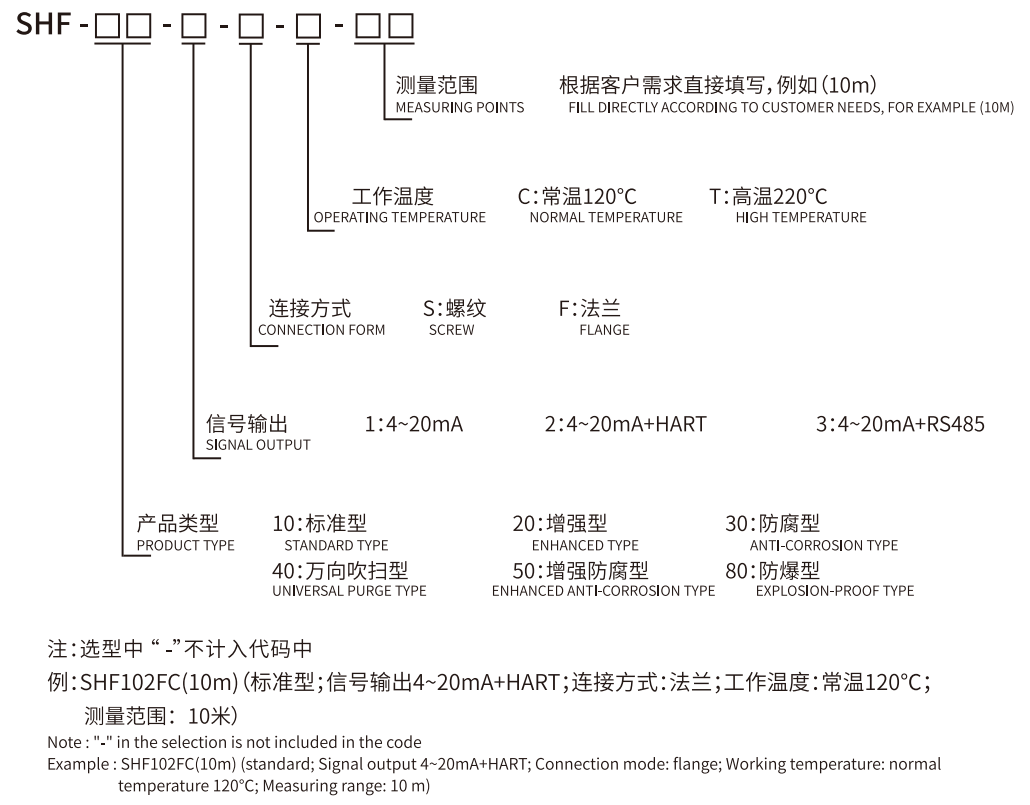

Product Selectiom Table
