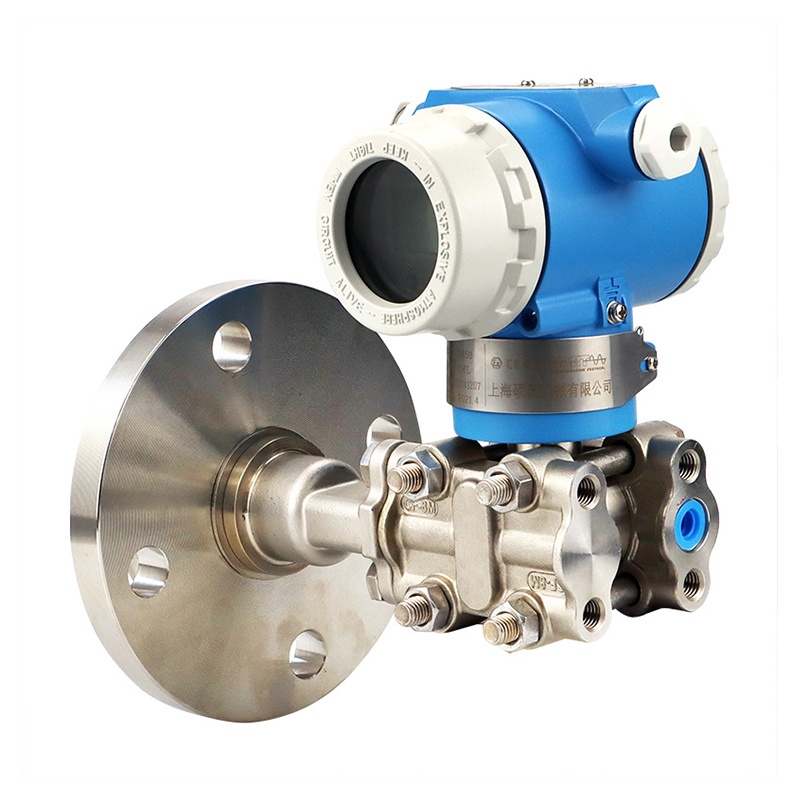

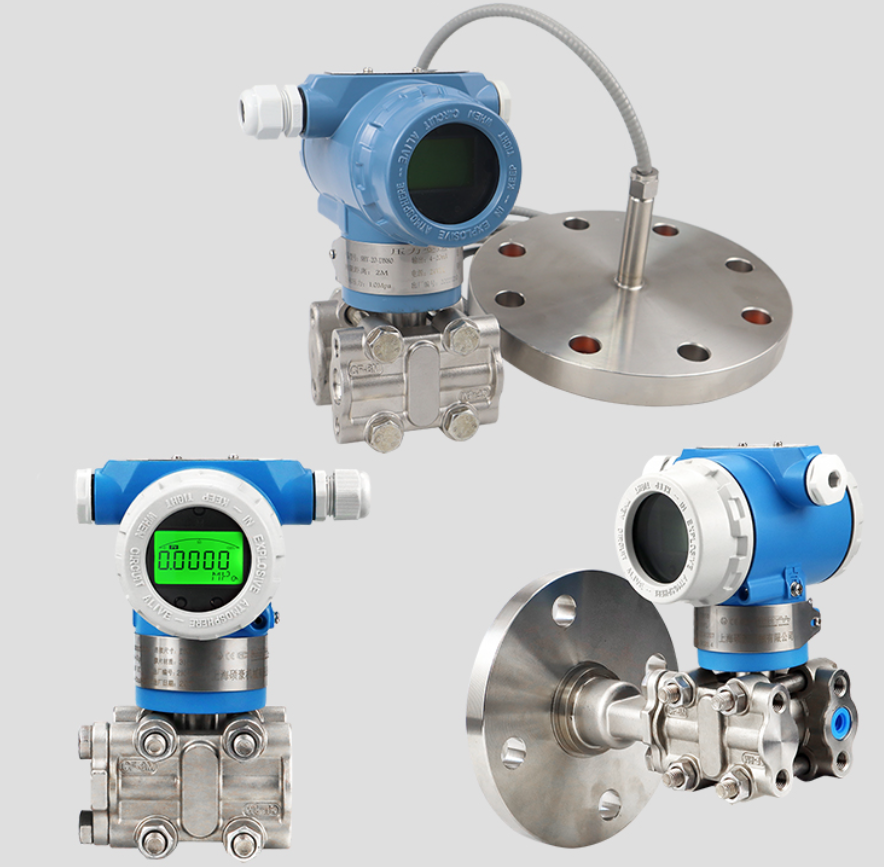

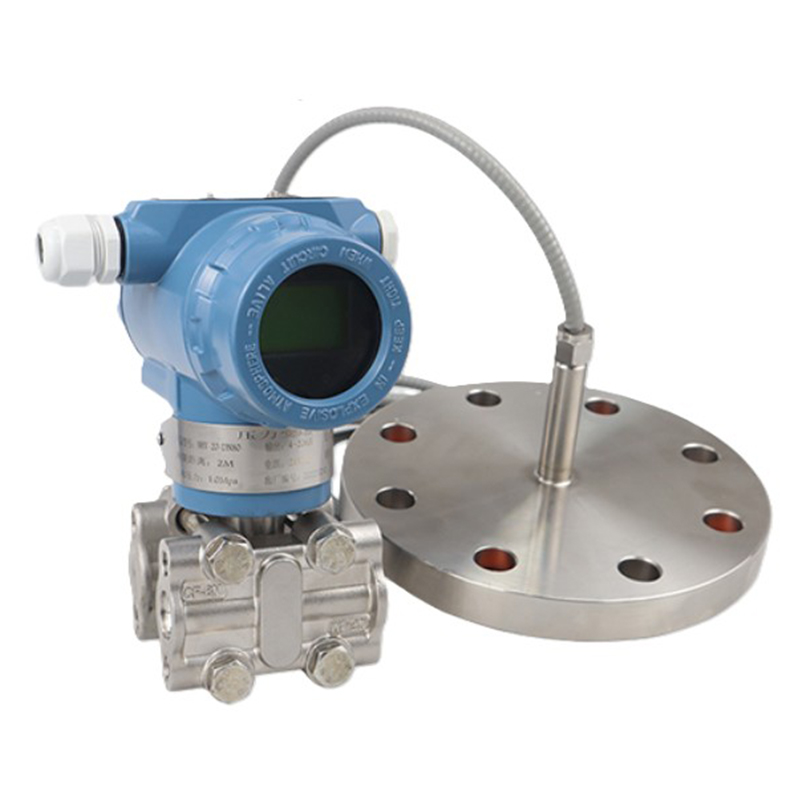

Working Principle
The SHY Series Differential Pressure Transmitter is designed to measure the pressure difference between two ends of a process system. It uses a high-precision monocrystalline silicon differential pressure sensor combined with temperature compensation technology to convert pressure difference into a stable electrical output signal.
The product adopts an overload protection diaphragm design and internal circuit surge protection design. During operation, the pressure from both sides acts on the sensing element, and the internal circuit converts the detected pressure difference into a standard signal output for transmission, display, and control. It can be used for accurate measurement of gauge pressure, differential pressure, flow, and liquid level in industrial processes.
Technical Characteristics
Adopts high precision monocrystalline silicon sensor.
Equipped with LCD display head for local indication.
Supports both remote transmission and local adjustment.
Zero point and range can be adjusted on site.
Good stability for long-term industrial operation.
Suitable for high static pressure applications.
Overload protection design improves durability.
High precision with strong anti-interference ability.
Technical Parameter
| Range | -100kPa~+4MPa |
| Range Customizable | |
| Pressure Type | Gauge Pressure, Differential Pressure |
| Power Supply Voltage | 24VDC |
| Precision | ±0.1%FS, ±0.075%FS |
| Signal Output | 4~20mA / 4~20mA + HART Protocol |
| Operating Temperature | -20~100°C |
| Zero Temperature Drift | ±0.1%FS / 70°C |
| Insulation Resistance | ≥100MΩ / 500VDC |
| 200MΩ / 250VDC |
Structural Characteristic

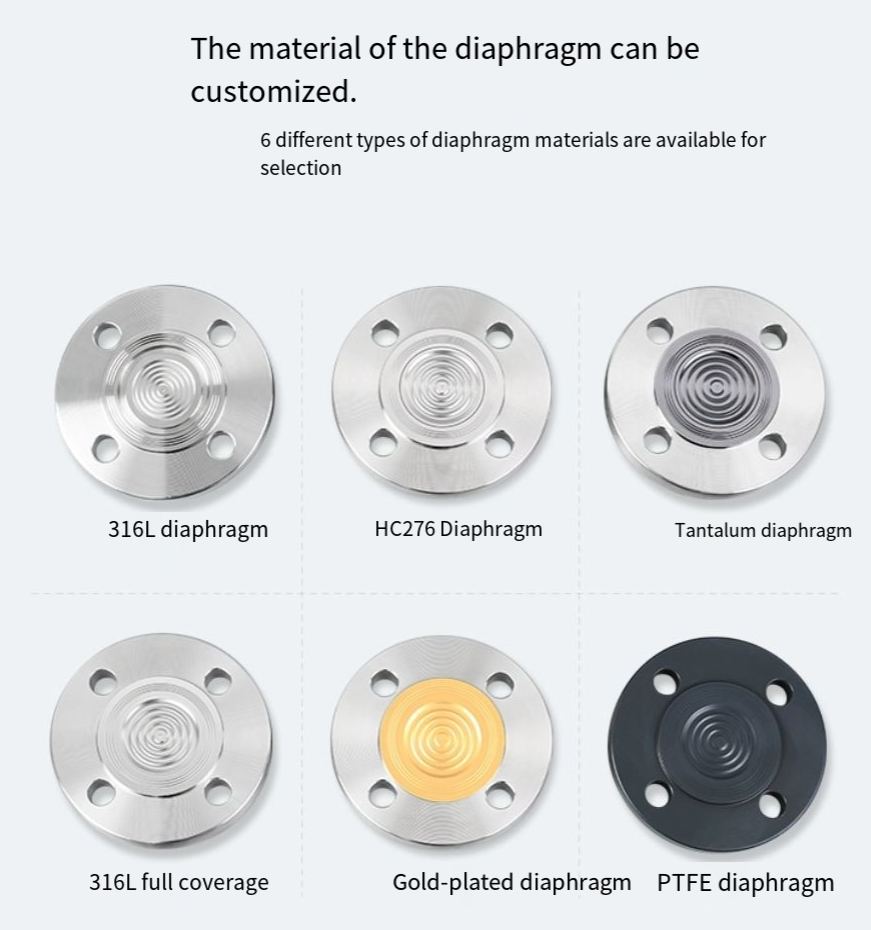

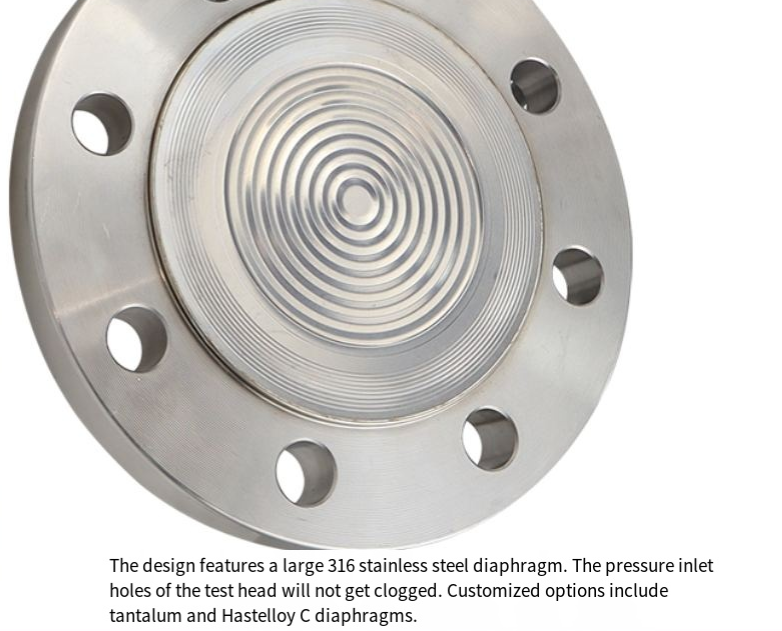

Diaphragm Material: SUS316L (Hastelloy C Or Tantalum Optional)
Exhaust / Drain Valve: SUS304O-Ring: Fluororubber (In Contact With Measuring Medium)
Filling Fluid: Silicone Oil

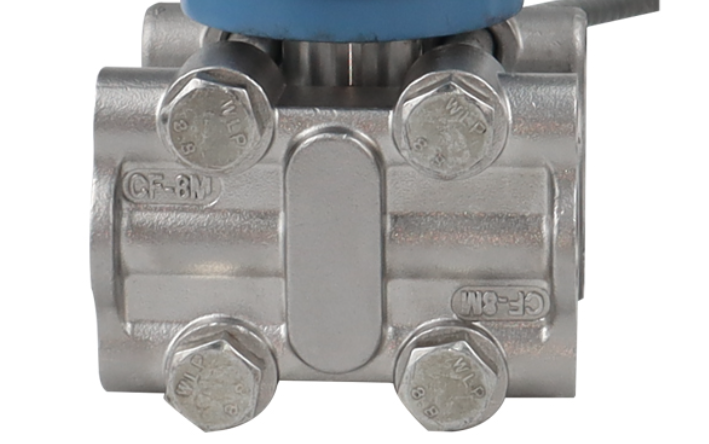

Flange And Clamp Block: SUS304
Shell Material: Die-Cast Aluminum With Epoxy Resin Coating
Electrical Interface: M20×1.5
Process Interface:
M20×1.5 With Welded Pipe
304 Three-Valve Group M20×1.5 With Welded Pipe304 Three-Valve Group NPT1/4(F), NPT1/2
NPT1/4(F) Default
Typical Application
Petroleum Industry
Chemical Industry
Metallurgy Industry
Electric Power Industry
Food Industry
Papermaking Industry
Pharmaceutical Industry
Machinery Manufacturing
Scientific Experiment
Aviation And Military Industries

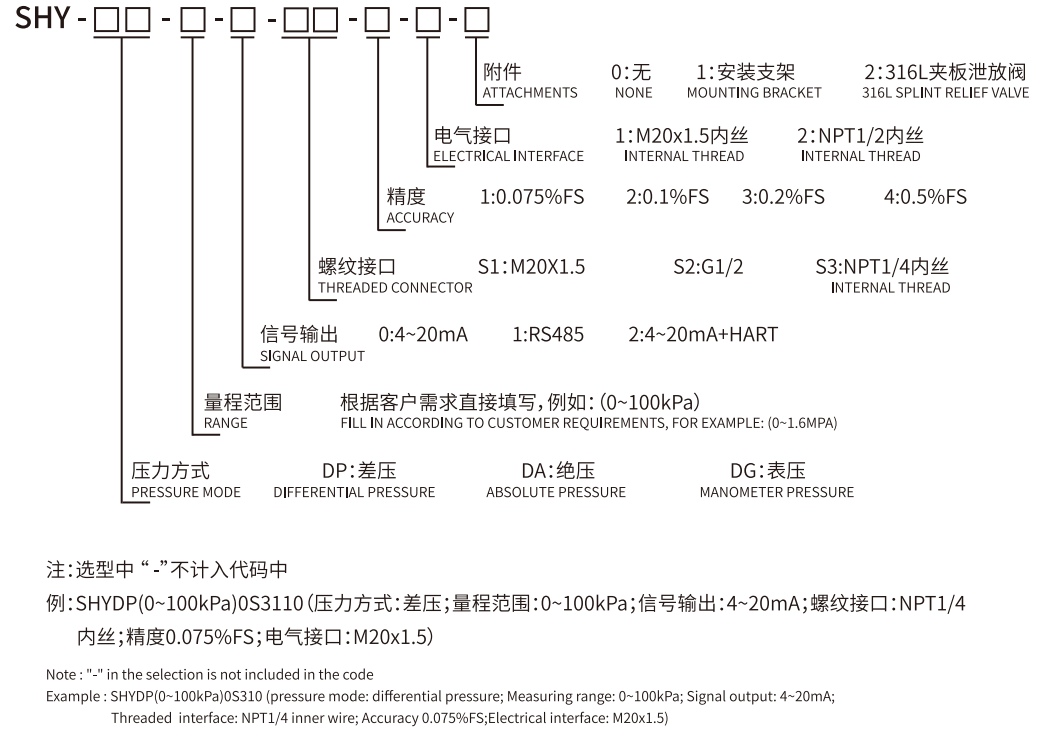

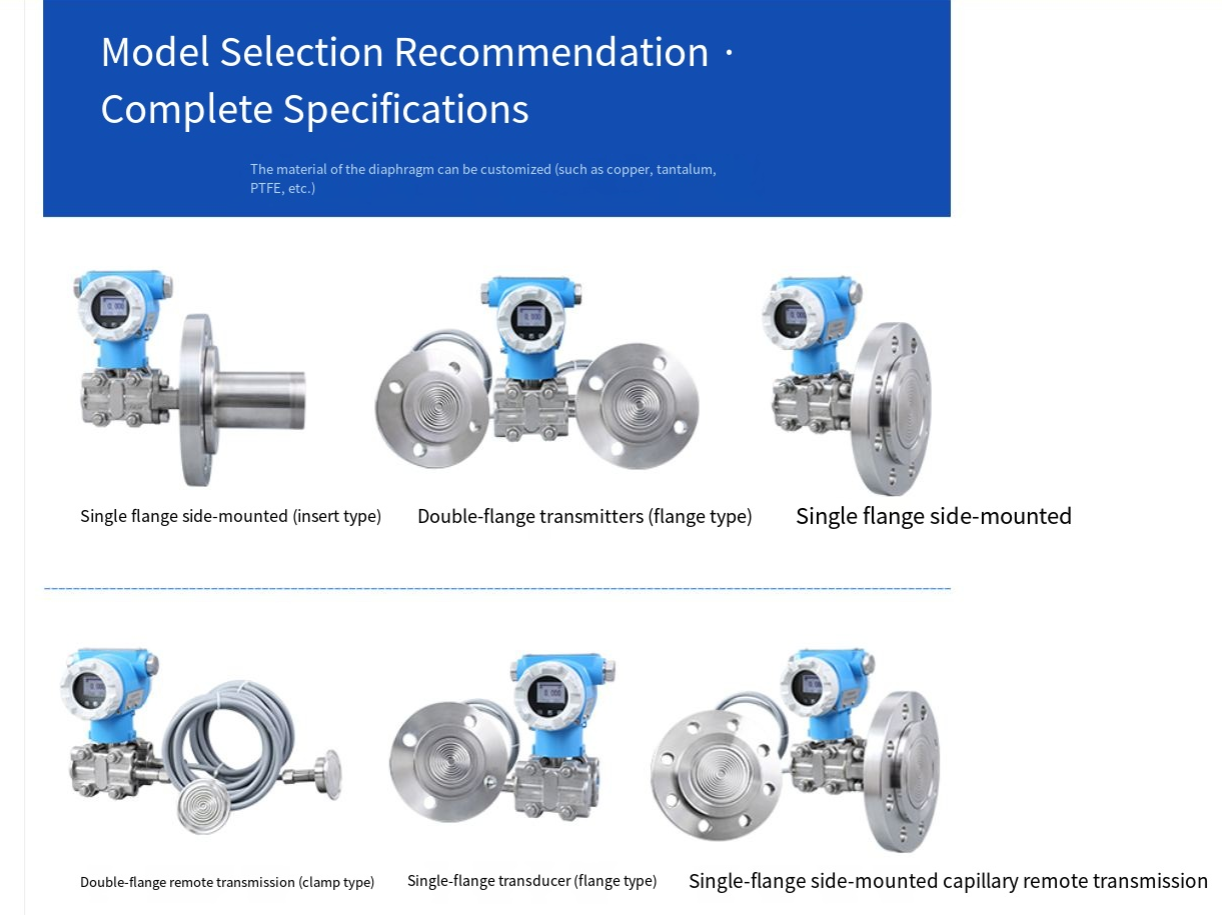

Product Selectiom Table
