Working Principle

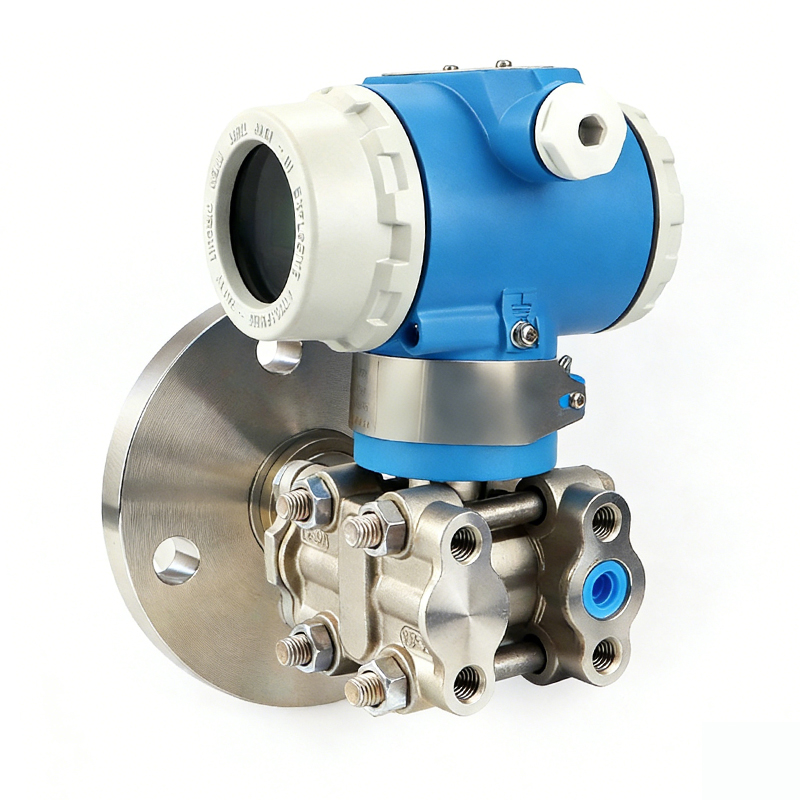

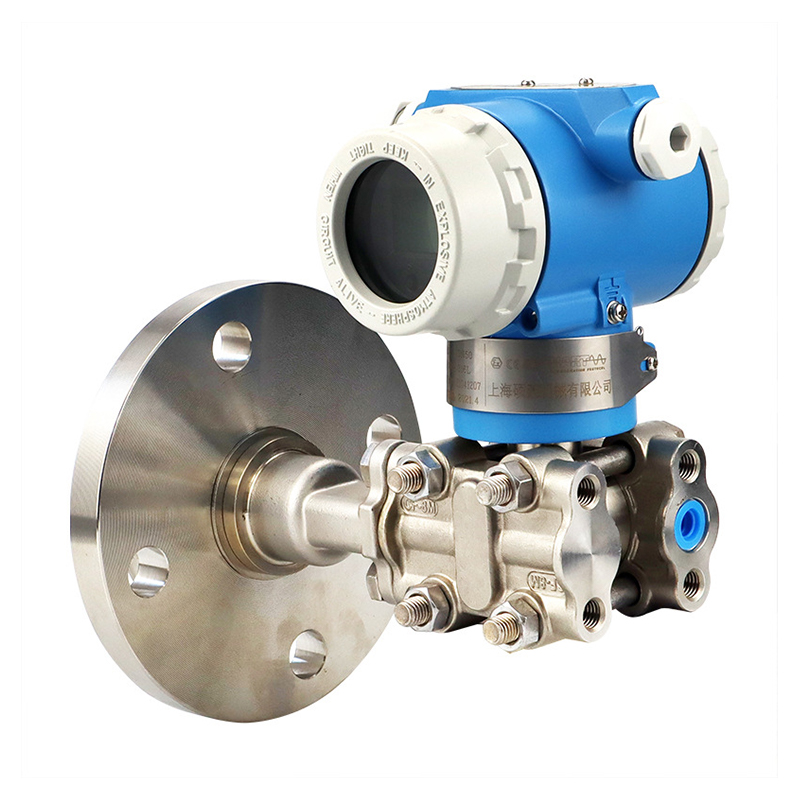

The SHY Series Flange Type Differential Pressure Transmitter is used to measure the pressure difference between two ends of a process system. It adopts high-precision monocrystalline silicon differential pressure sensing technology together with temperature compensation technology to convert the measured differential pressure into a stable electrical output signal.
The product features an overload protection diaphragm design and internal circuit surge protection design. During operation, the pressure on both sides acts on the sensing unit, and the internal electronics convert the detected differential pressure into a standard output for transmission, display, and process control. It can be used for accurate measurement of gauge pressure, differential pressure, flow, and liquid level.
Technical Characteristics
Adopts high precision monocrystalline silicon sensor.
Equipped with LCD display head for local indication.
Supports both remote transmission and local zero adjustment.
Range adjustment can be carried out on site.
Good stability for long-term industrial use.
Suitable for high static pressure applications.
High overload protection improves operating safety.
Strong resistance to frequency conversion interference.
Structural Characteristic
Diaphragm Material: SUS316L (Hastelloy C Or Tantalum Optional)
Exhaust / Drain Valve: SUS304
O-Ring: Fluororubber (In Contact With Measuring Medium)
Filling Fluid: Silicone Oil
Flange And Clamp Block: SUS304
Shell Material: Die-Cast Aluminum With Epoxy Resin Coating
Electrical Interface: M20×1.5
Technical Parameter
| Range | -100kPa~+7MPa |
| Reliable Customization Within The Range | |
| Pressure Type | Gauge Pressure, Differential Pressure |
| Power Supply Voltage | 24VDC |
| Precision | ±0.1%FS, ±0.2%FS, ±0.5%FS |
| Signal Output | RS485 / 4~20mA + HART Protocol |
| Operating Temperature | -20~100°C |
| Zero Temperature Drift | ±0.1%FS / 70°C |
| Insulation Resistance | ≥100MΩ / 500VDC |
| 200MΩ / 250VDC |
Typical Application
Petroleum Industry
Chemical Industry
Metallurgy Industry
Electric Power Industry
Food Industry
Papermaking Industry
Pharmaceutical Industry
Machinery Manufacturing
Scientific Experiment
Aviation And Military Industries

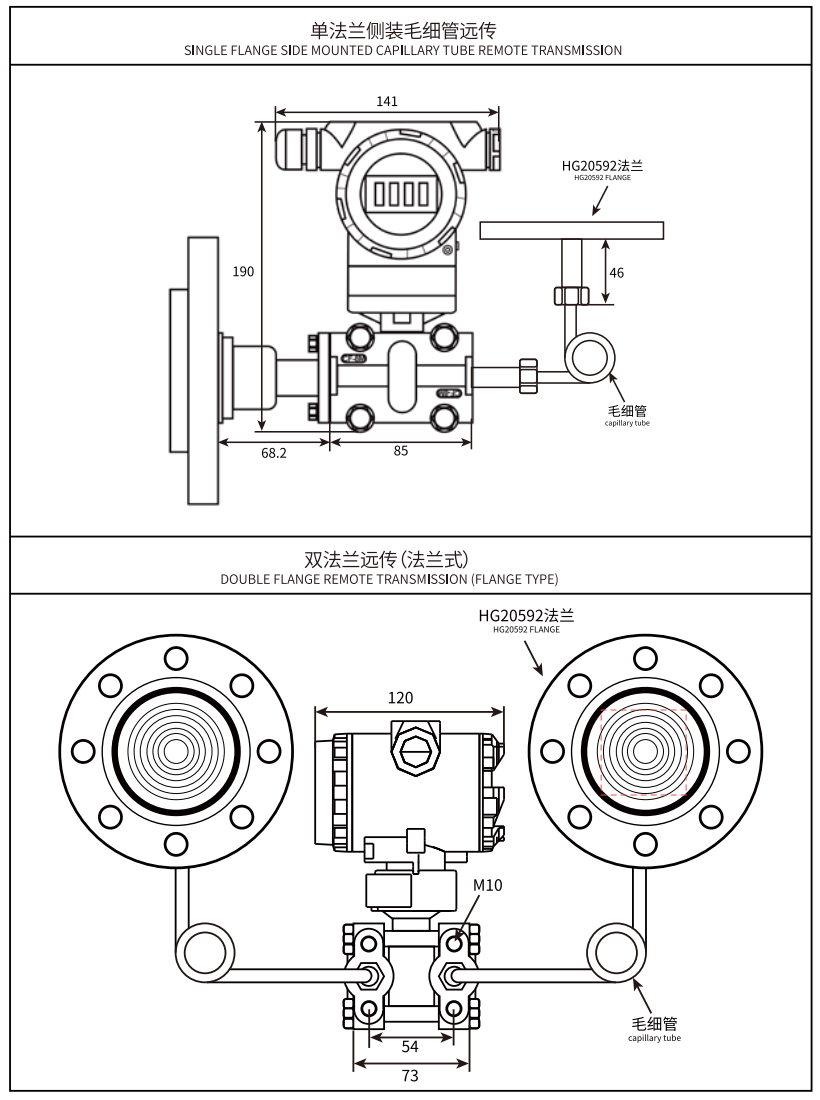

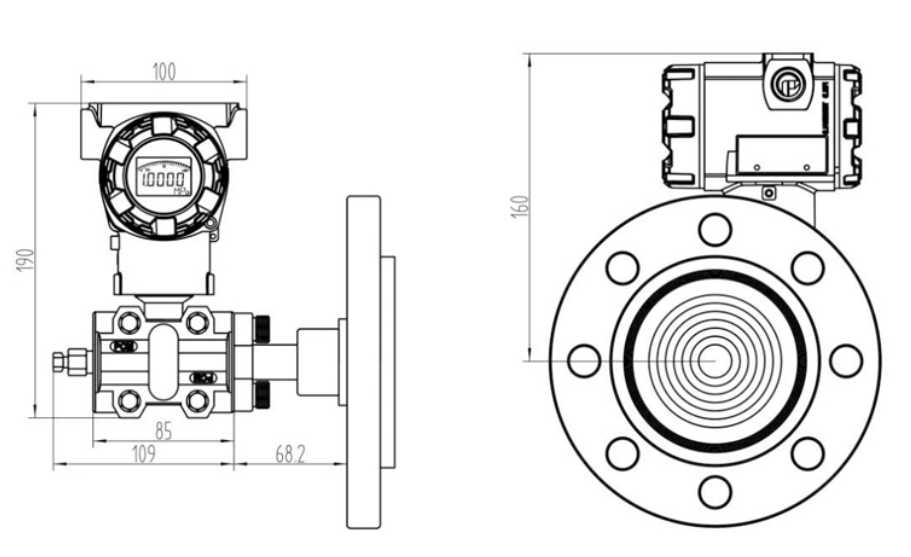

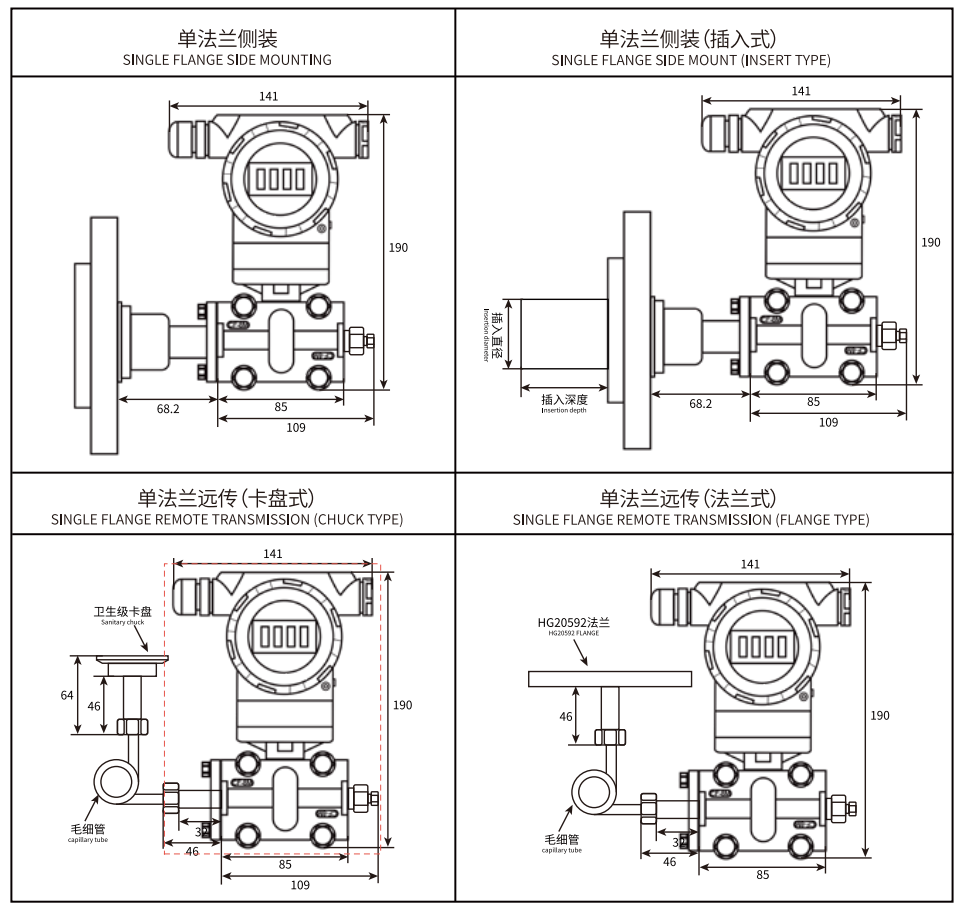

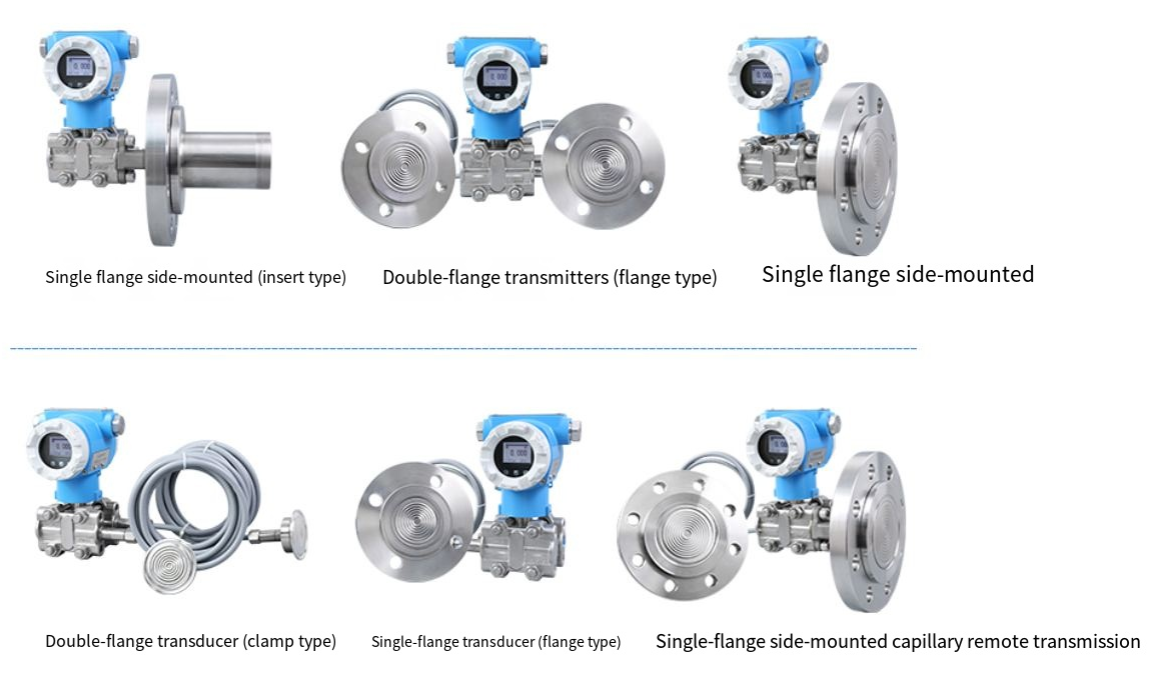

Product Type

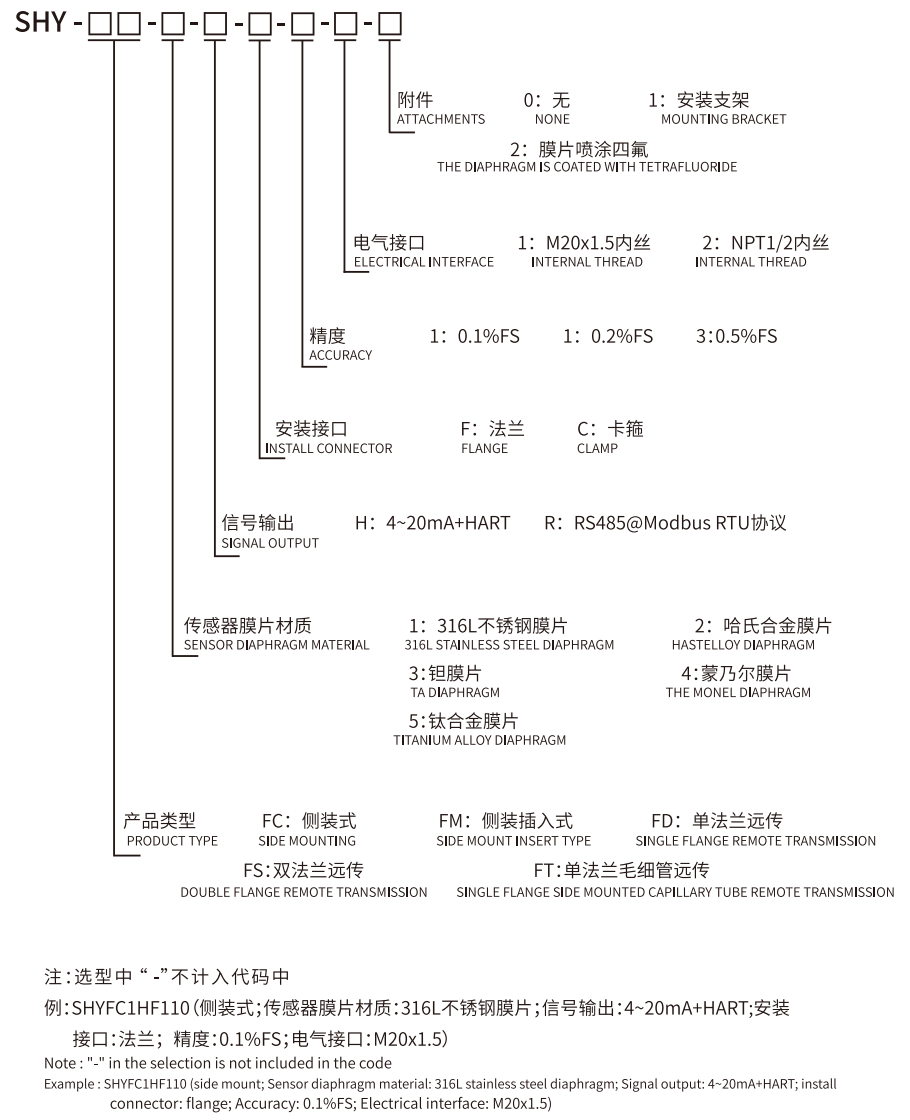

Product Selectiom Table
