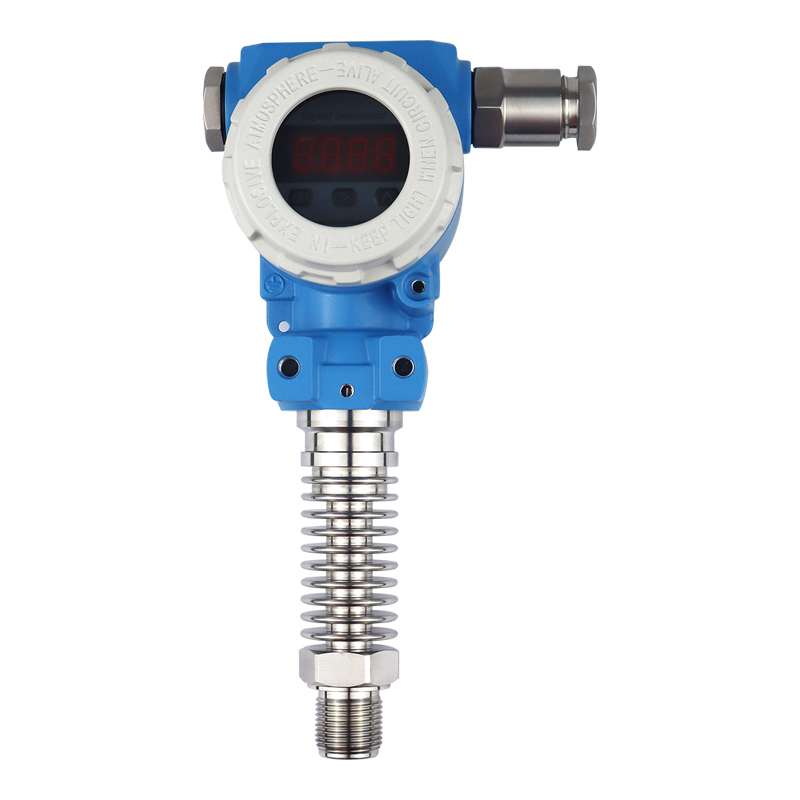

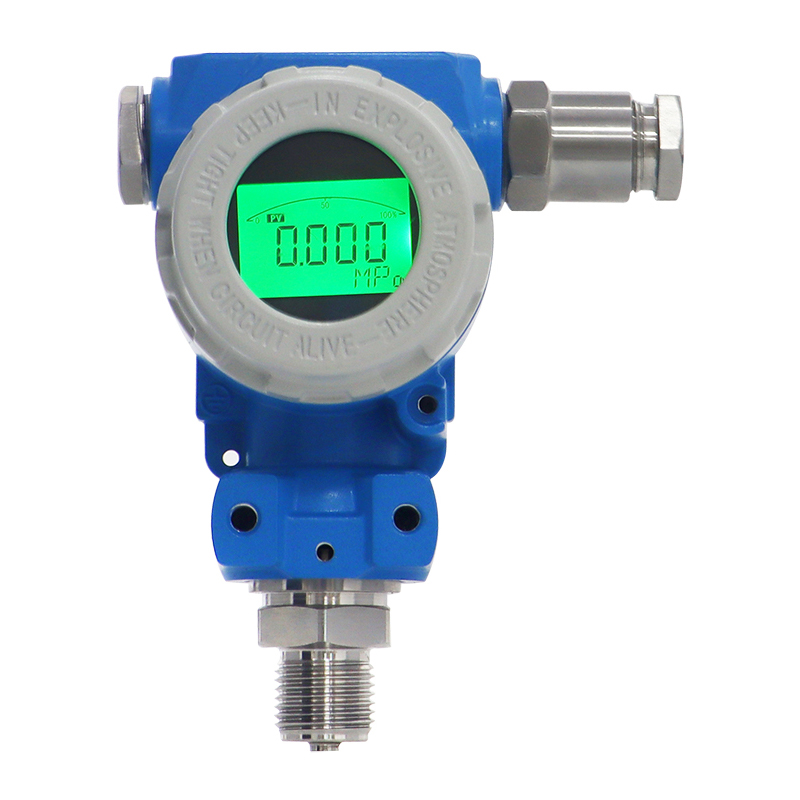

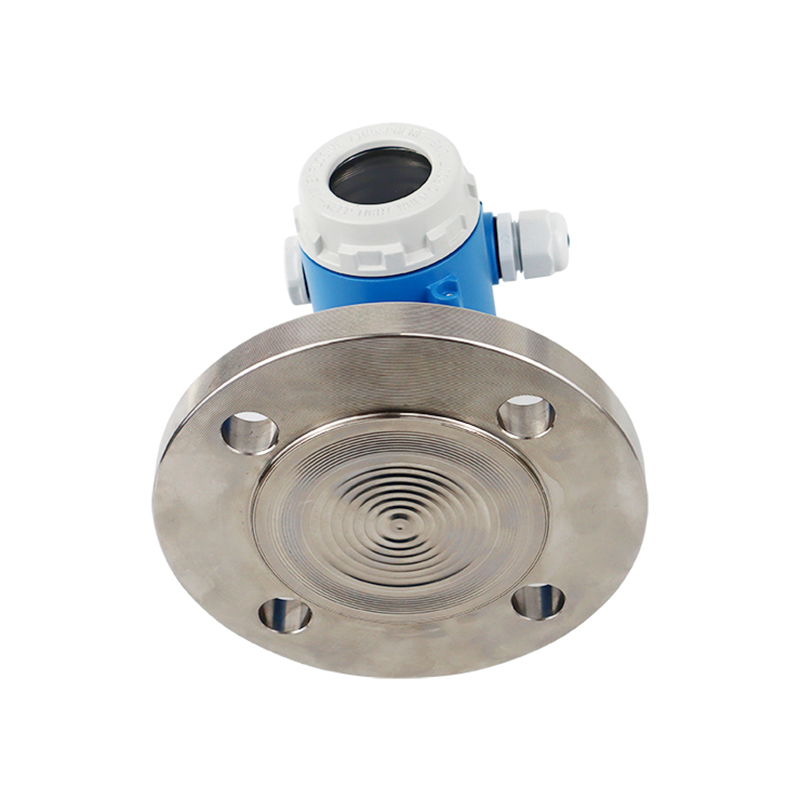

Working Principle

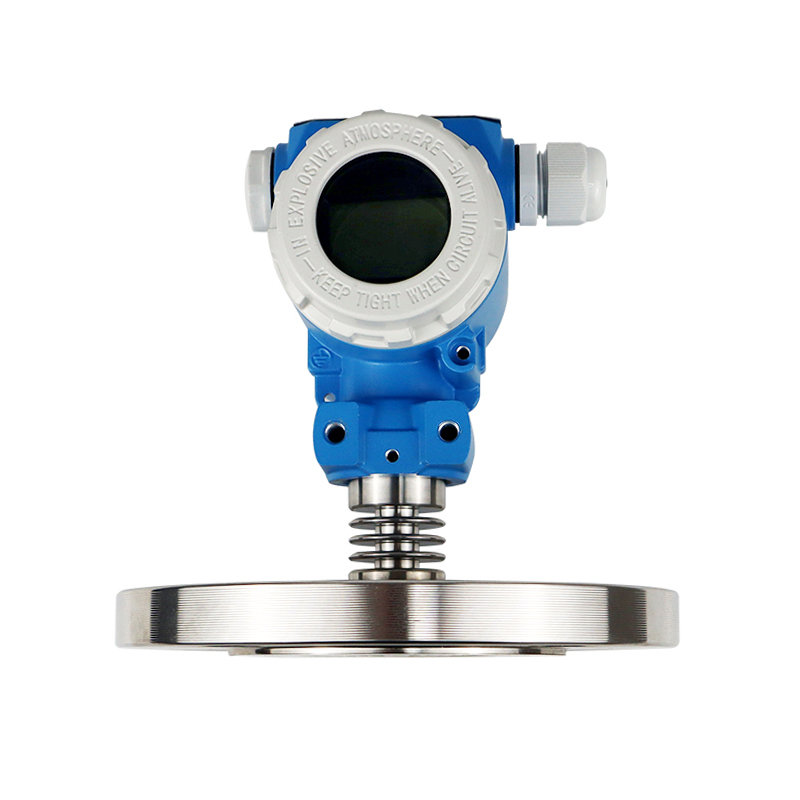

The SHY Series Pressure Transmitter is a device that converts pressure into a standard electrical signal for control and remote transmission. It is mainly composed of a piezoresistive semiconductor bridge pressure sensor. When pressure is applied to the isolation diaphragm, the pressure is transmitted through silicone oil to the semiconductor sensing element. The unbalanced voltage generated at both ends of the bridge is amplified and then converted into a standard output signal such as 4-20mA, so that the measured pressure can be displayed, transmitted, and used for process control.
Technical Characteristics
Imported diffused silicon sensor for stable measurement.
316L stainless steel diaphragm structure for durability.
High precision with good long-term stability.

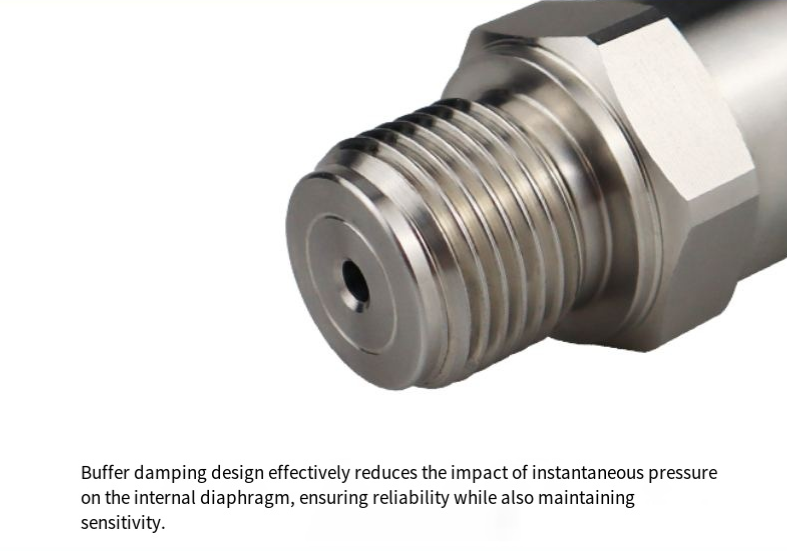

Good vibration resistance and impact resistance.

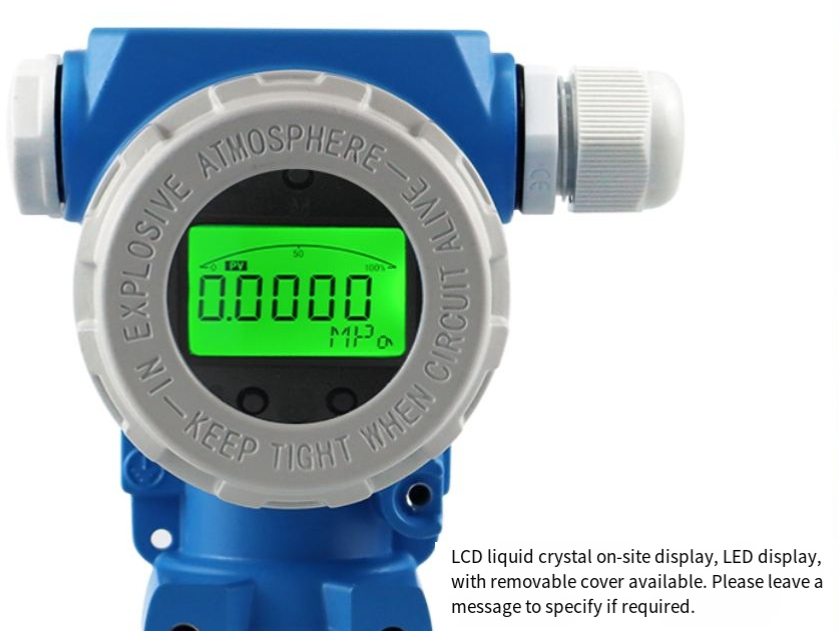

Digital special circuit with strong anti-interference ability.
Technical Parameter
| Range | -100kPa~+100MPa |
| Range Customizable | |
| Power Supply Voltage | 24VDC |
| Signal Output | 4~20mA, 0~5V, 0~10V |
| Operating Temperature | -20~100°C |
| Accuracy | ±0.2%FS |
| Diaphragm Material | SUS316L |
| Zero Temperature Drift | ±0.25%FS / 70°C |
Typical Application
Petroleum Industry
Chemical Industry
Metallurgy Industry
Electric Power Industry
Food Industry
Papermaking Industry
Pharmaceutical Industry
Machinery Manufacturing
Scientific Experiment
Aviation And Military Industries

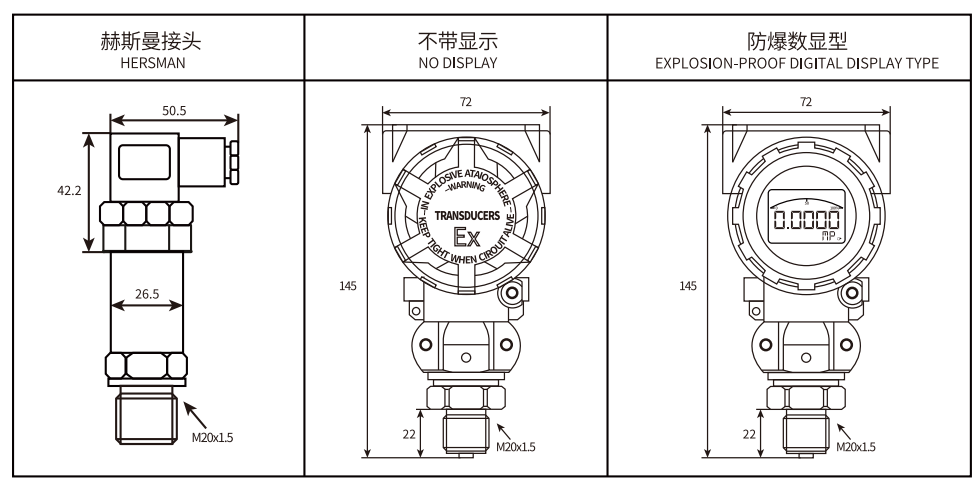

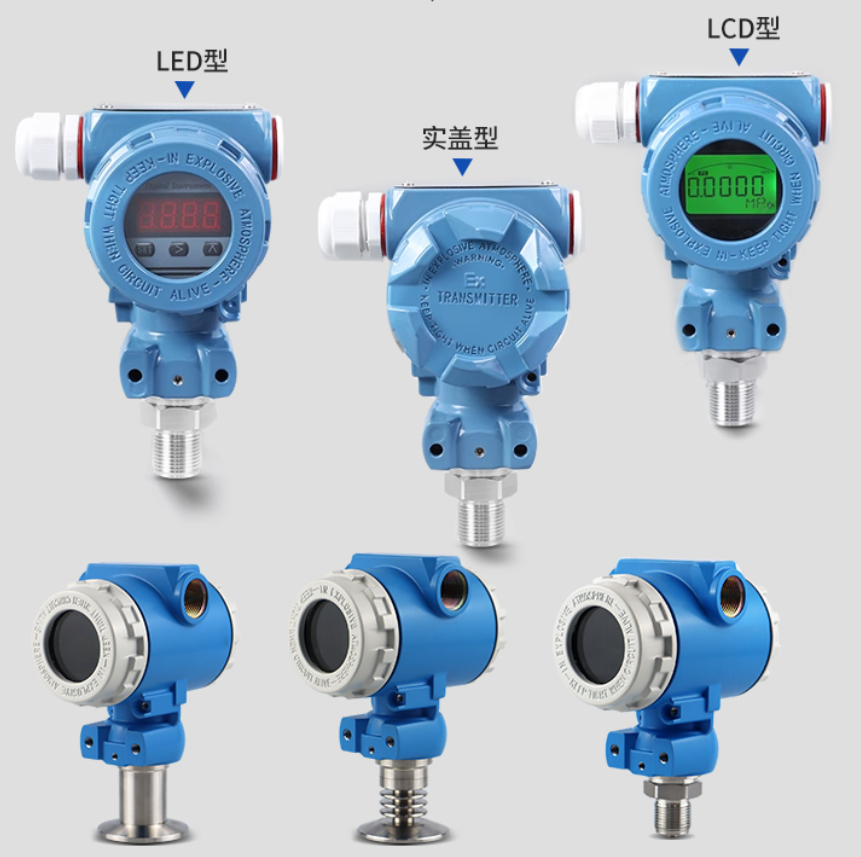

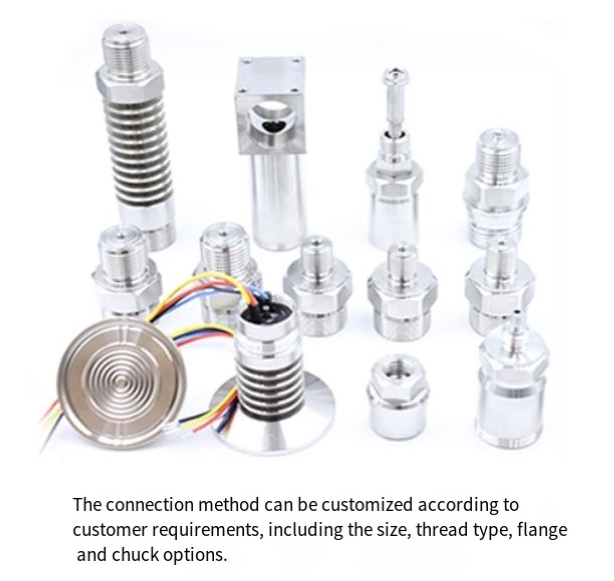

Product Type

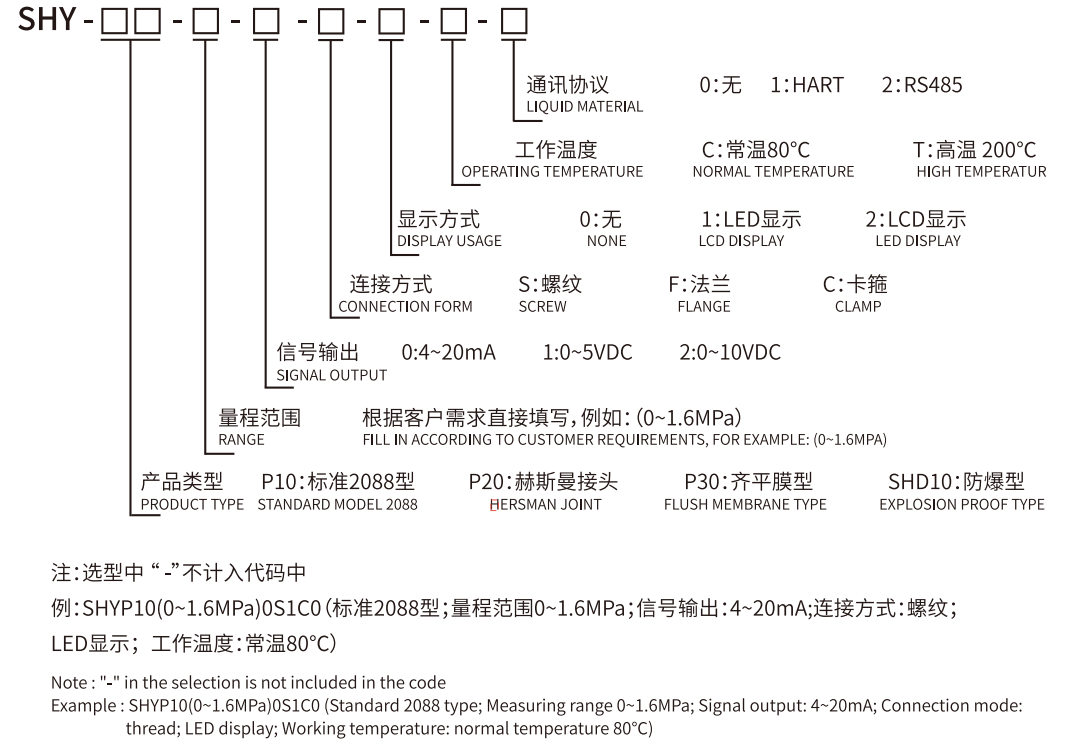

Product Selectiom Table
