Working Principle

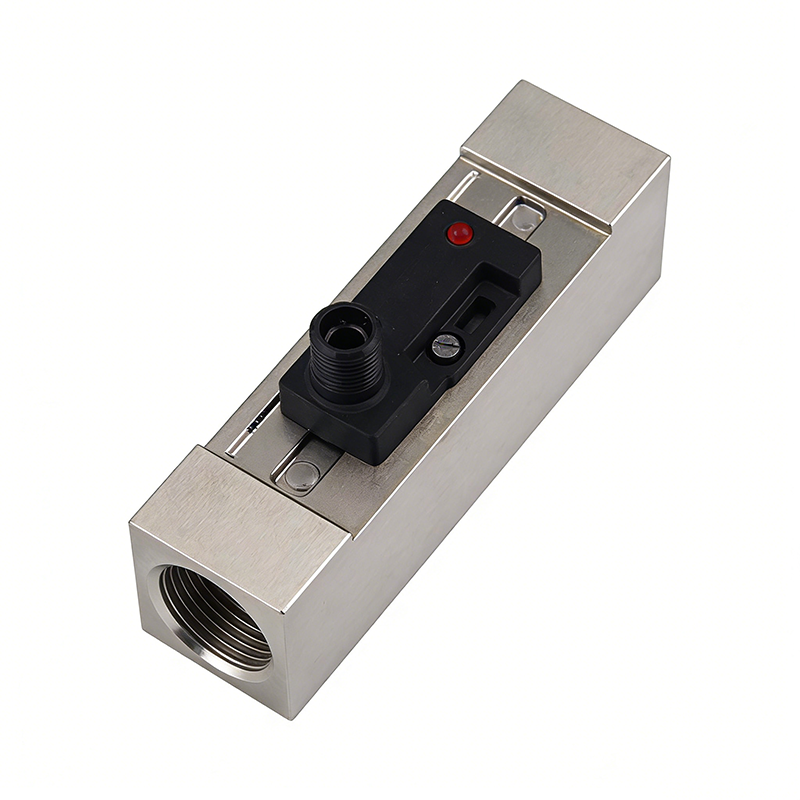

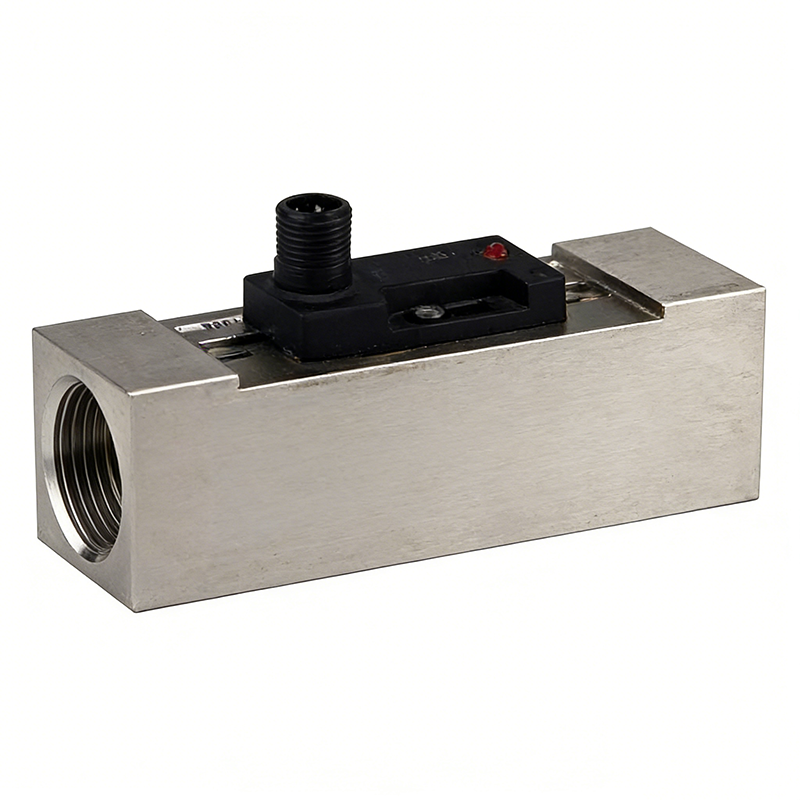

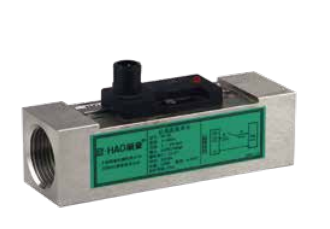

The SHI Series Piston Type Flow Switch has a built-in piston containing a magnet. When water or other medium passes through the housing, the piston moves inside the body and drives the reed tube in the electrical box outside the housing to close or open. The flow setting can be adjusted by moving the electrical box. It is an inline mechanical flow switch suitable for liquid or gas media, with stainless steel or carbon steel housing available.
Technical Characteristics
Good repeatability and strong dirt resistance.
Equipped with switch setting scale for easy adjustment.
Users do not need complicated on-site setting.
LED display shows switch status clearly.
Dual switch output is available as an option.
Compact inline structure is suitable for industrial use.
Technical Parameter
| Signal Output | SPST |
| Operating Temperature | -20~80°C |
| Working Pressure | Ordinary Pressure |
| Body Material | Stainless Steel Or Carbon Steel |
| Connection Mode | Thread G1/2, G3/4, G1 |
Typical Application
Gas And Liquid Dual-Use Systems
Industrial Automation
Mechanical Equipment
Air Compression Industry
Refrigeration Systems
Air Conditioning Systems

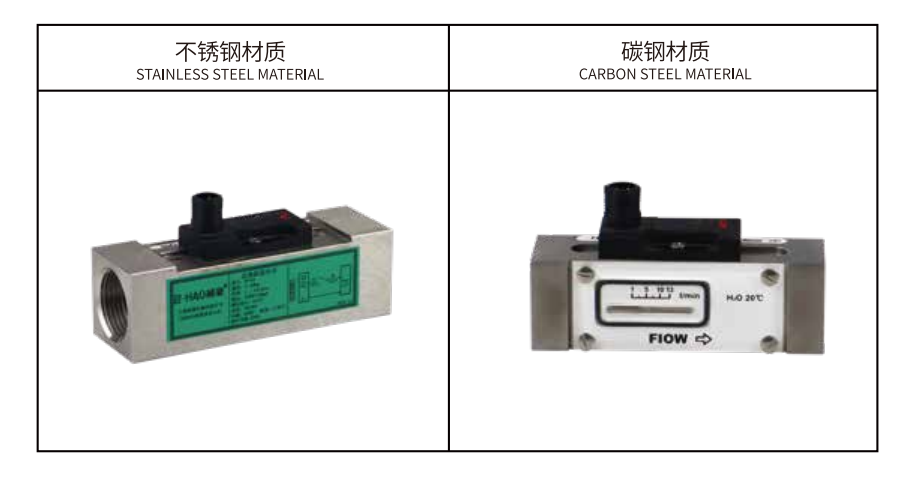

Product Type
