Working Principle

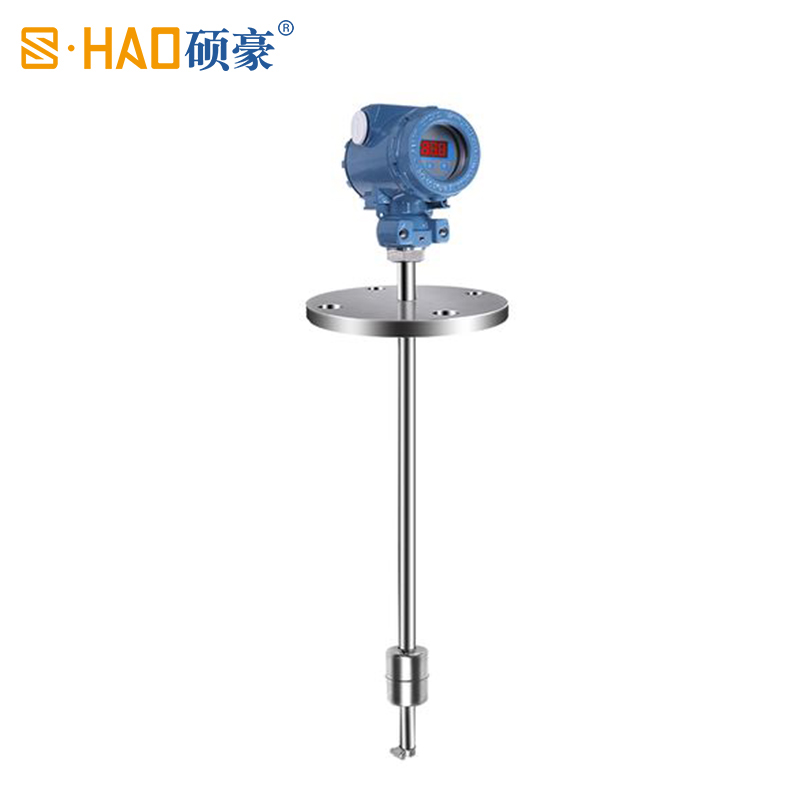

The SHB Series Float Ball Continuous Level Gauge uses the magnetic change of the float ball to detect liquid level variation. As the level rises or falls, the float moves accordingly and changes the resistance in the connecting rod and the magnetic reed switch assembly. The signal is then converted into a standard 4-20mA output or other standard signals through the converter. The indicator can also be used with other gauges for remote display. It is a liquid level indicator with simple principle and good reliability.
Technical Characteristics
The digital circuit features high precision and fast response.
It can be equipped with direct display for liquid level reading.
Its operation is not affected by environment or pressure changes.
The measuring component is completely isolated from the medium.
It offers good sealing performance for reliable and safe use.
Technical Parameter
Power Supply Voltage: 24VDC
Signal Output: 4-20mA Two-Wire System
Operating Temperature: -20~80°C
Stainless Steel Temperature Range: -20~200°C
Working Pressure: 1.0MPa
High Pressure Option: ≤6.0MPa Customizable
Electrical Interface: M20*1.5
Typical Application
Wastewater Treatment Control Equipment
Electrical Industry
Marine Oil Pressure Equipment
Water Conservancy Facilities
Chemical Engineering
Petrochemical Industry Equipment
Heat Medium Boilers
Diesel Generators
Automobile Fuel Meters
Oil Storage Tanks

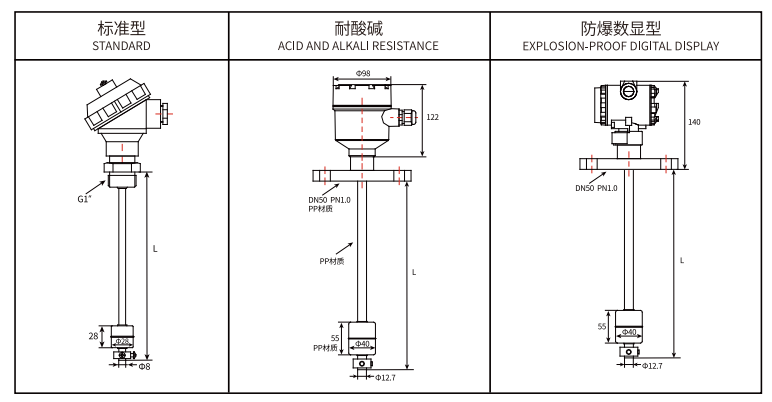

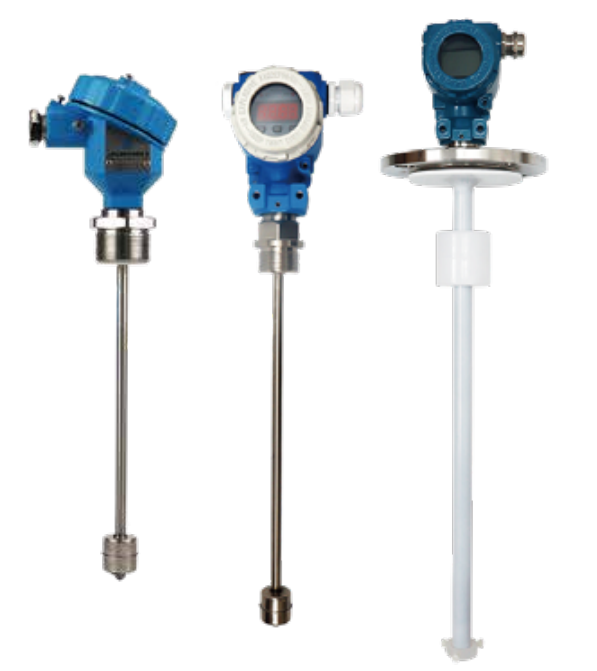

Product Type

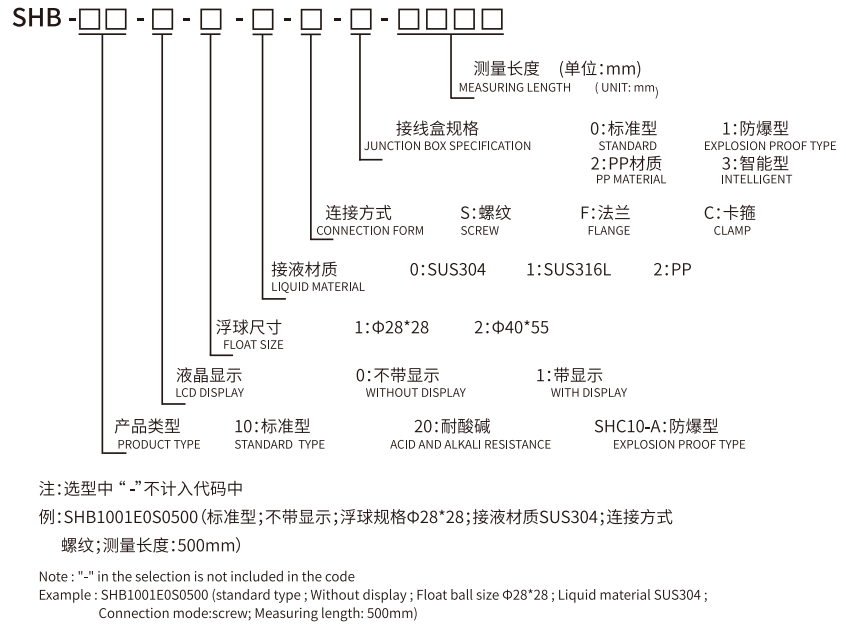

Product Selectiom Table
