Working Principle

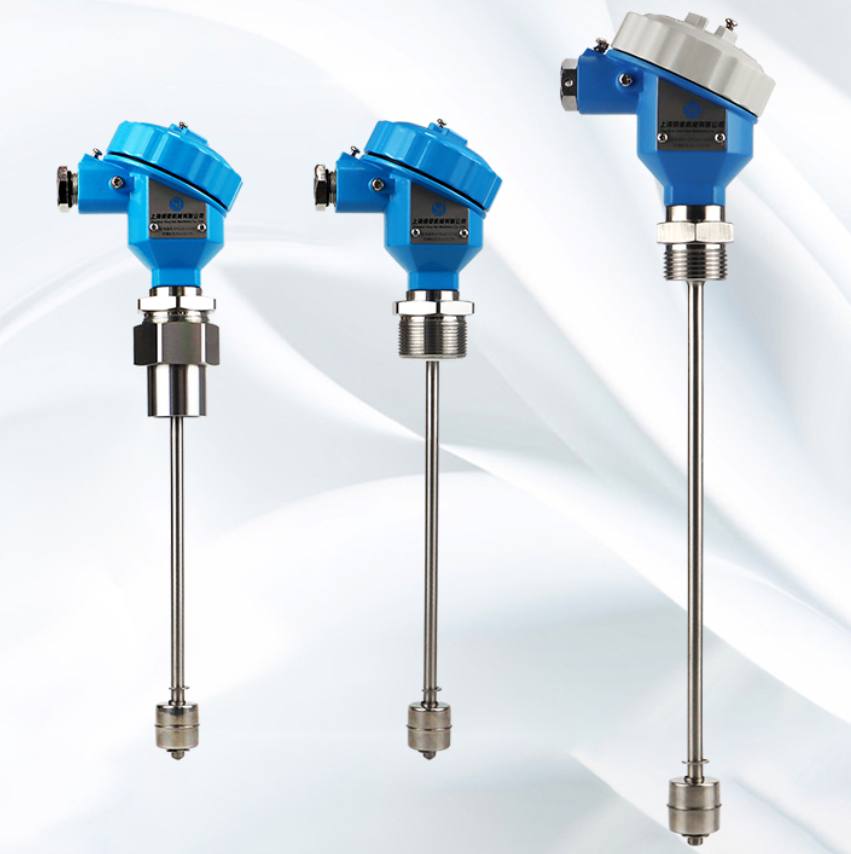

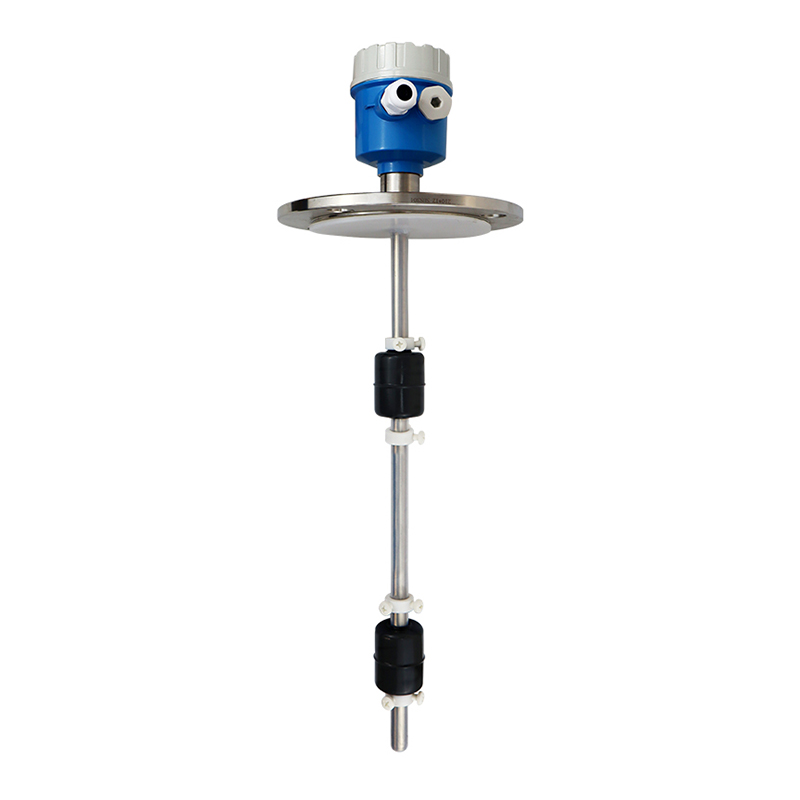

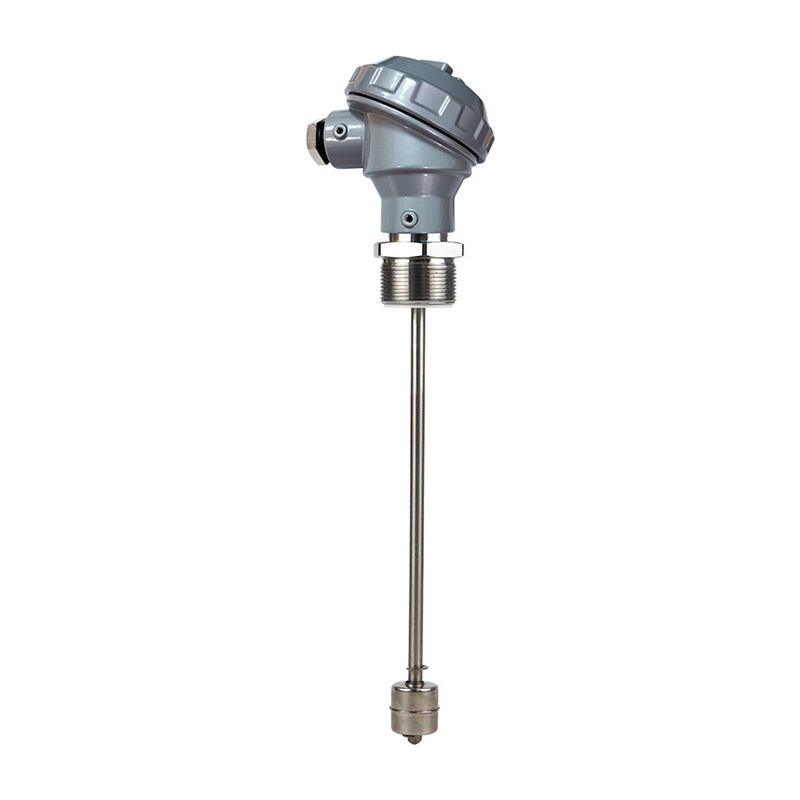

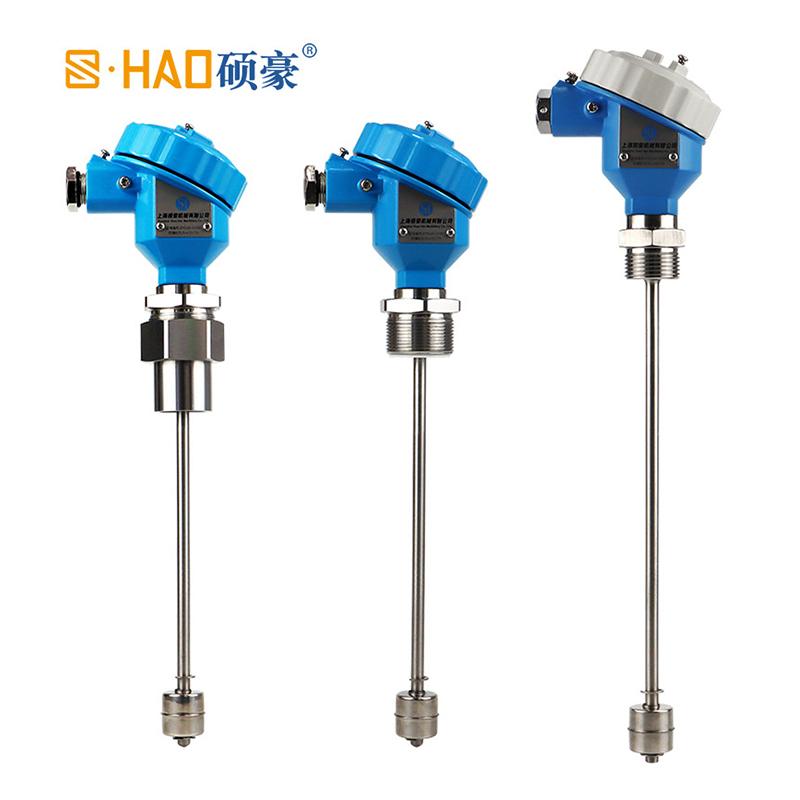

The SHC Series Connecting Rod Float Ball Level Switch is fixed inside a closed stainless steel or plastic tube. One or more magnetic reed switches are mounted in the tube, and one or more hollow float balls with internal magnets are positioned around the tube. As the liquid level changes, the float ball moves up and down within a certain range. The magnet inside the float ball attracts the contact of the magnetic reed switch, so the switch turns on or off to control the liquid level.
Technical Characteristics
It can realize multi-point liquid level control.
The switch position can be customized as required.
It features simple structure and stable performance.
It offers long working life and wide application range.
The magnetic reed switch is isolated from wire and liquid.
It is not affected by ambient temperature or pressure.
Technical Parameter
Signal Output: SPST, SPDT
Operating Temperature: -20~80°C
Stainless Steel Temperature Range: -20~200°C
Working Pressure: 1.0MPa
Liquid Material: SUS304
Electrical Interface: M20*1.5
Typical Application
Shipbuilding Industry
Power Generation
Petrochemical Industry
Food Industry
Water Treatment
Hydraulic Machinery

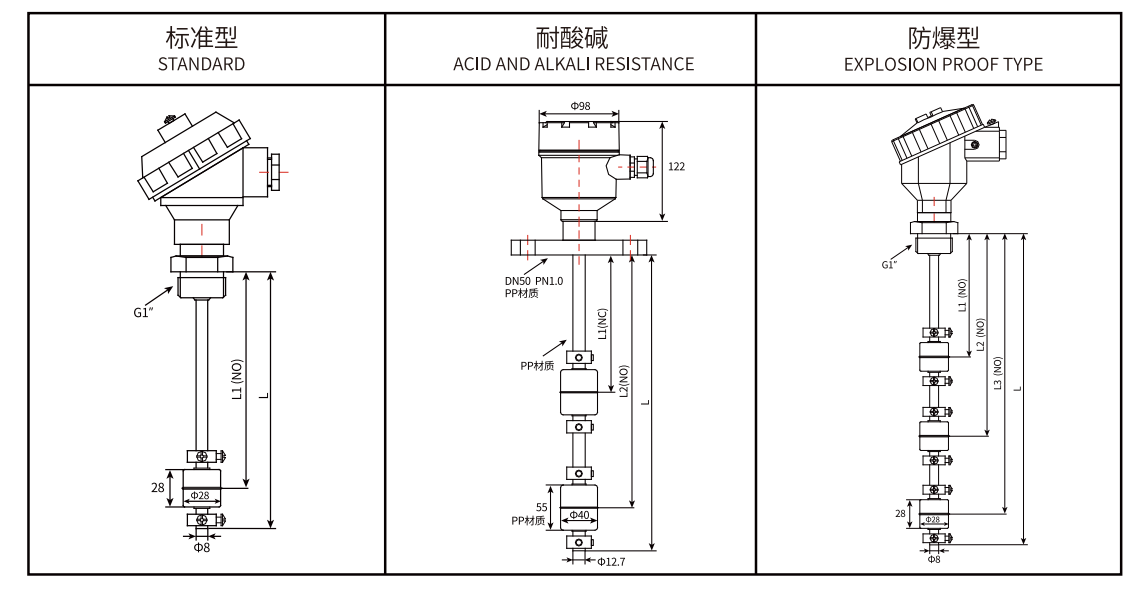

Product Type

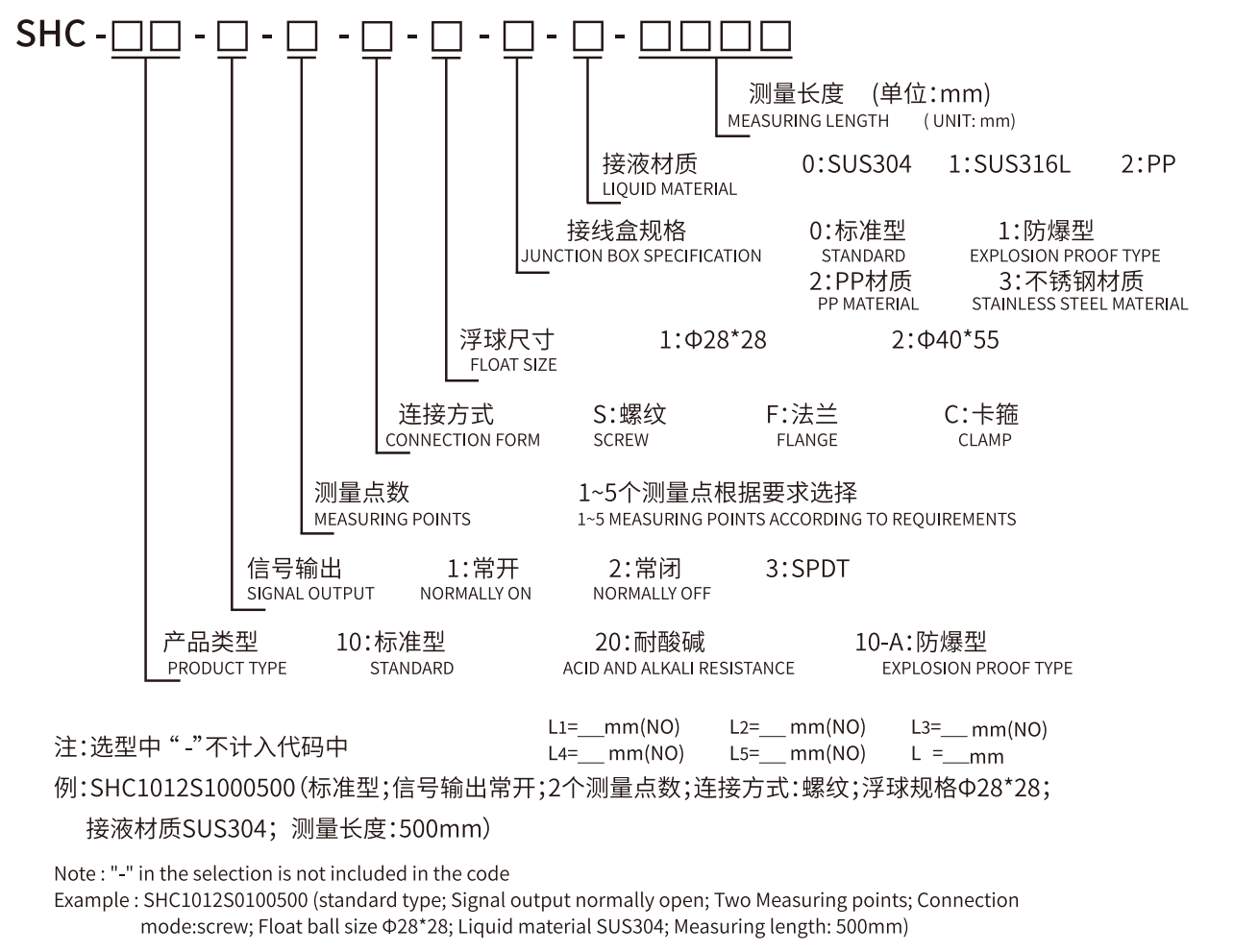

Product Selectiom Table
