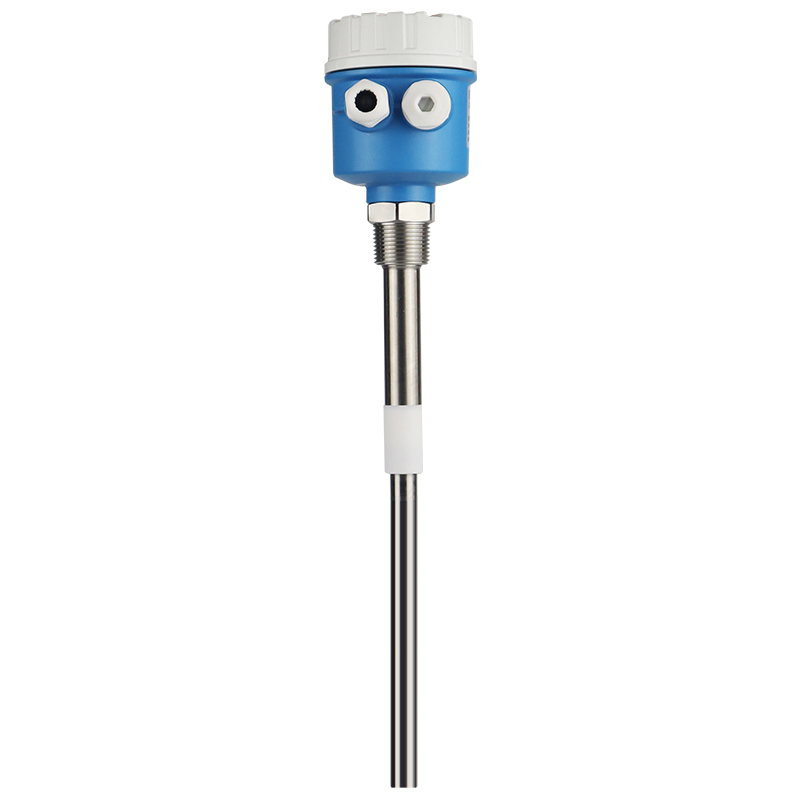

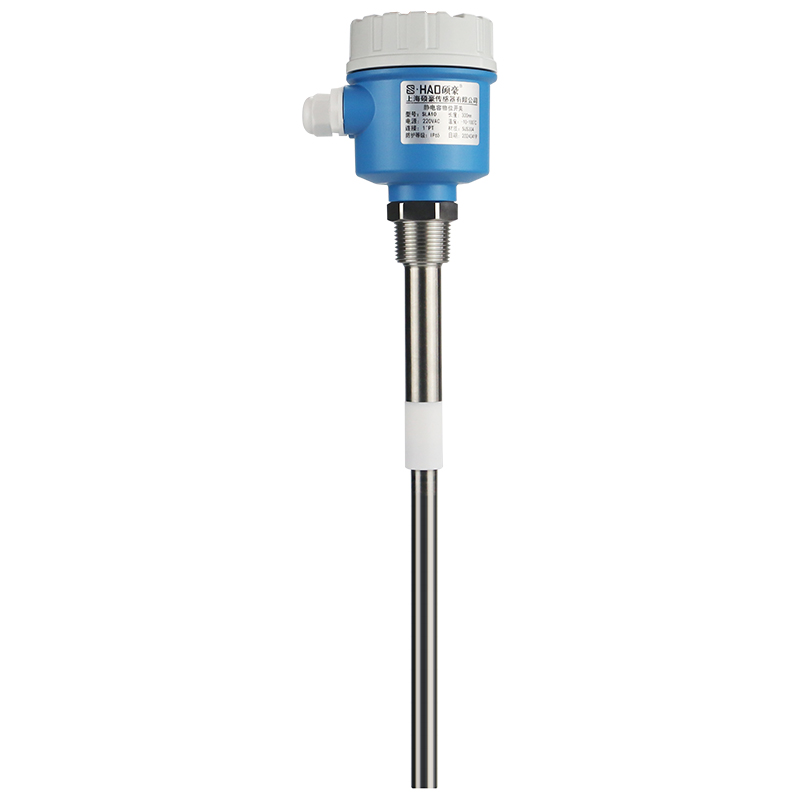

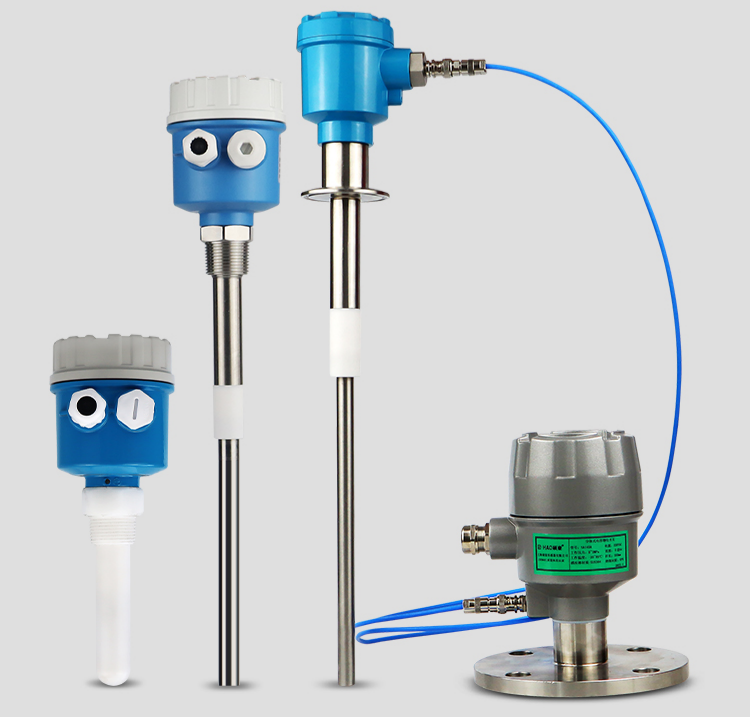

SLD Capacitive Level Switch
The SLD Capacitive Level Switch developed by S·HAO is designed for reliable level detection of liquids, powders, and granular materials in industrial processes.
The device operates based on capacitance measurement technology. When the material level changes, the dielectric constant around the probe changes, which results in a change in capacitance detected by the electronic circuit.
This change is converted into a switching signal for level control, alarms, or process automation systems.
Working Principle
The capacitive level switch measures the change in capacitance between the probe and the container wall. When the material comes into contact with the probe, the dielectric constant changes, causing a variation in capacitance.

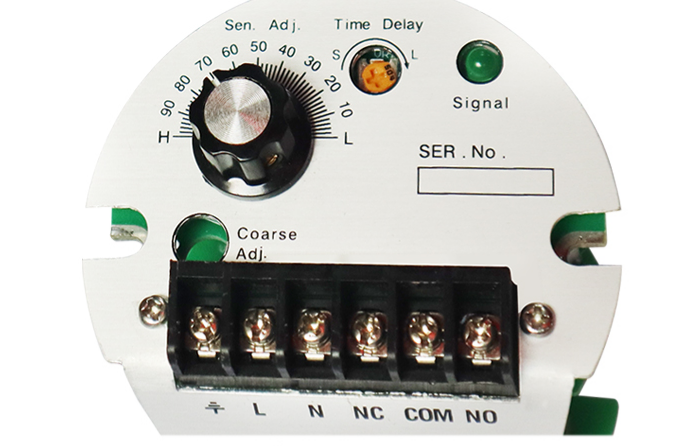

The electronic control unit detects this variation and triggers the relay output signal, which can be used for level alarms or automatic process control.
Technical Characteristics
High Sensitivity
Accurate detection of liquids, powders, and granular materials.
Compact Structure
Simple structure for easy installation and maintenance.
Reliable Performance
Stable operation under various industrial conditions.
Wide Application Range
Suitable for many types of storage tanks and containers.
Typical Applications
Chemical Industry
Liquid and powder level monitoring in process tanks.
Food Industry
Detection of grains, powders, and raw materials.
Water Treatment
Level monitoring in storage tanks and pipelines.

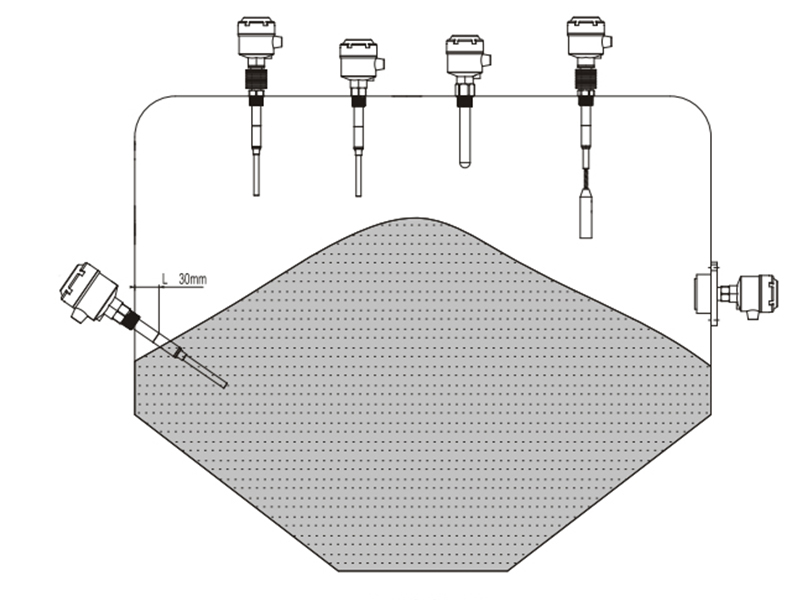

Bulk Material Storage
Suitable for silos and containers storing granular materials.
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 220VAC / 24VDC |
| Output Signal | Relay Output 5A / 250VAC |
| Operating Temperature | -20°C ~ 120°C |
| Working Pressure | 1.6MPa |
| Process Connection | Thread / Flange |
| Housing Material | Aluminum Alloy |
