Working Principle
When the float rises or falls with the liquid level and reaches a certain angle under liquid buoyancy, the driving mechanism inside the float body actuates the large-capacity micro-switch. The switch then outputs an ON or OFF signal for alarm indication or remote control use.
Technical Characteristics

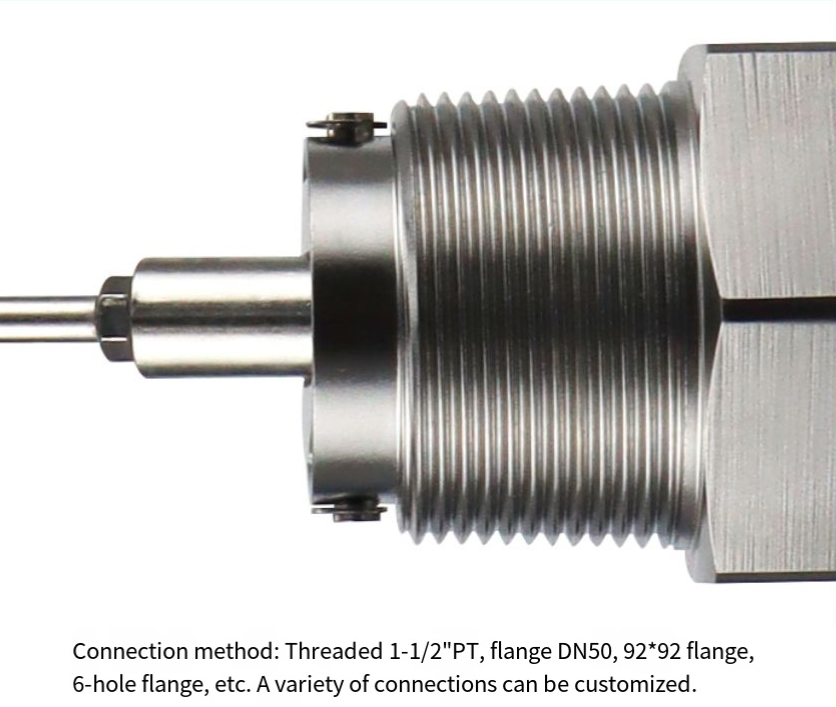

It can be installed horizontally on the side wall of the tank.
It can also be installed vertically on the top of the tank.
The instrument structure is simple and reasonable.
Performance is stable and reliable in operation.
Installation is convenient and easy to handle.
The control part is isolated from the measured liquid medium.
It is suitable for high temperature and high pressure environments.
Technical Parameter

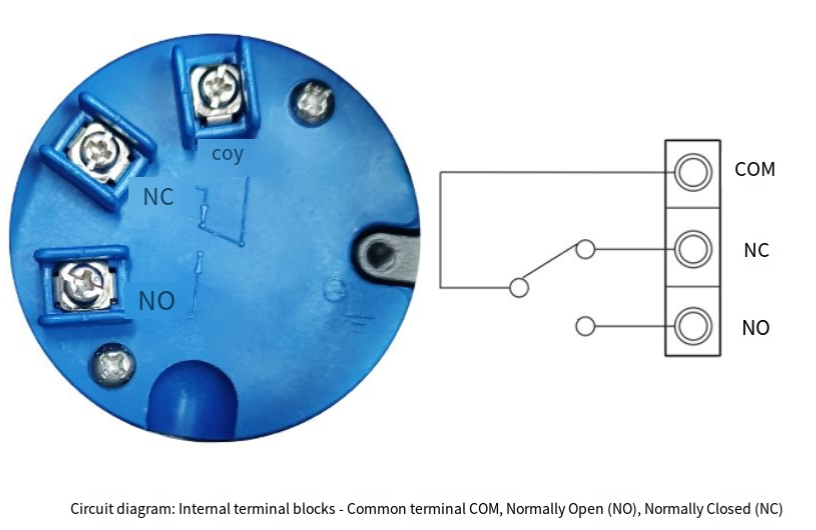

Signal Output: SPST, SPDT, Two Action Points For One Ball
Operating Temperature: -20~80°C
High Temperature Type: Max. 250°C
Working Pressure: 1.6MPa

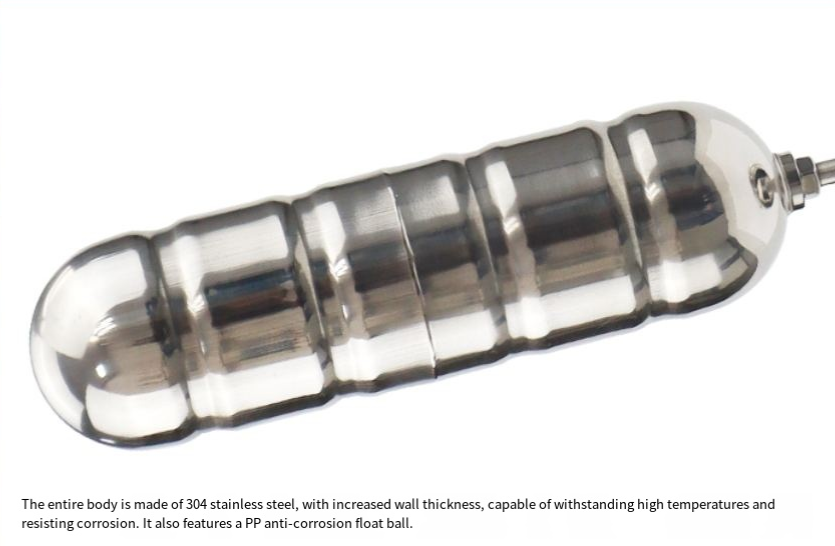

Liquid Material: SUS304
Applicable Gravity: 0.65g/cm³ Customizable

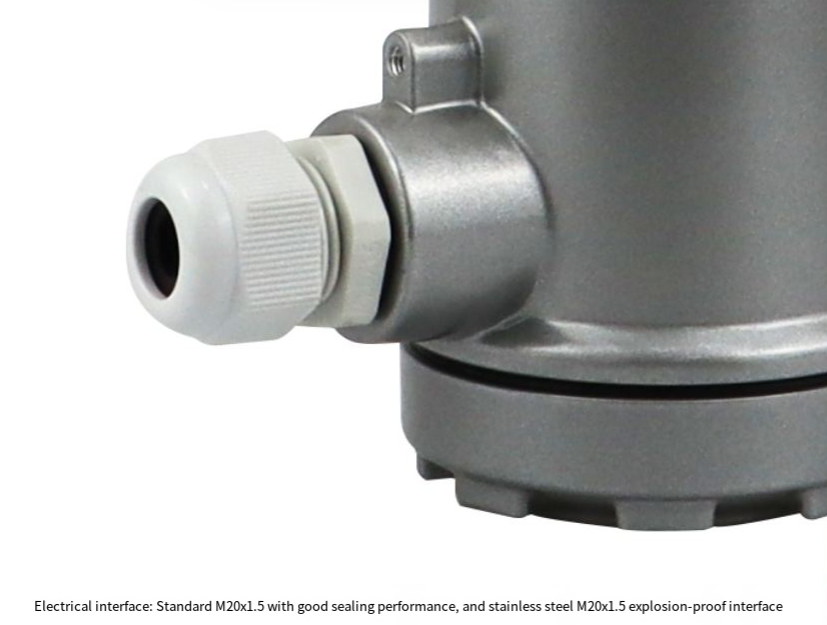

Electrical Interface: M20*1.5
Typical Application
Food Industry
Pharmaceutical Industry
Chemical Industry
Electronics Industry
Shipbuilding Industry
Water Treatment Industry

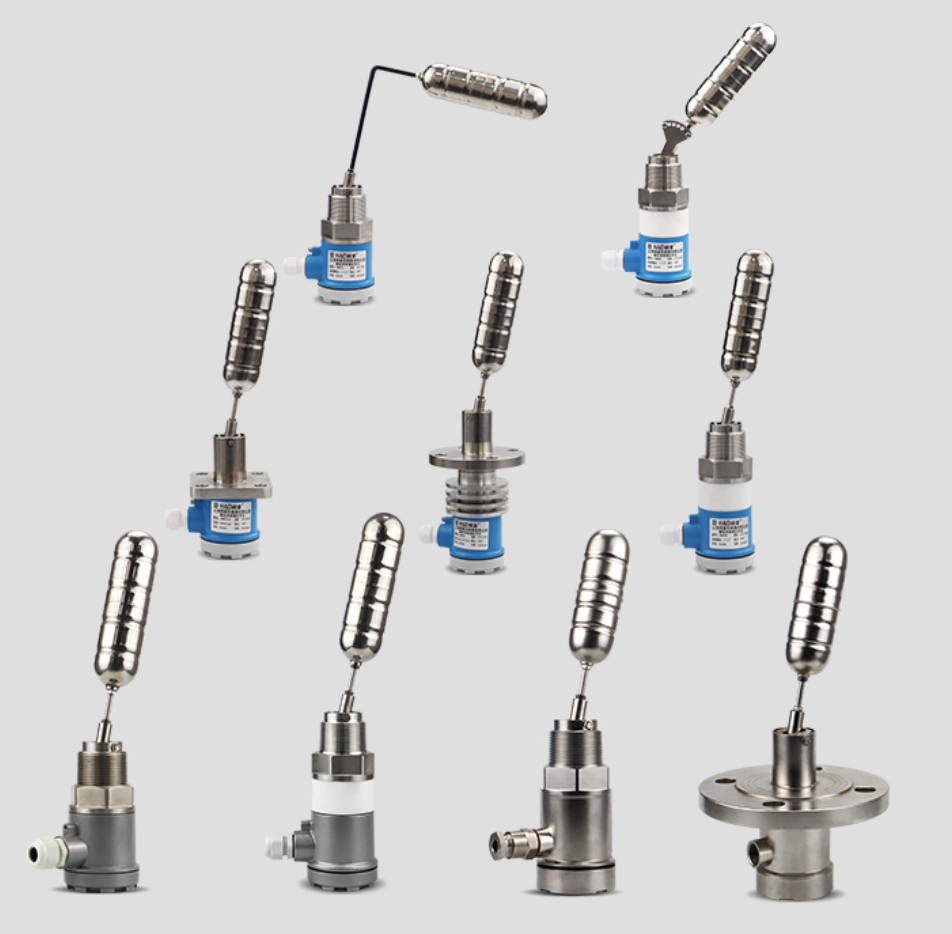

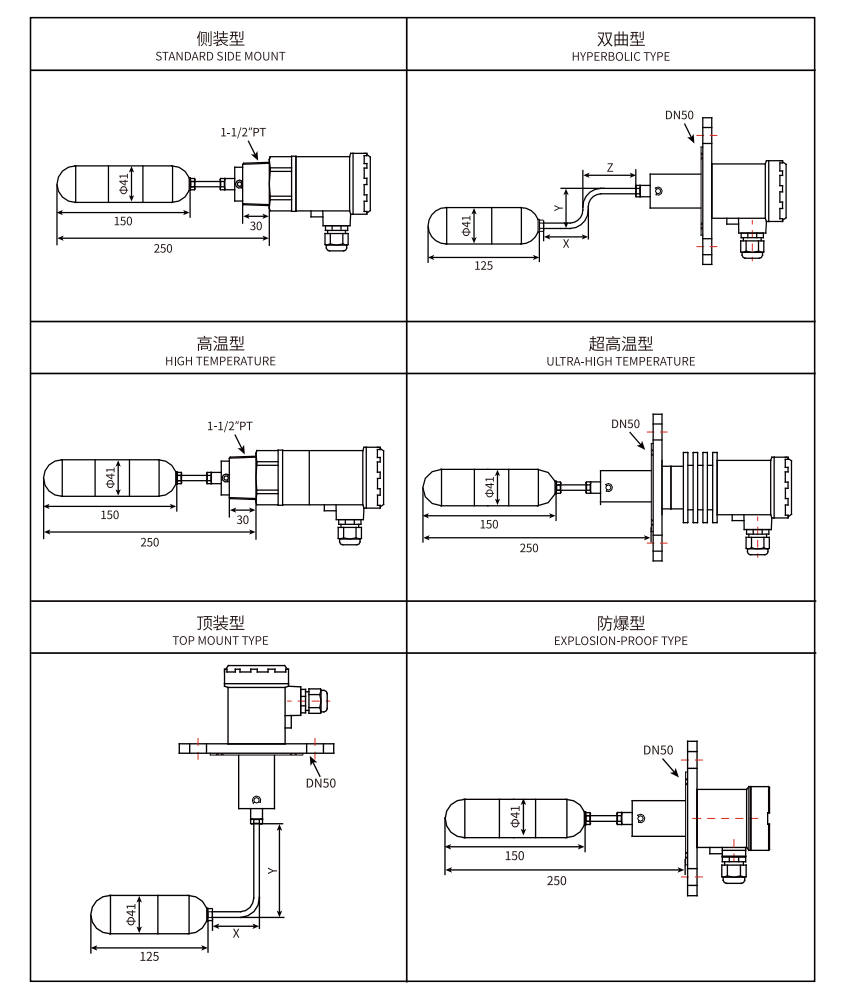

Product Type

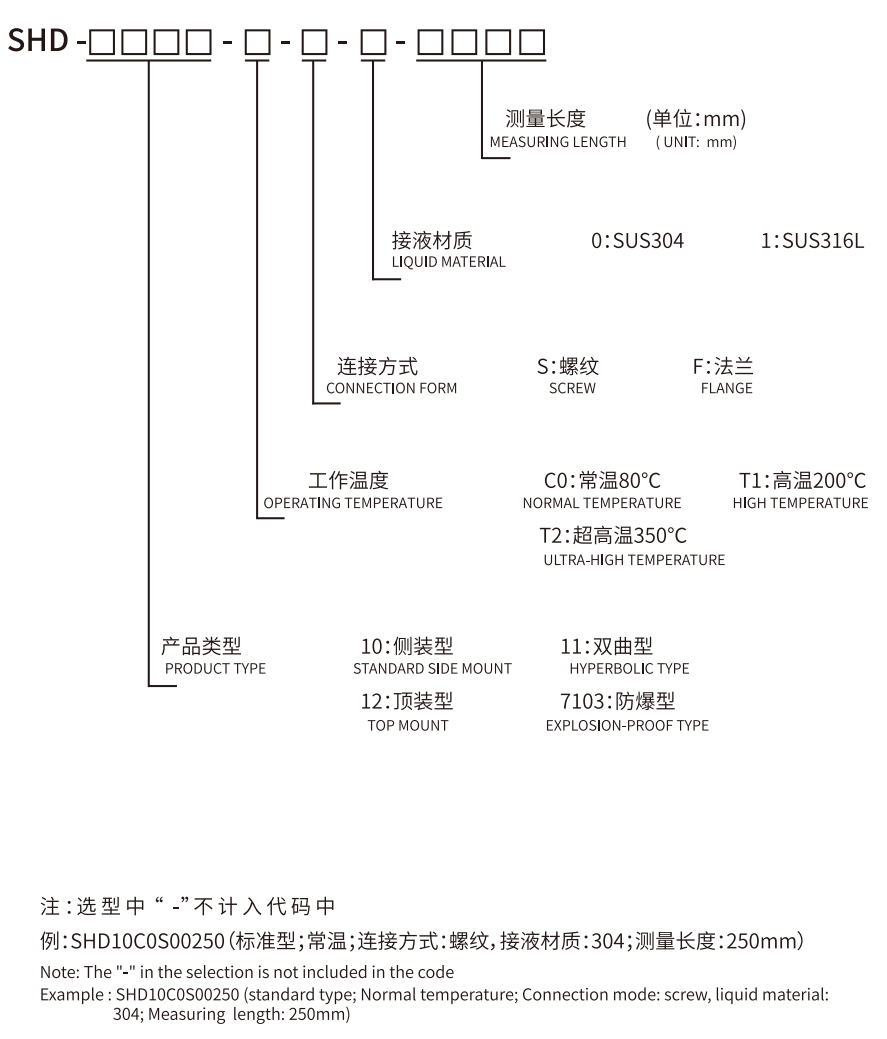

Product Selectiom Table
