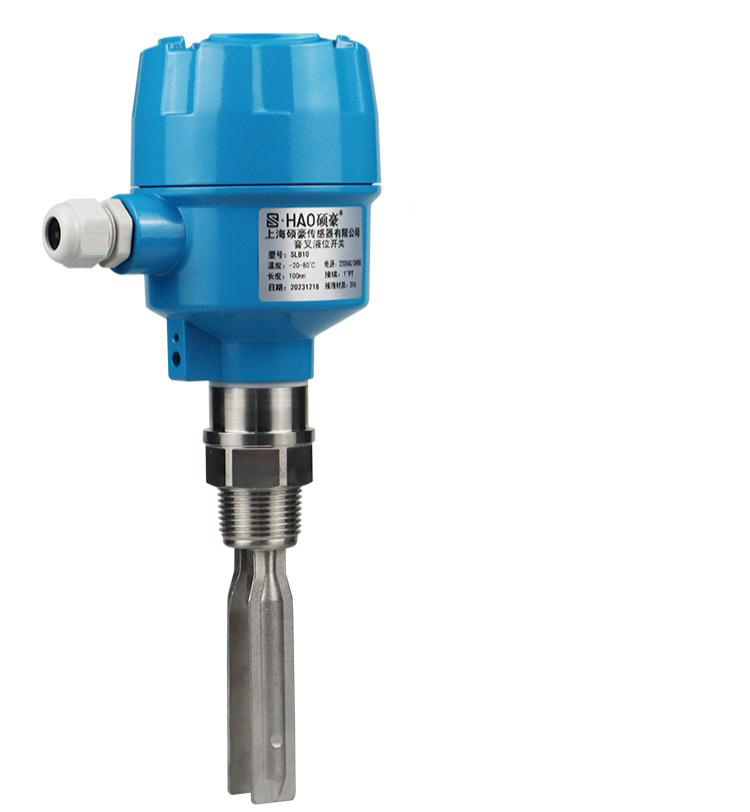

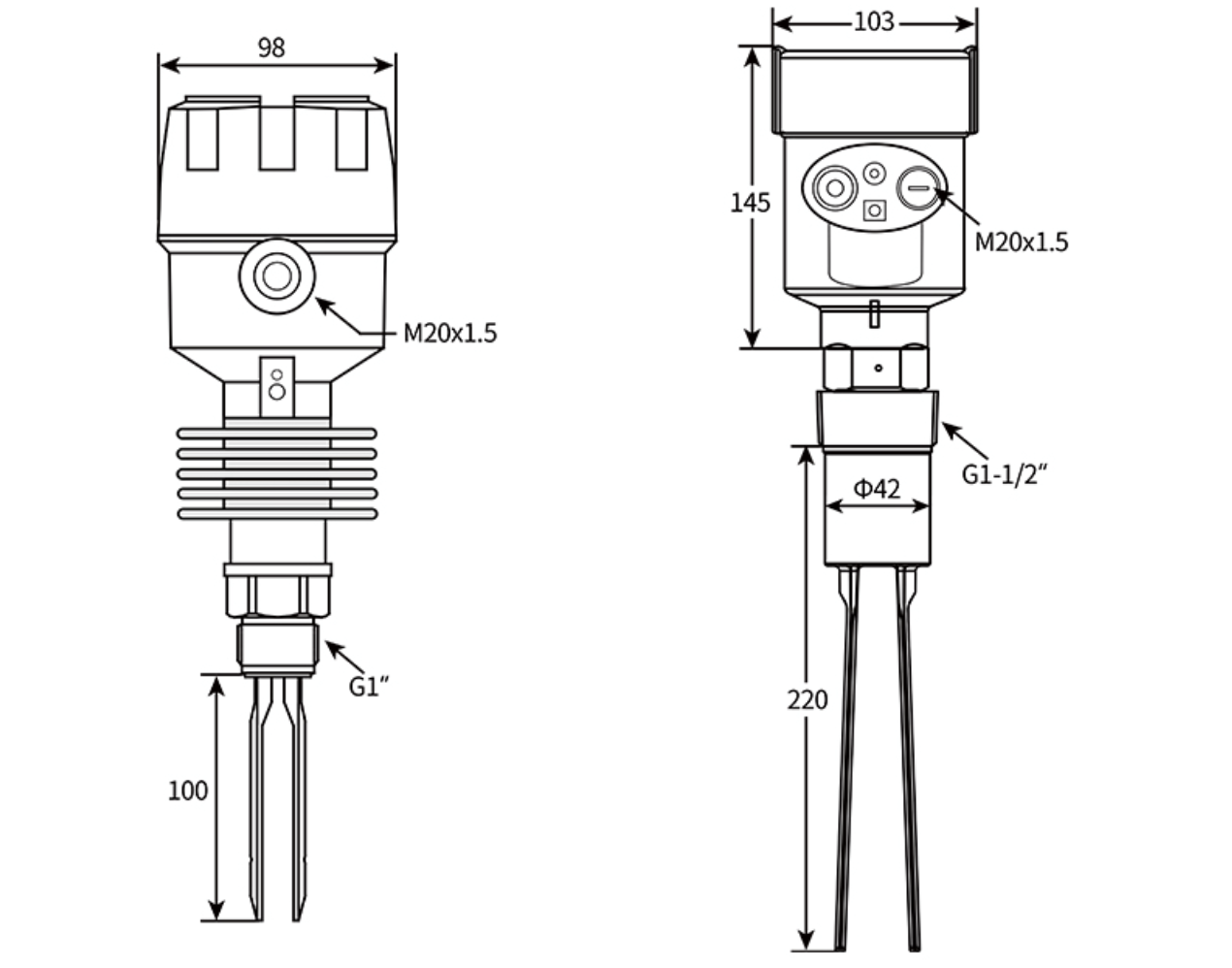

SLB Tuning Fork Level Switch
The SLB Tuning Fork Level Switch developed by S·HAO is a reliable level detection device designed for monitoring solid materials and liquids in industrial processes.
The instrument uses vibration frequency technology to detect the presence of material. When the fork is covered by material, the vibration frequency changes and the internal circuit outputs a switching signal.
This technology ensures stable operation, high sensitivity, and reliable detection even in challenging industrial environments.
Working Principle
The tuning fork level switch operates by vibrating a fork element at a specific resonance frequency. When the fork is exposed to air, it vibrates freely. Once the material covers the fork, the vibration frequency changes due to the damping effect of the material.
The electronic circuit detects this frequency change and converts it into a switching signal, which can be used to trigger alarms, control systems, or process automation equipment.
Technical Characteristics
High Detection Accuracy
Stable detection performance for powders, granules, and liquids.
Reliable Operation
Insensitive to material properties such as density and dielectric constant.
No Calibration Required
Simple installation with minimal maintenance.
Strong Adaptability
Suitable for a wide range of industrial applications.
Technical Details

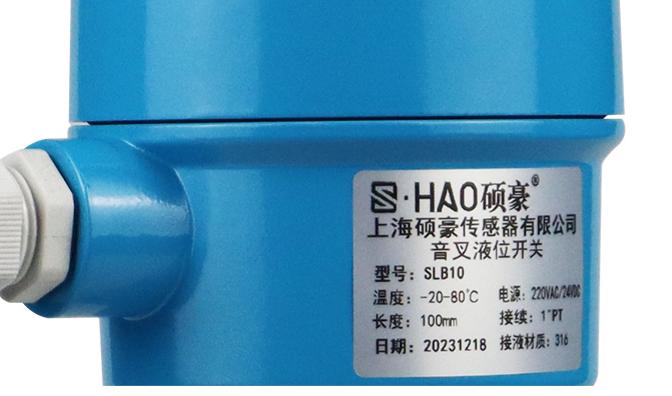

Shell material: aluminum alloy with baking paint, wear - resistant and corrosion - resistant

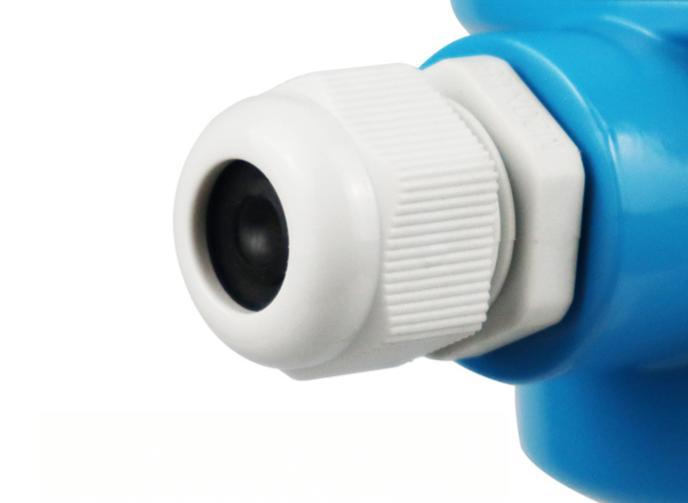

Adopt waterproof and dust - proof electrical interface to effectively isolate external water and dust

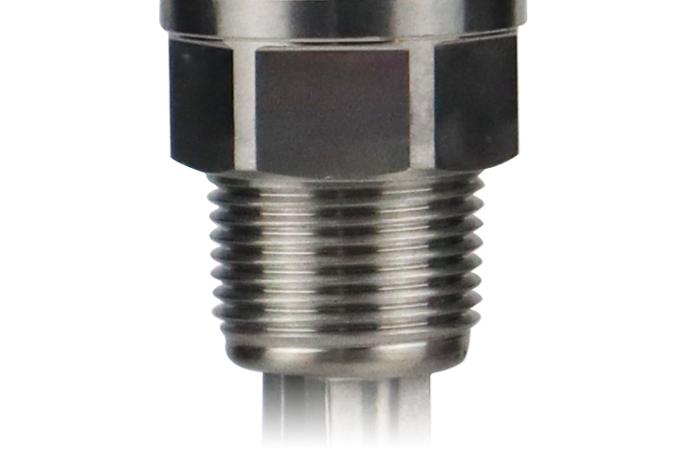

Connection methods: stainless steel threads, flanges, clamps and other connection methods can be customized

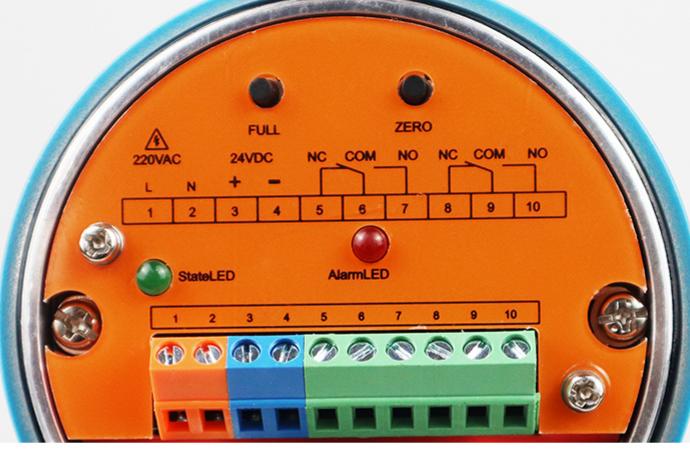

Dual - power supply, dual - relay output, one - key calibration, no debugging required.

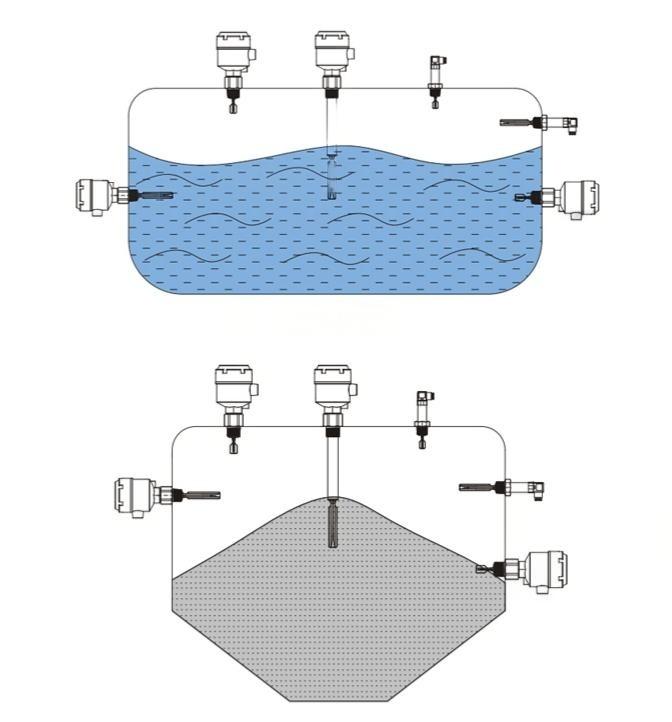

Typical Applications
Powder Materials
Suitable for flour, cement, and chemical powder detection.
Grain Industry
Level monitoring in grain silos and storage tanks.
Chemical Industry
Reliable level detection in industrial process tanks.
Food Industry
Used for detecting powders and granular materials.
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 220VAC / 24VDC |
| Output Signal | Relay Output 5A / 250VAC |
| Operating Temperature | -20°C ~ 150°C |
| Working Pressure | 2MPa |
| Process Connection | Thread / Flange |
| Housing Material | Aluminum Alloy |
