Working Principle
The SHG Series Cable Float Ball Level Switch controls liquid level by the angle change of the float ball. In the SHG plastic cable float type, the steel ball inside the float moves with the angle variation and drives the micro element to output a contact signal. In the SHG metal cable float type, the mercury element inside the float outputs the contact signal when the angle changes.
Technical Characteristics
The product adopts integral plastic injection molding.
It features a simple and reasonable structure design.
Performance is stable and reliable in daily operation.
It is easy to install and convenient to use.
On-site adjustment is simple and flexible.
Technical Parameter
Signal Output: SPST
Operating Temperature: PP -20~80°C
Stainless Steel Temperature Range: -20~200°C
Working Pressure: 1.6MPa
Measuring Range: 3 Meters
Max. Customized Cable Length: 30 Meters
Typical Application
Water Supply Systems
Drainage Systems
Corrosive Liquid Control
Suspended Solids Liquid Control
Pump Control
High Temperature Pools
Cable Pit Liquid Level Control

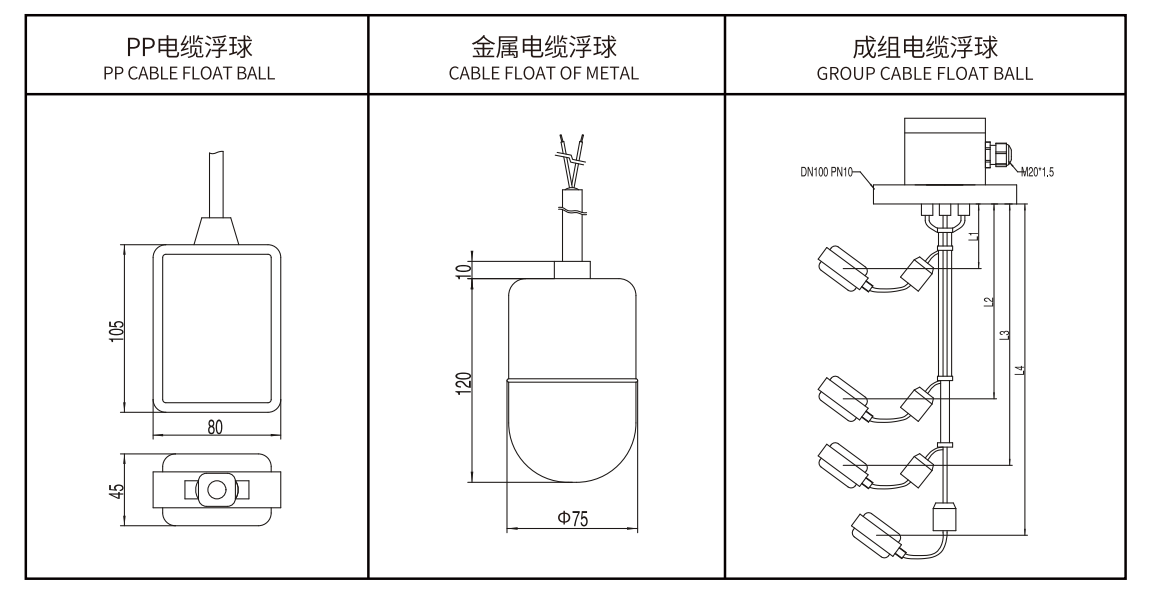

Product Type

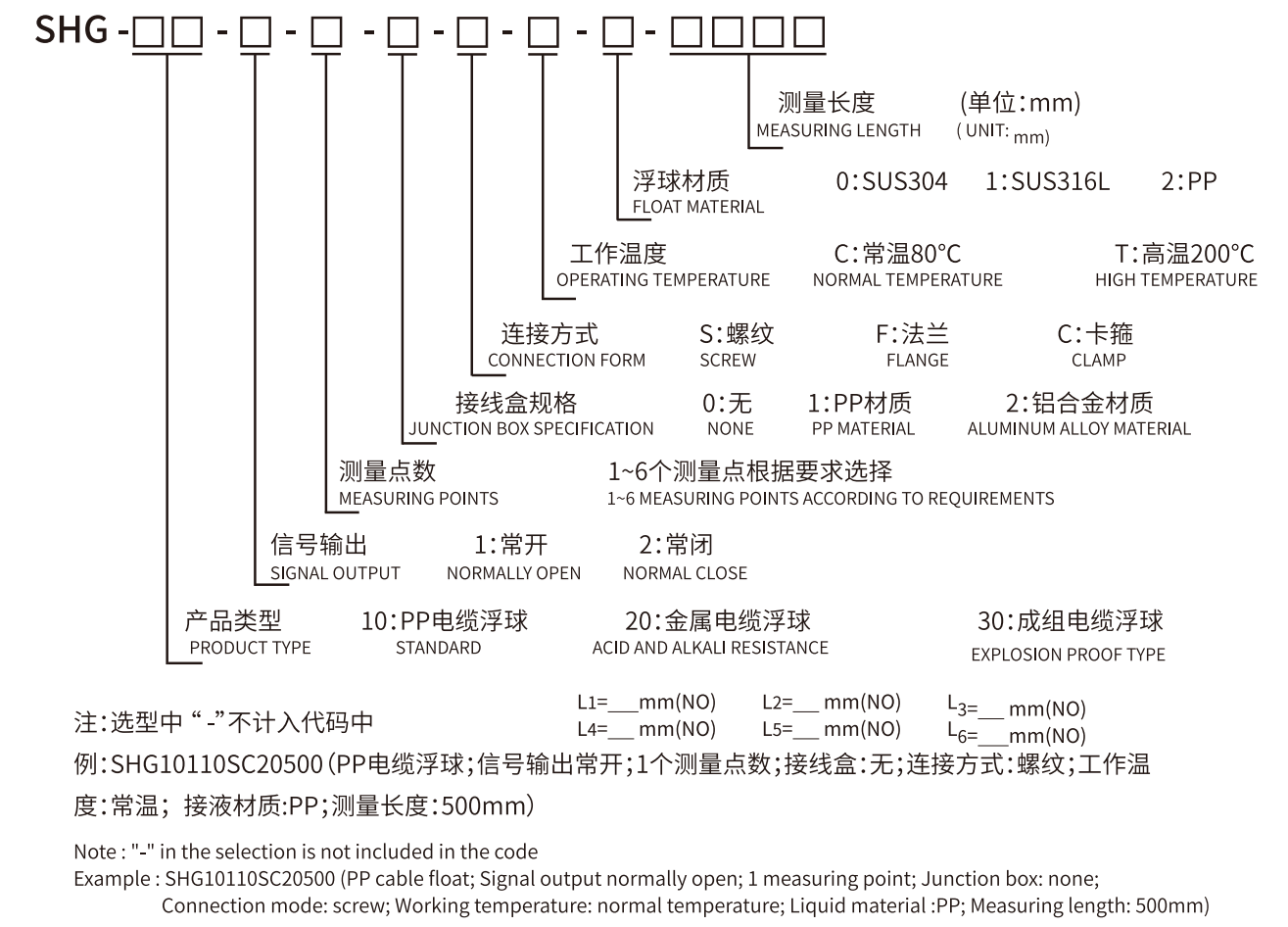

Product Selectiom Table
