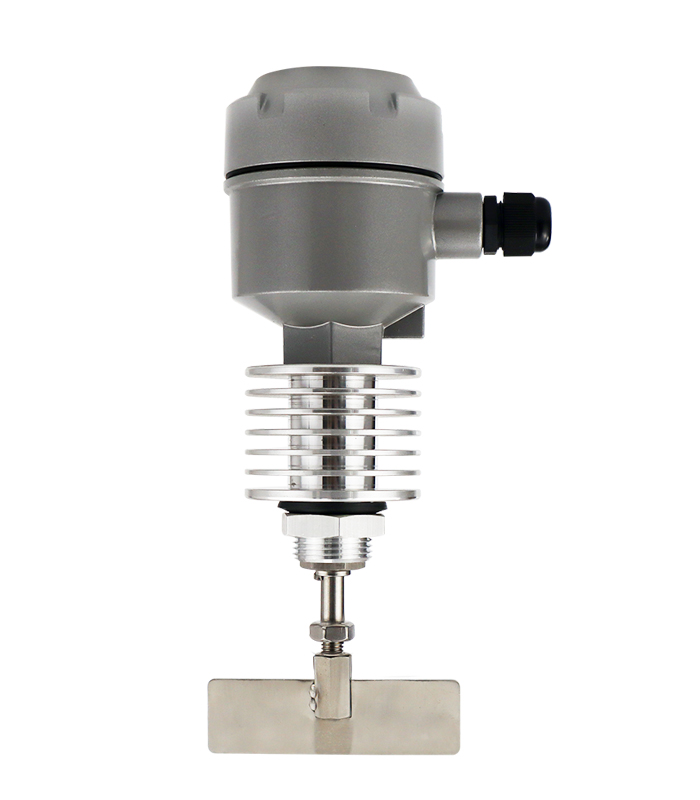

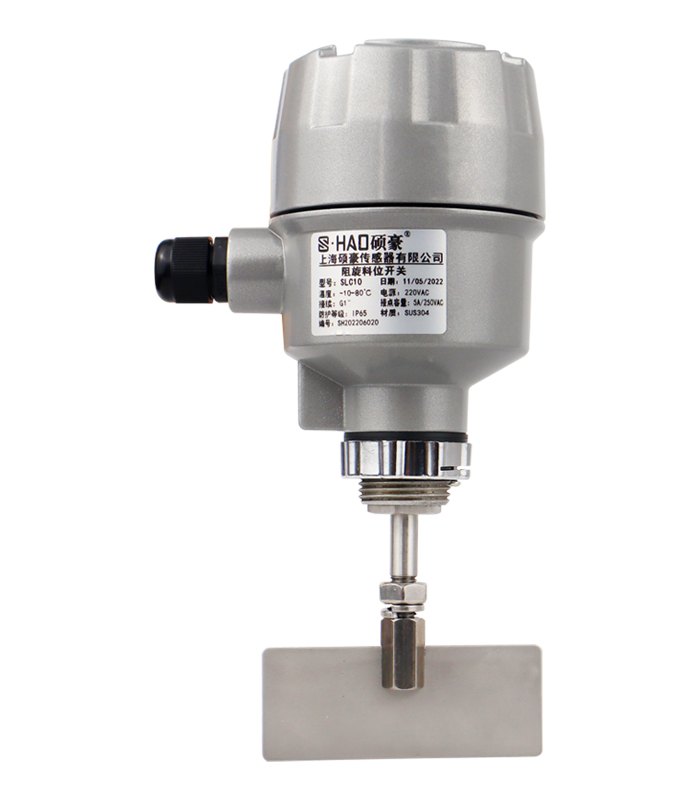

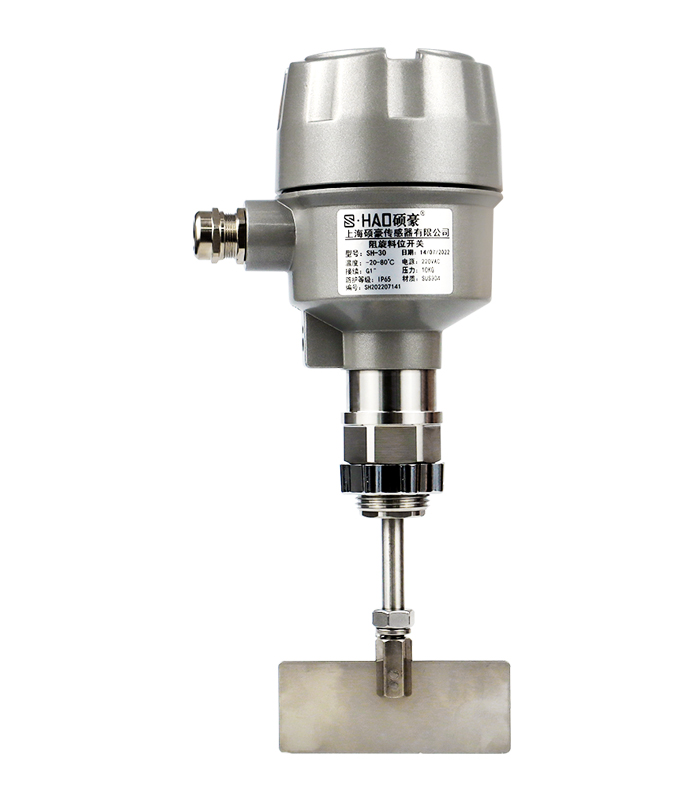

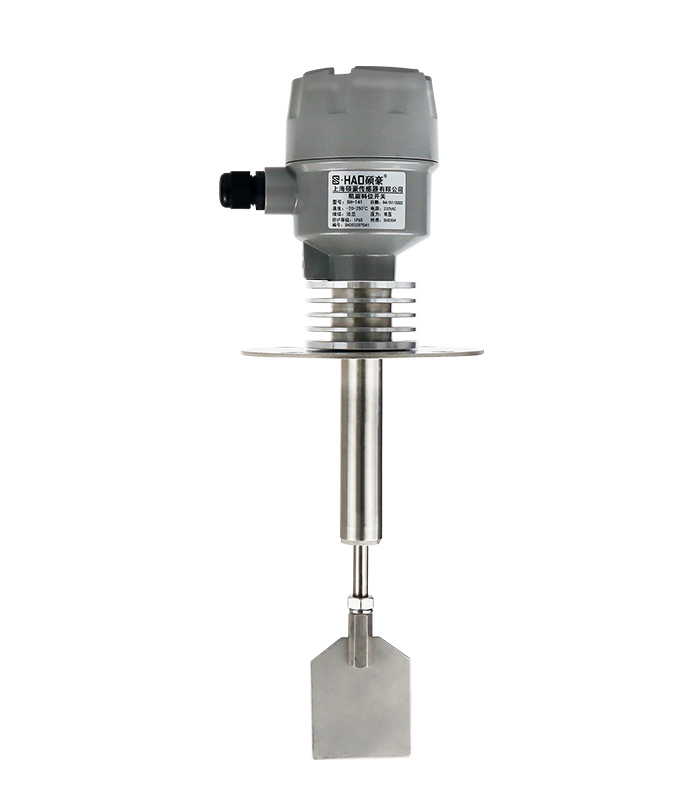

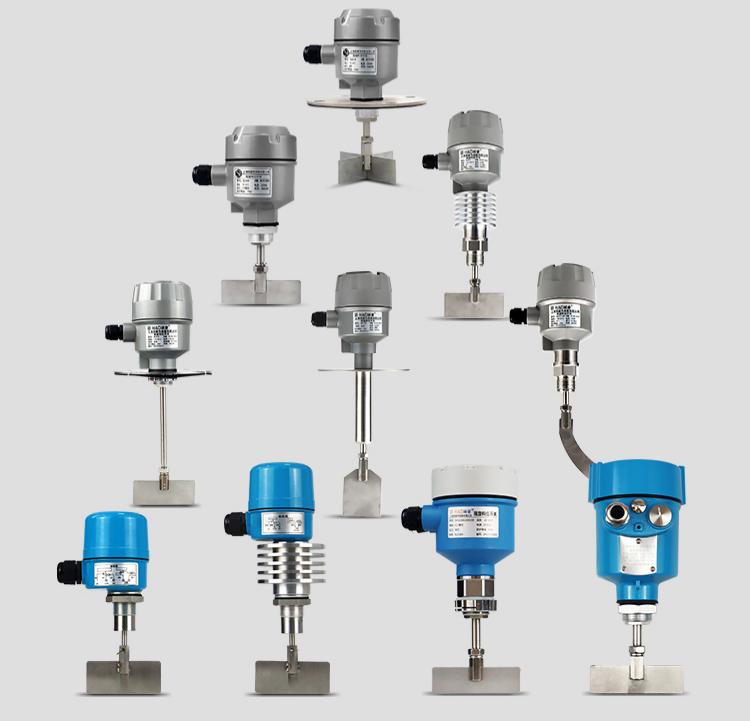

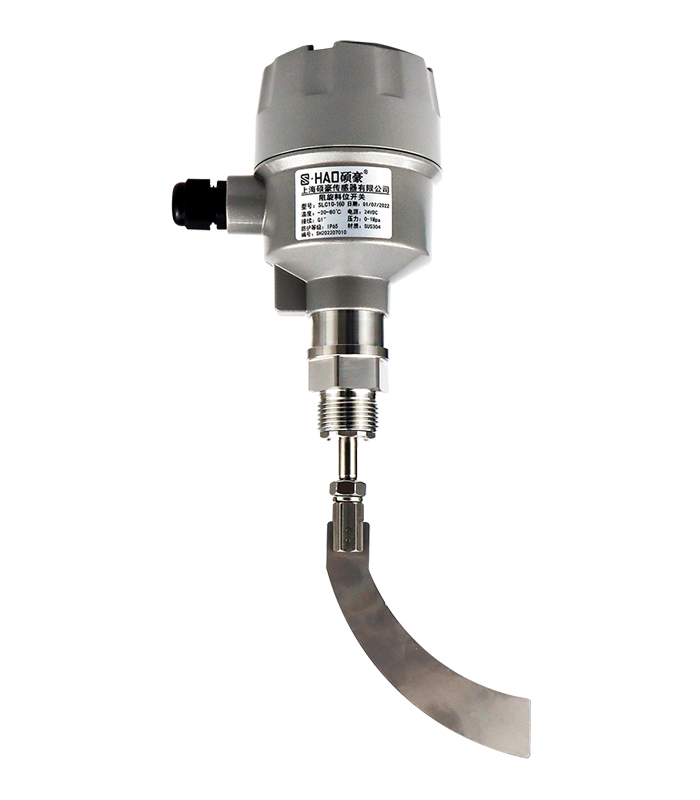

SLC Rotary Paddle Level Switch
The SLC Rotary Paddle Level Switch from S·HAO is designed for reliable level detection of bulk solid materials in silos, bins, and storage containers.

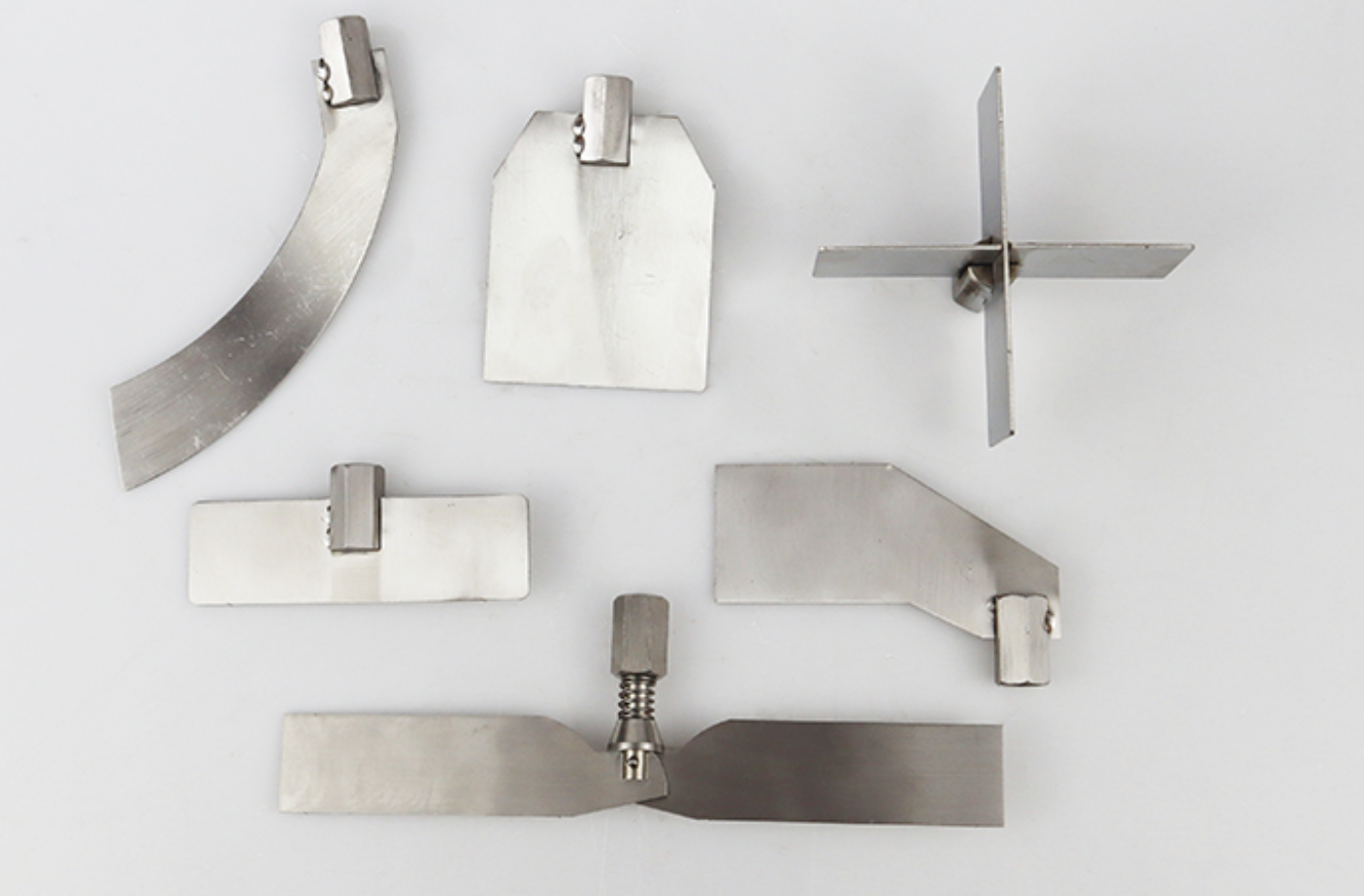

The device uses a rotating paddle driven by a motor. When material reaches the paddle, the rotation is blocked and the internal mechanism triggers a switching signal.
This simple and robust design makes the rotary paddle level switch widely used in industrial bulk material handling systems.
Working Principle
The rotary paddle level switch operates through a motor-driven paddle that rotates continuously when no material is present. When the material level rises and covers the paddle, the rotation is stopped.

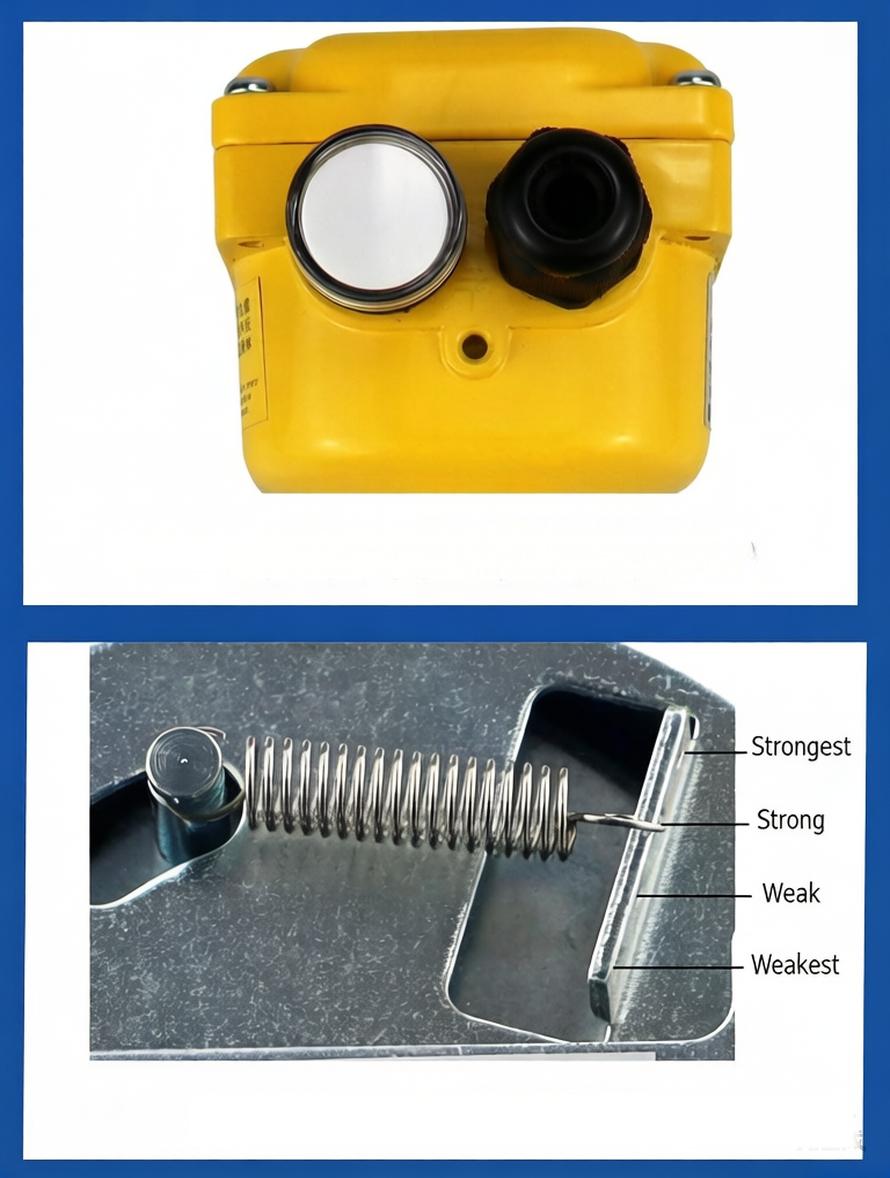

This mechanical resistance activates a switch inside the device, which generates an electrical output signal for level control, alarms, or process automation systems.
Technical Characteristics
Simple Structure
Mechanical design ensures stable and reliable performance.
Strong Durability
Designed for long-term operation in harsh environments.
Easy Installation

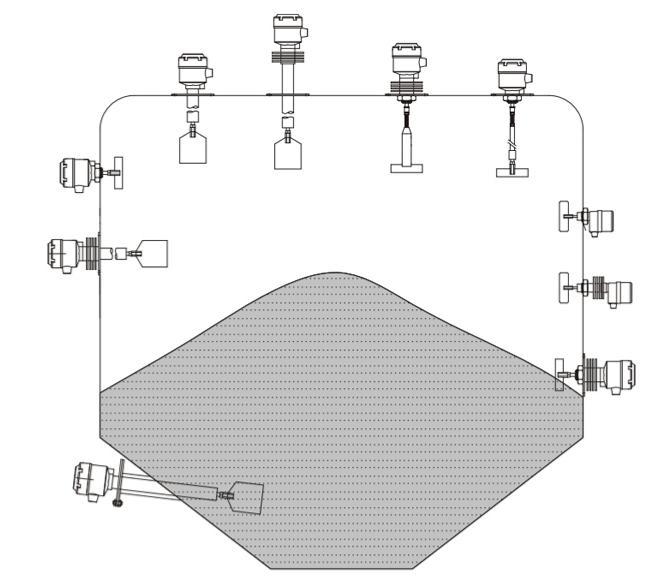

Flexible mounting options for different storage vessels.
Wide Application Range
Suitable for many types of bulk solid materials.
Typical Applications
Cement Industry
Material level detection in cement storage silos.
Grain Processing
Level monitoring for grain bins and storage tanks.
Chemical Industry
Bulk powder level detection in process vessels.
Bulk Material Storage
Suitable for sand, coal, plastic pellets and other materials.
Technical Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 220VAC |

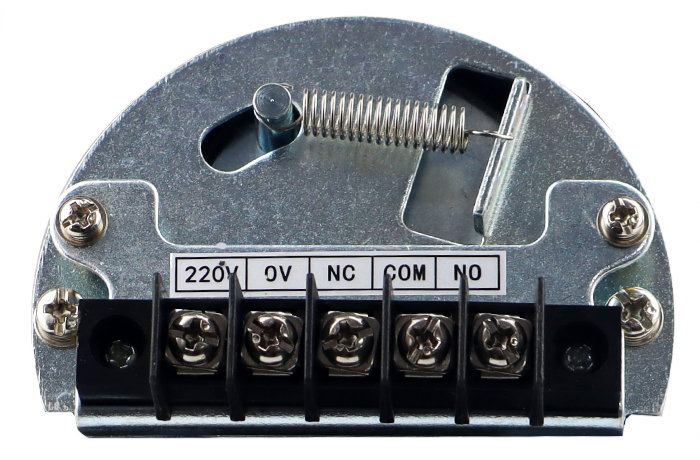

| Output Signal | Relay Output 5A / 250VAC |
| Operating Temperature | -20°C ~ 80°C |
| Working Pressure | 1MPa |
| Process Connection | Thread / Flange |
| Housing Material | Aluminum Alloy |
