Working Principle

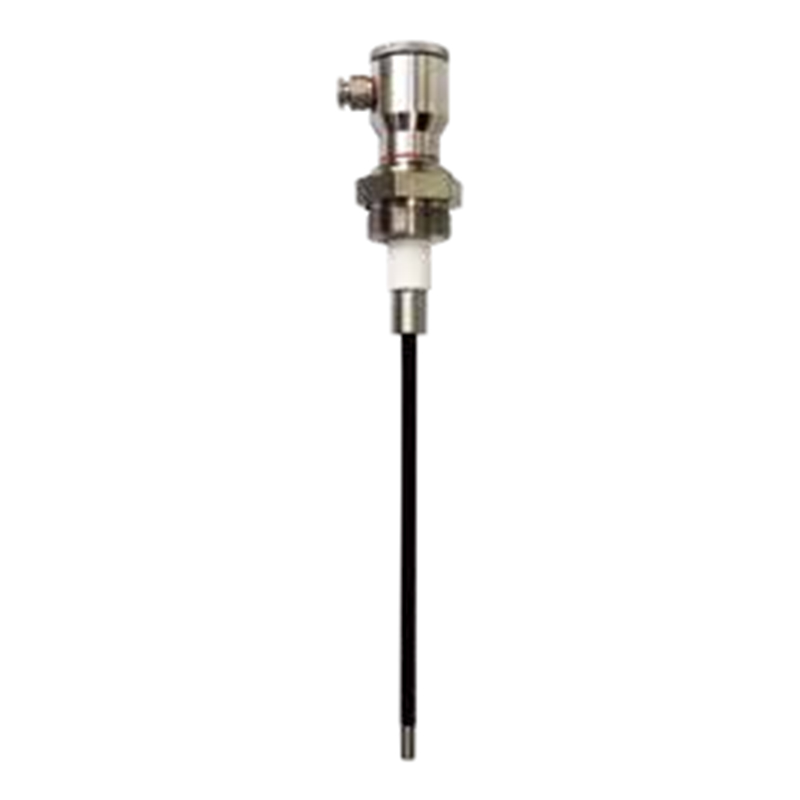

The SHE Series Electrode Type Liquid Level Switch is suitable for conductive liquids and works together with a controller. When the conductive liquid does not contact the electrode rod, there is no current between the electrode rods. When the conductive liquid reaches the electrode rod, the weak current supplied to the rod passes through the liquid to the controller, and the controller then actuates the control signal. This working method allows the product to be used for long-term liquid level control and alarm applications.
Technical Characteristics
The controller has a compact appearance and is suitable for installation inside a control cabinet.
The electrode rod uses industrial-grade material with durable structure.
The rod length can be freely combined according to application needs.
It can be used for local liquid level control or alarm.
The modular design is convenient for different point-level control tasks.
Technical Parameter
| Signal Output | SPST |
| Body Tube Material | SUS304 |
| Operating Temperature | -20~80°C |
| High Temperature Type | Max 200°C |
| Working Pressure | 1.0MPa |
| Connection Form | Screw / Flange / Clamp |

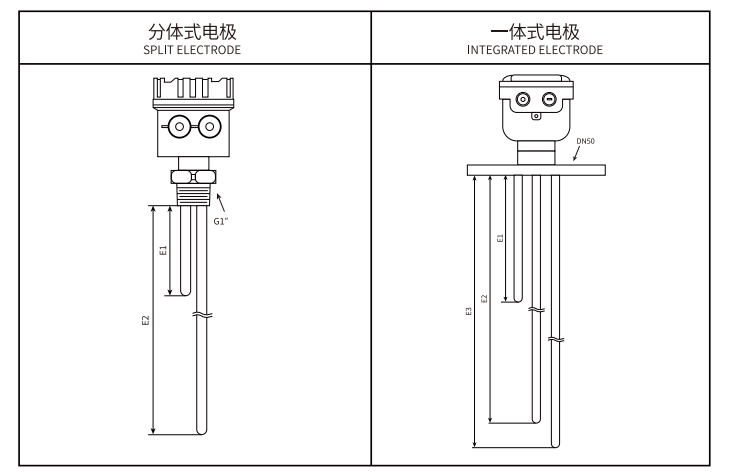

| Size | Depends On The Number Of Controlled Liquid Levels |

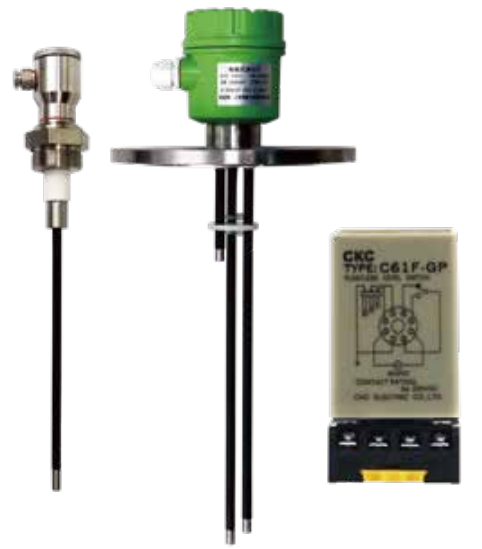

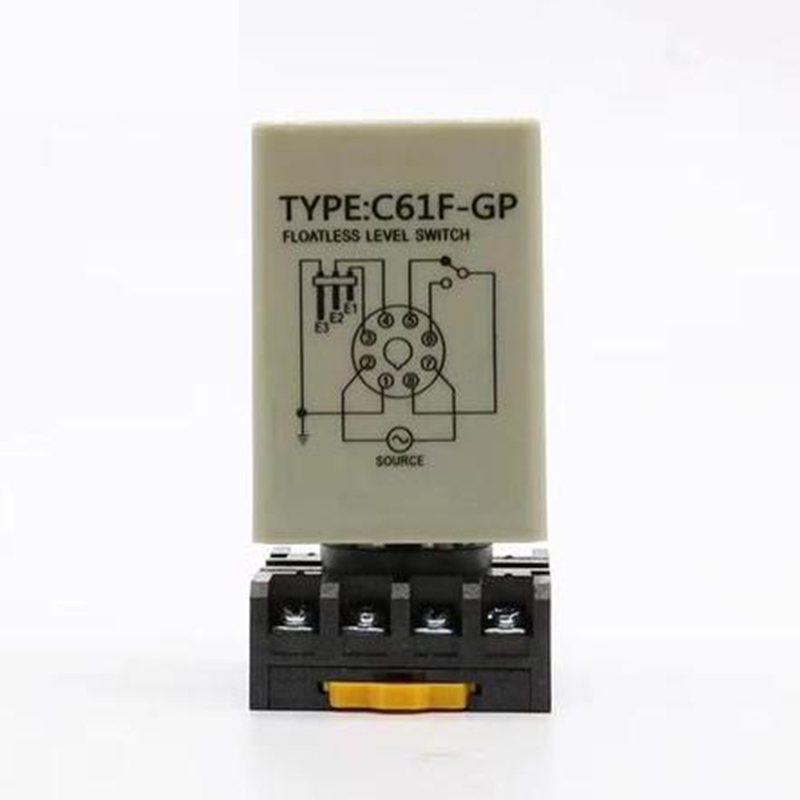

Modular Controller
| Supply Voltage | 220VAC / 24VDC |
| Contact Capacity | SPST |
| Installation | Standard DIN Card Rail |
| Control Mode | One Controller For One Level Point |
| Multi-Point Control | Multiple Controllers Required |
| Wiring | Controller Common Terminal Connected To Electrode Rod |
Typical Application
Conductive Liquid Level Control
Tank Level Alarm Systems
Control Cabinet Integrated Systems
Multi-Point Liquid Level Detection
Industrial Water Level Monitoring
Process Liquid Control Applications
Product Type

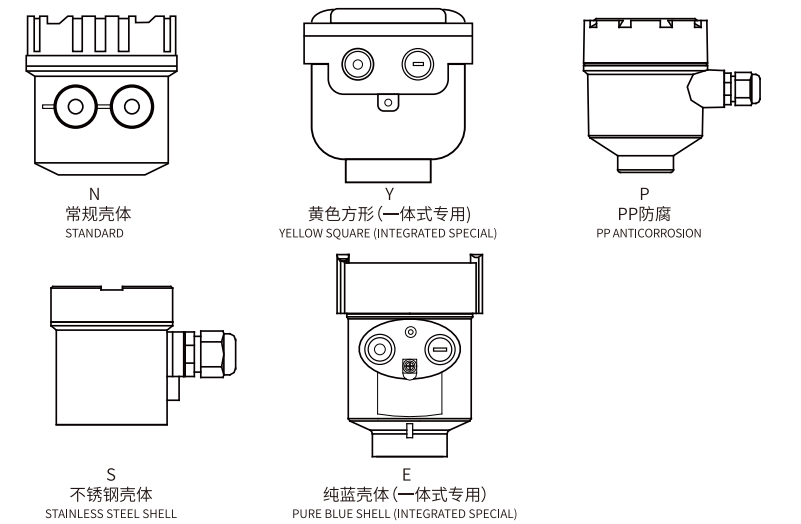

Junction Box Specification

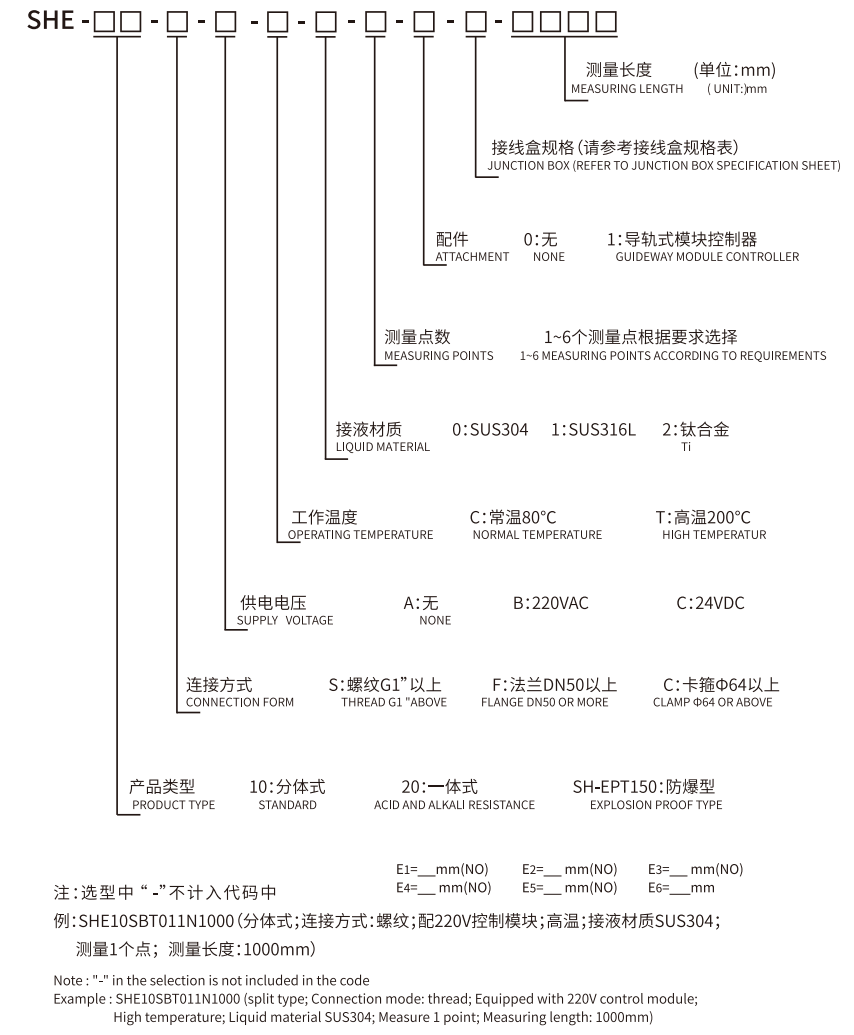

Product Selectiom Table
